7.8. MODEL NO. 1 – CAST IRON RADIATORS
Verified on: KALOR 500/110, manufacturer: ŽDB GROUP a.s., plant Viadrus

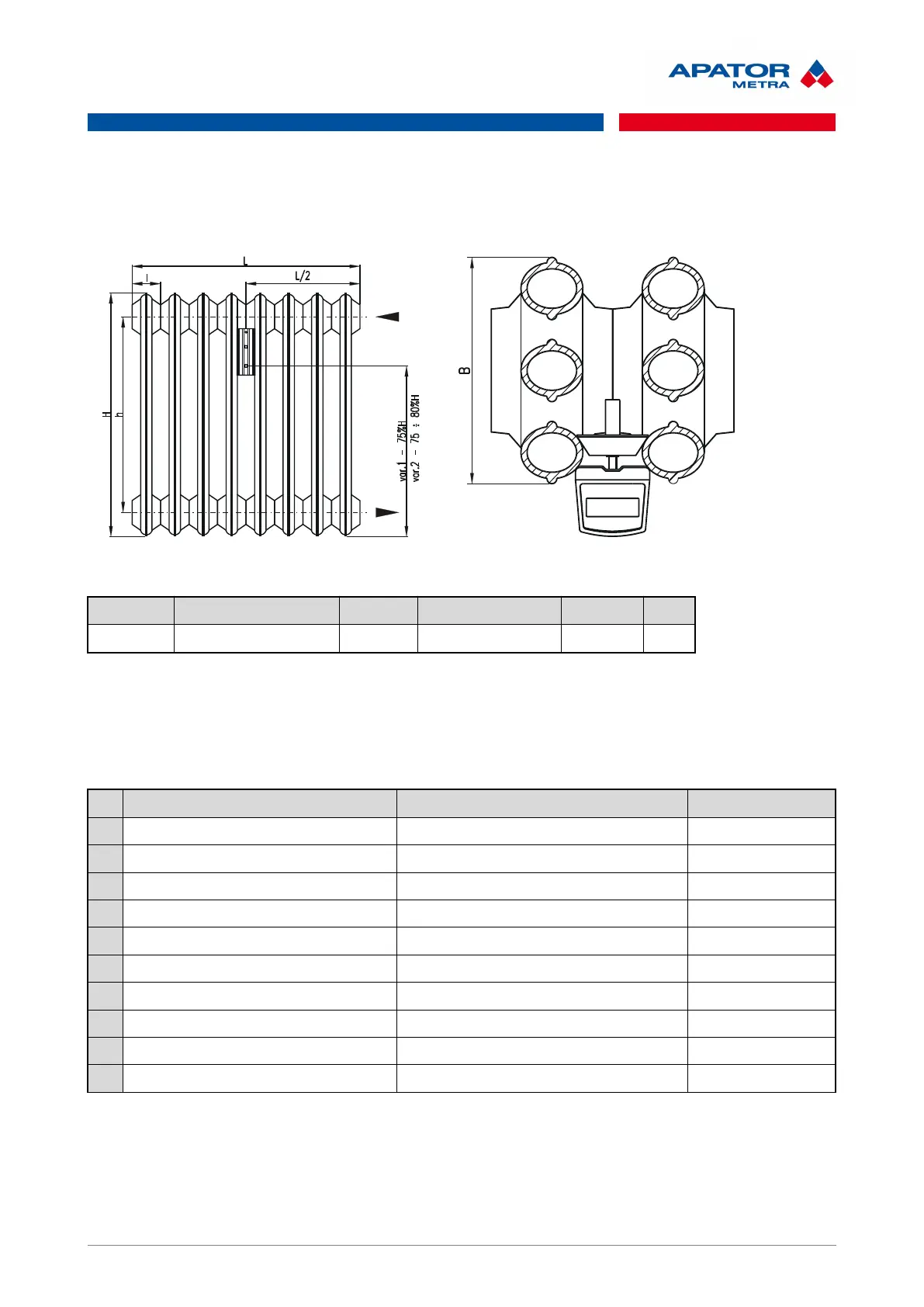

Basic dimensions of the KALOR – 500x110 for 10 segments, data for correct allocator installation (mm):
Height – H Mounting distance - h Length- L Segment length - l Depth - B MM
580 500 600 60 110 0001
Heat output Q
N
[W] of the KALOR radiators can be found in manufacturer catalogue: ŽDB GROUP a.s., plant
VIADRUS, Bezručova 300, 735 93 BOHUMÍN
Table 12: Types of heating elements belonging to the model group 1
Type of the radiator Manufacturer of the radiator MM
1 KALOR 1 ŽDB GROUP a.s., plant VIADRUS 0001
2 Slávia 500,1000/100 ŽDB 0004
3 Slávia 500,600,1000/150 ŽDB 0004
4 Slávia 300,500,600,1000/200 ŽDB 0004
5 Slávia 300,500,600,1000/250 ŽDB 0004
6 500/150 KUVAL s.r.o Kralovice 0008
7
8
9
10
