E-ITN 30

Installation and service manual M2019/01a [EN]

7.6. INSTALLATION ON PANEL RADIATORS

1 Allocator body 5 Nut M3 spec.

2 Back plate 6 Bolt M3x6

3 Spacer 7 Bolt M3x10

4 Washer 4 ČSN 02 1746.25 8 Bolt M3x12

7.6.1. Description of installation

E-ITN 30 back plate should be installed on the panel radiators with two welded bolts thread M3 and

special nuts as follows:

• mark the place for both welding bolts on the radiator,

• remove the paint within the diameter of 10 mm on the marked places,

• weld the bolts to the radiator with two-head welding pistol,

• if one-head welding pistol is used, second bolt have to be in distance 39±1 mm towards the upper

edge of the radiator, remove the paint within the diameter of 10 mm on the marked place,

• attach back plate to the bolts and than to the radiator, screw the nuts to the bolts with socket wrench

M7,

26 / 46

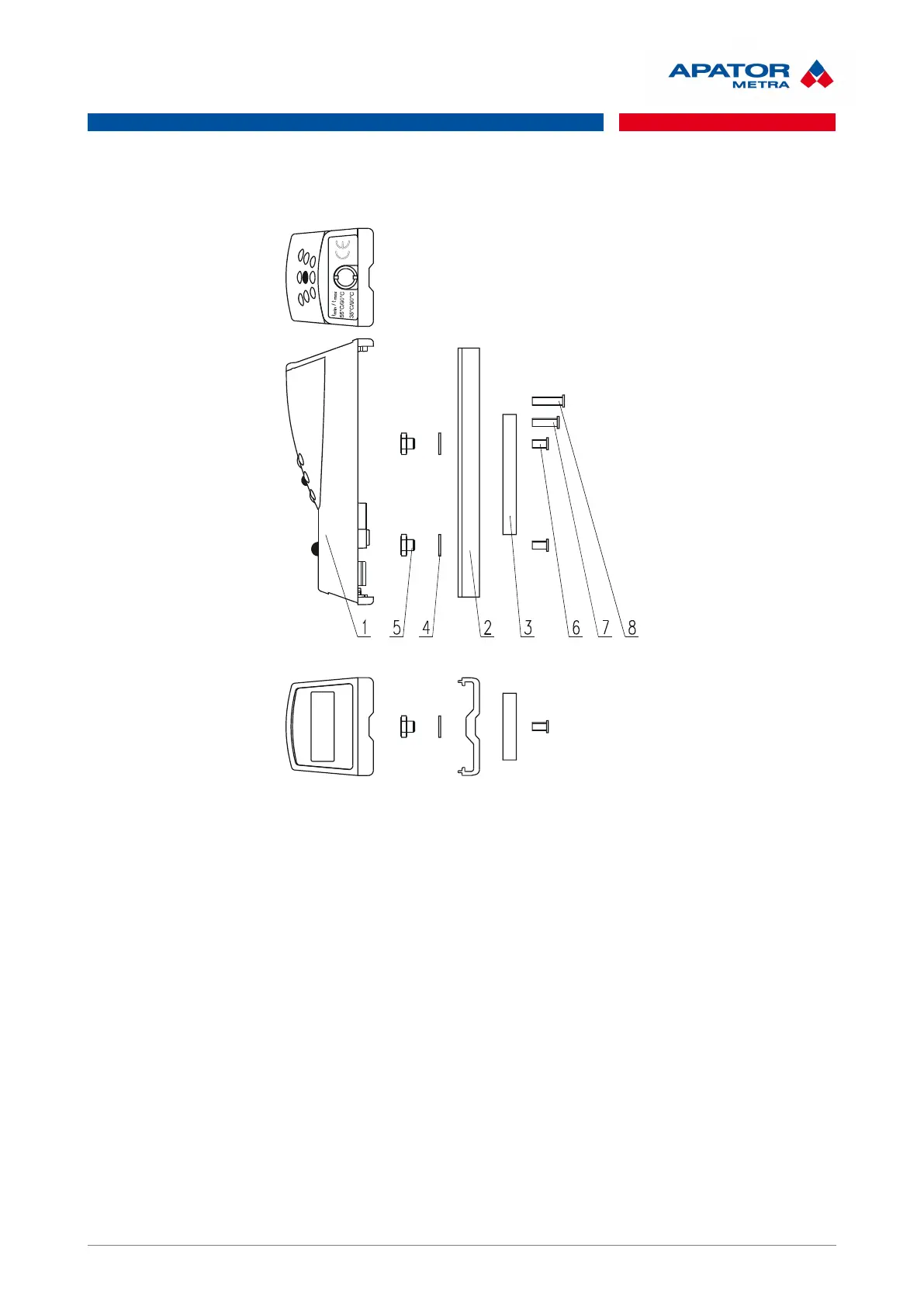

Illustration 9: E-ITN 30 Mounting material for panel

radiators
