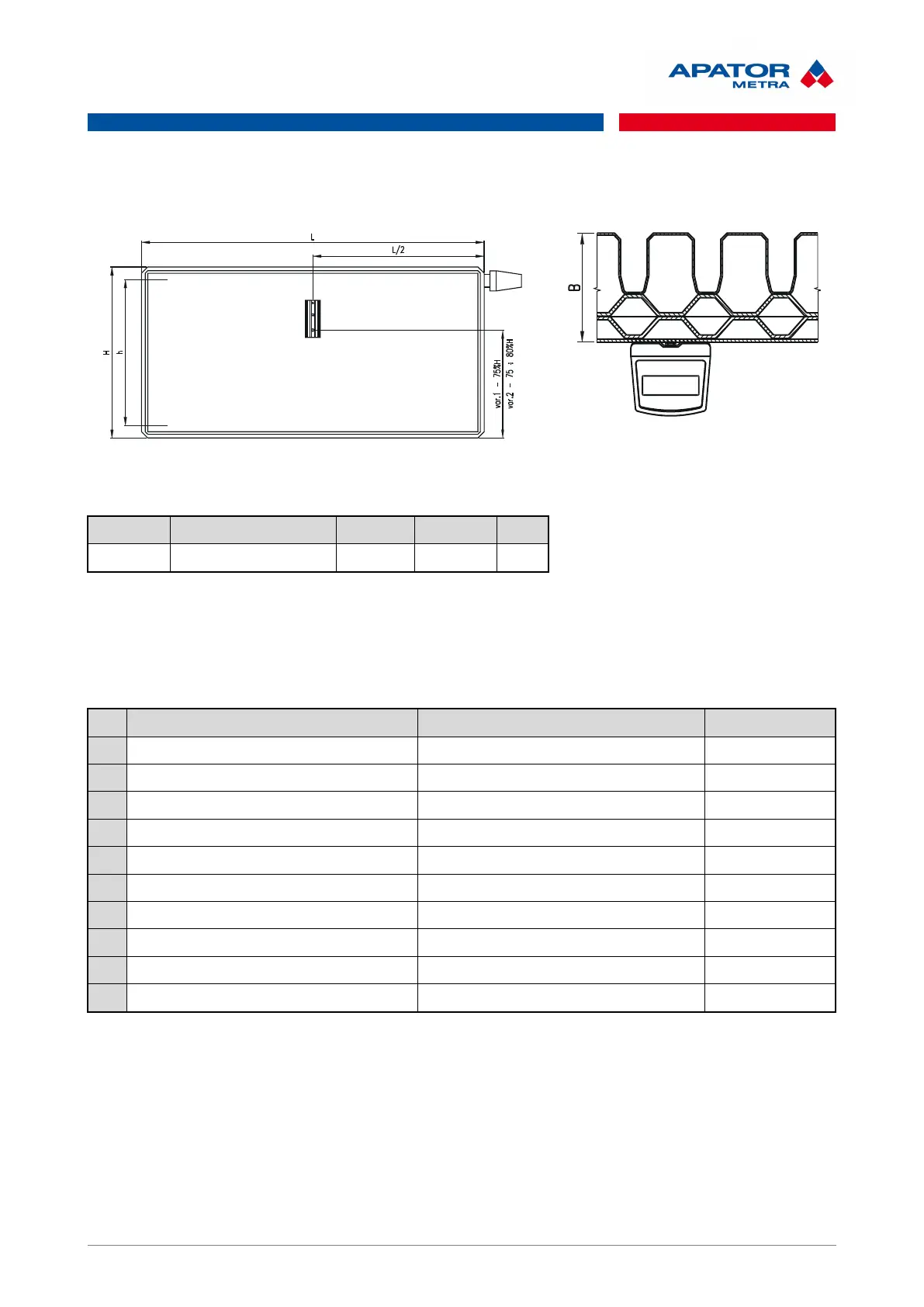

7.14. MODEL NO. 7 – PANEL RADIATORS WITH A FLAT FRONT PANEL
Verified on: RADIK PLAN, VENTIL KOMPAKT mod, type 11, manufacturer : KORADO, a.s. Česká Třebová
Basic dimensions of the RADIK, VENTIL KOMPAKT modification, type 11 PLAN VK and data for correct
allocator installation (mm):
Height - H Mounting distance - h Length- L Depth - B MM
600 546 1200 65 0052
Heat output Q
N
[W] of the RADIK radiator can be found in manufacturer catalogue: KORADO, a.s. Česká
Třebová, Bratří Hubálků 869, 560 02 ČESKÁ TŘEBOVÁ
Table 18: Types of heating elements belonging to the model group 7
Type of the radiator Manufacturer of the radiator MM
1 RADIK Plan Klasik,VK, VKL,Hygiene Korado a.s. Č.Třebová 0052
2 Piano-Universalkompakt Brugman ( JAM Praha) 0052
3 Plan Kermi 0052
4 Plan-Ventil, Duo Finesse Purmo - DiaNorm 0052
5 Purmo Plan Rettig-Heating Sp. z o.o. 0052
6 Radson Planora Radson 0052
7
8
9
10
