Apator Metra E-ITN 30 - Model No. 3 - Cast Iron Radiators with Distance Pad

E-ITN 30
Installation and service manual M2019/01a [EN]
7.10. MODEL NO. 3 – CAST IRON RADIATORS WITH DISTANCE PAD
Verified on S-130, manufacturer: Romania

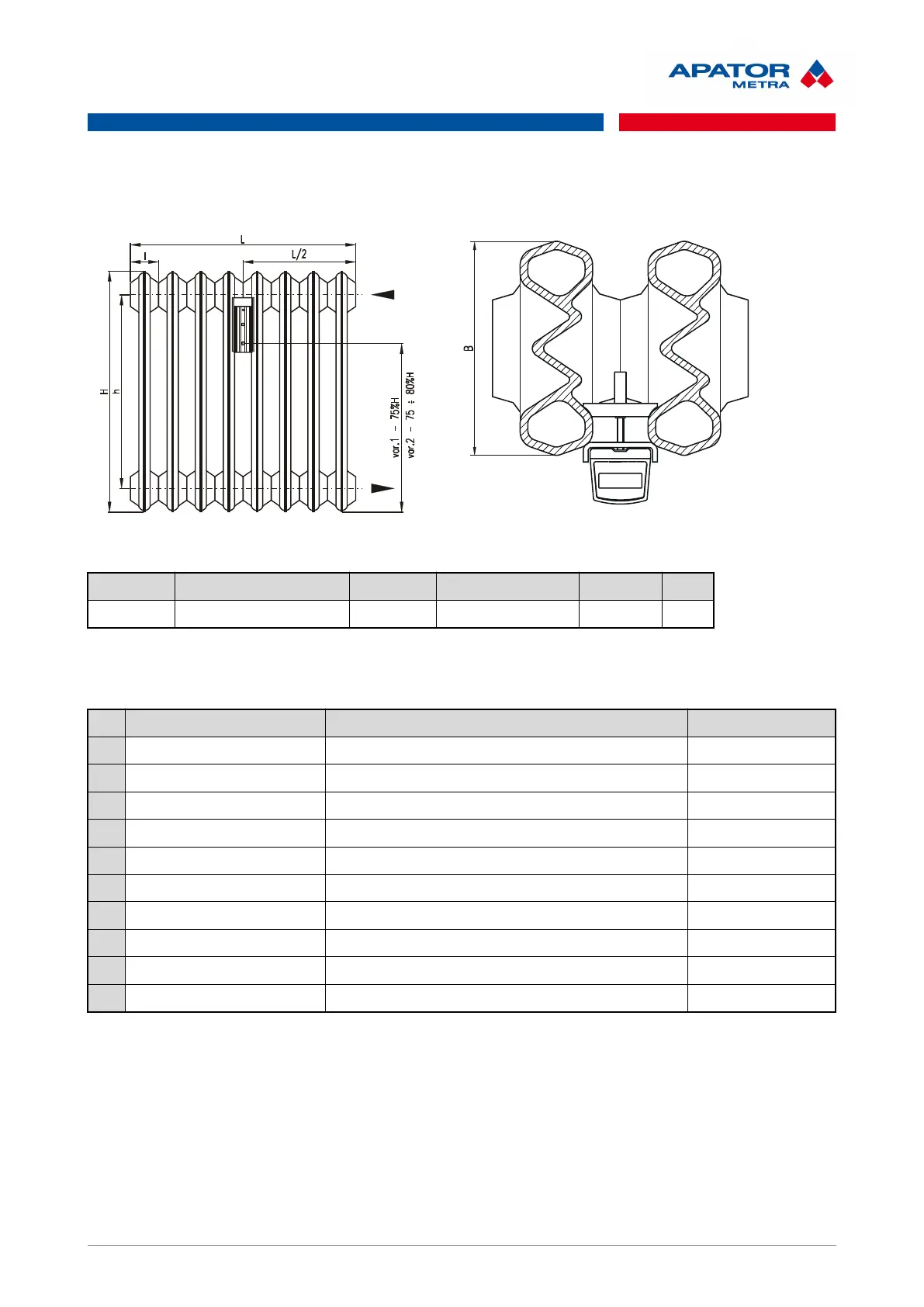

Basic dimensions of the S-130 for 10 segments, data for correct allocator installation (mm):
Height - H Montanan distance – h Length - L Segment length - l Depth - B MM
580 500 890 80 130 0002
Table 14: Types of heating elements belonging to the model group 3
Type of the radiator Manufacturer of the radiator MM
1
2
3
4
5
6
7
8
9
10
