E-ITN 30

Installation and service manual M2019/01a [EN]

7.7. INSTALLATION ON HORIZONTAL AND VERTICAL REGISTERS

1 Allocator body 4 Spacer - register for ø 30 to 110 mm

2 Back plate 5 Bolt M3x6

3 Nut M3 6 Bolt M4x8

7.7.1. Installation description

E-ITN 30 back plate should be installed on the tubular radiators with spacer, welded bolt M3x6 and nut M3,

and two bolt M4x8:

• mark the place for welding bolt on the radiator,

• remove the paint within the diameter of 10 mm on the marked place to see metal surface,

• weld bolt M3x6 onto the register pipes with a one-head welding pistol,

• place the spacer on the bolts tighten to a pipe that front surface is always perpendicularly to the

ground,

• screw the back plate in vertical position to the spacer with two bolts M4 (pos. 6),

• place the allocator into the back plate profile groove from top, align it with the base plate and push

allocator to connect it with the back plate.

28 / 46

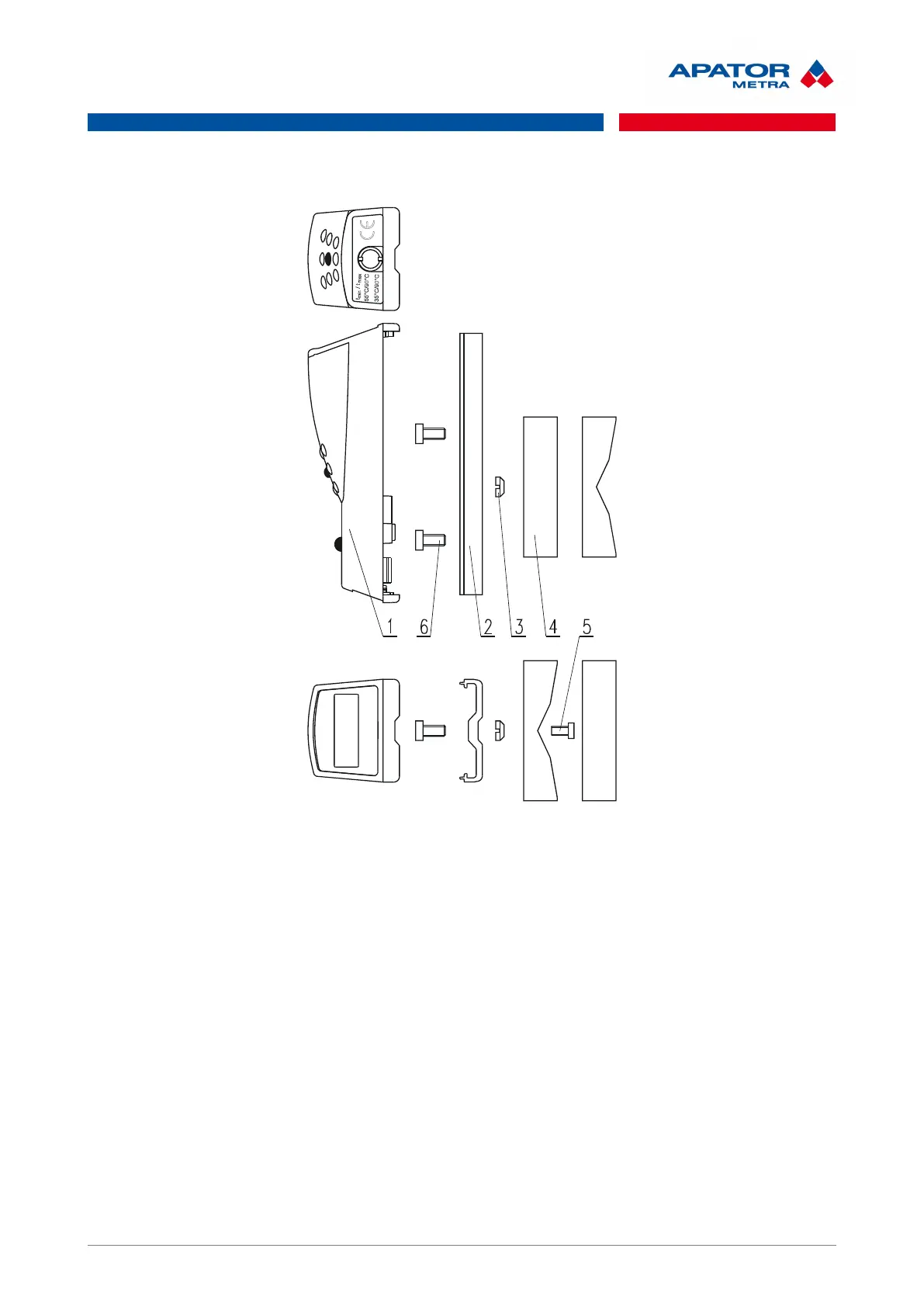

Illustration 10: E-ITN 30 Mounting material

for tubular radiators
