E-ITN 30

Installation and service manual M2019/01a [EN]

7.5. INSTALLATION ON SEGMENTED RADIATORS

1 Allocator body 8 Bolt M4x25

2 Back plate 9 Bolt M4x35

3 Spacer 45 10 Bolt M4x50

4 Clamp 11 Bolt M4x80

5 Clamp III 12 Bolt M4x115

6 Clamp IV 13 Nut M3 spec.

7 Washer 4 ČSN 02 1746.25 14 Clamp FONAL

7.5.1. Description of installation

E-ITN 30 back plate should be installed on the radiator with clamps and bolts as follows:

• place back plate into the final location and fix with clamp and bolt through the centre hole,

• tighten to a torque 1 Nm,

• place the allocator into the back plate profile groove from top, align it with the base plate and push

allocator to connect it with the back plate.

24 / 46

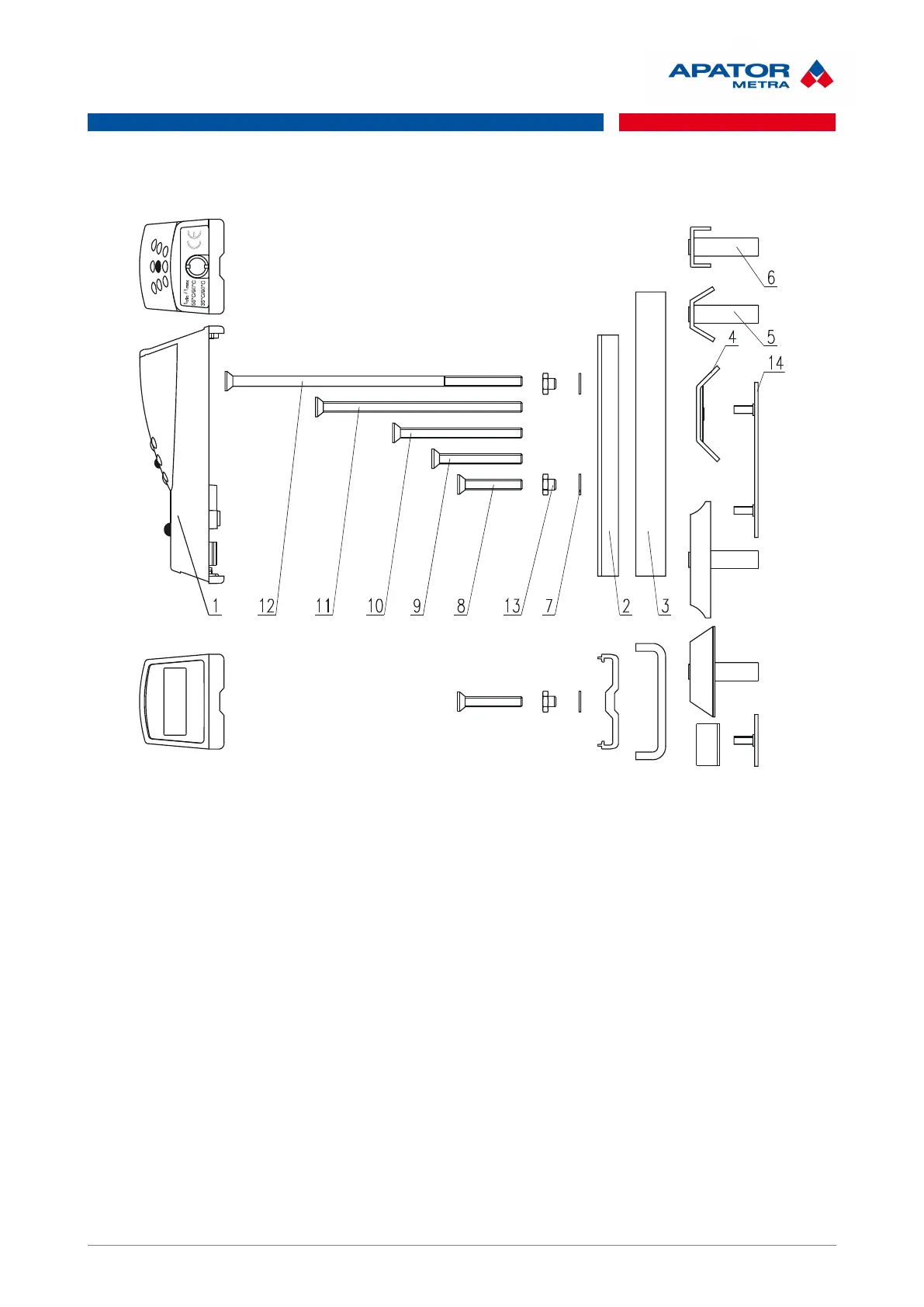

Illustration 8: E-ITN 30 Mounting material for segmented radiators
