7.9. MODEL NO. 2 – CAST IRON RADIATORS WITH FLAT VERTICAL FRONT PANEL
Verified on: KALOR 3, manufacturer: ŽDB GROUP a.s. , plant Viadrus

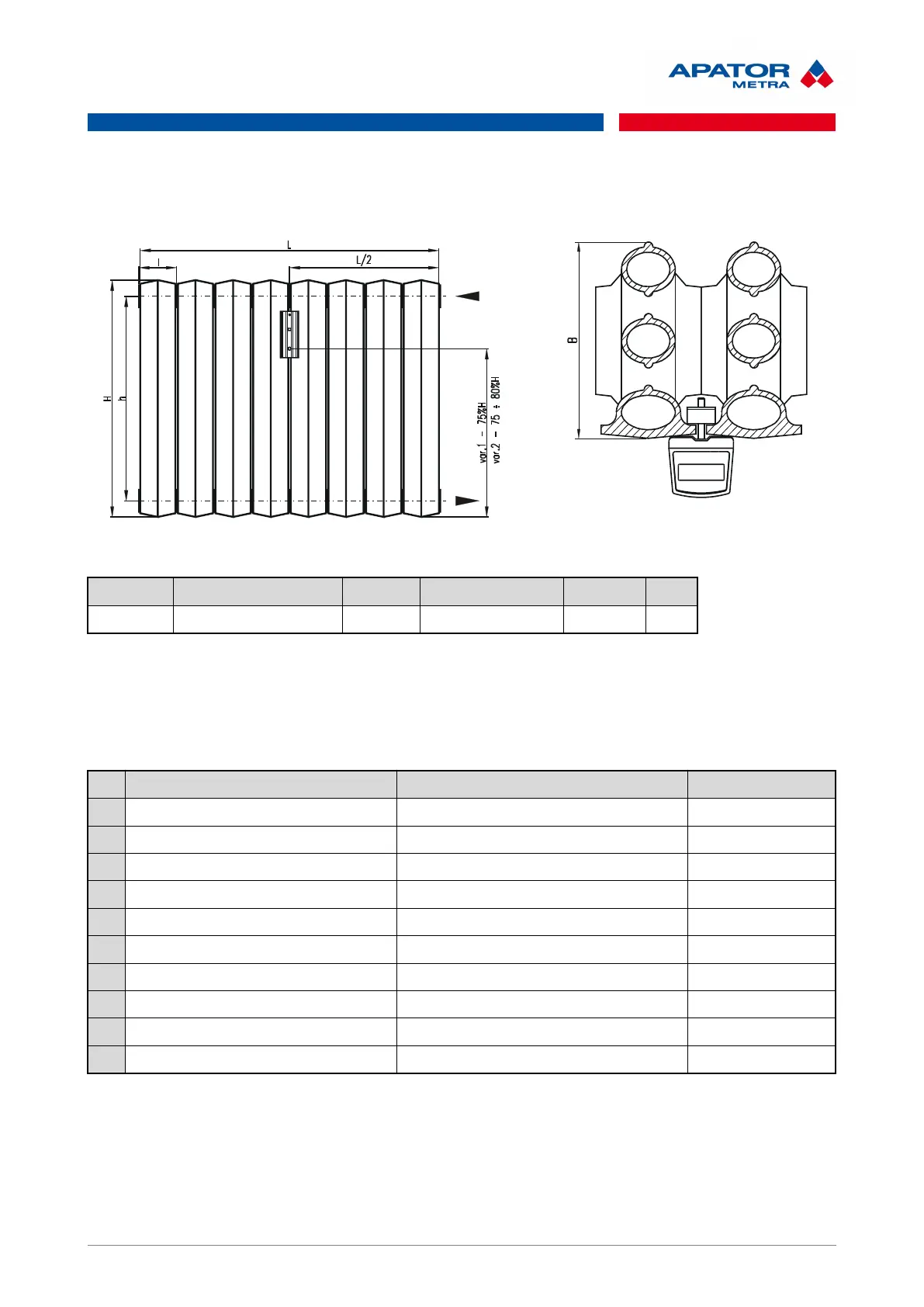

Basic dimensions of the KALOR 3 for 10 segments, data for correct allocator installation (mm):
Length - H Mounting distance – h Length- L Segment length - l Depth - B MM
580 500 600 60 110 0006
Heat output Q
N
[W] of the KALOR 3 radiator can be found in manufacturer catalogue: ŽDB GROUP a.s.,
plant VIADRUS, Bezručova 300, 735 93 BOHUMÍN
Table 13: Types of heating elements belonging to the model group 2
Type of the radiator Manufacturer of the radiator MM
1 THERMO ŽDB a.s., plant VIADRUS 0006
2
3
4
5
6
7
8
9
10
32 / 46
