Apator Metra E-ITN 30 Installation And Service Manual

E-ITN 30
Installation and service manual M2019/01a [EN]

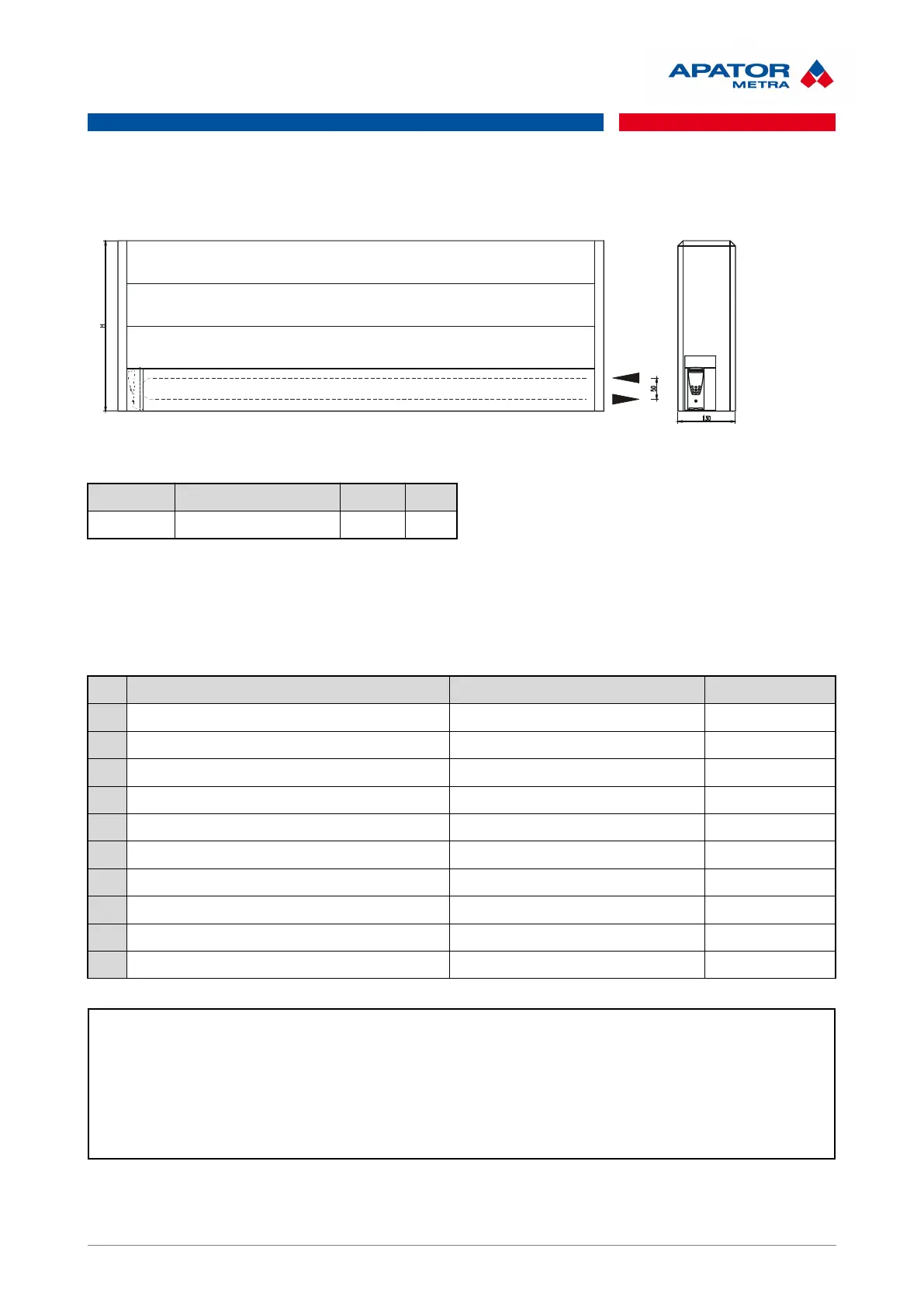

7.20. MODEL NO. 13 – RADIATOR JAGA TEMPO
Verified on: TEMF.040/110/10, manufacturer: JAGA N. V. , Čsl. armády 325, 253 01 Hostivice
Basic dimensions of the TEMF.040/110/10 radiator and data for correct allocator installation (mm):
Height - H Mounting distance - h Length MM
400 50 1100 0010
Heat output Q
N
[W] of the radiator can be found in manufacturer catalogue: JAGA N. V., Čsl. armády 325,
253 01 Hostivice
Table 23: Types of heating elements belonging to the model group 13
Type of the radiator Manufacturer of the radiator MM
1 Type 10 a type 11 JAGA N.V. 0010
2
3
4
5
6
7
8
9
10
Warning!
Allocators E-ITN 30 designed for installation to JAGA Tempo radiators include a back plates with a
different distance of the mounting holes (Illustration 6: Back plate for JAGA Tempo radiators).
Please pay attention to use right back plate.
Copper mounting plate used for allocator installation is provided by radiator manufacturer as a part
of the radiator. Installation material supplied by the manufacturer serves only to fit back plate to
mounting plate.
43 / 46
