7.16. MODEL NO. 9 – TUBULAR RADIATORS – LADDER WITH OVAL BASE
Verified on: KDO 750/1640, manufacturer: Thermal – trend, s.r.o.

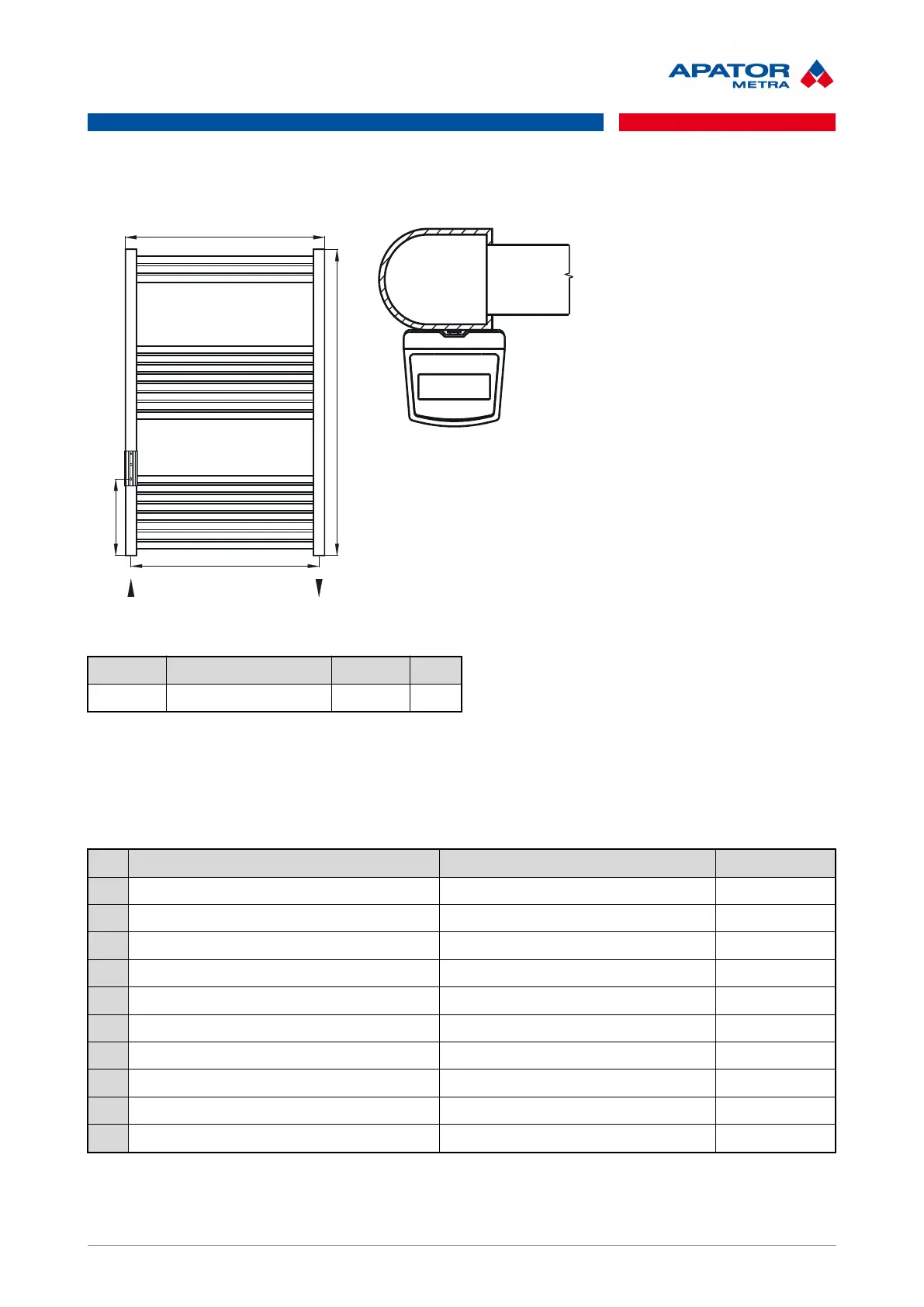

Basic dimensions of the K 750/1640 radiator and data for correct allocator installation (mm):
Height-H Mounting distance - h Lenght-L MM
1680 708 750 0052
Heat output Q
N
[W] of the K 600/940 radiator can be found in manufacturer catalogue: Thermal – trend, s.r.o.
Starovičky 11, Hustopeče u Brna
Table 20: Types of heating elements belonging to the model group 9
Type of the radiator Manufacturer of the radiator MM
1 KDO Thermal – trend, s.r.o. 0052
2
3
4
5
6
7
8
9
10
39 / 46
h
H
L
25%H
