Apogee symphony i/o mk II User Manual

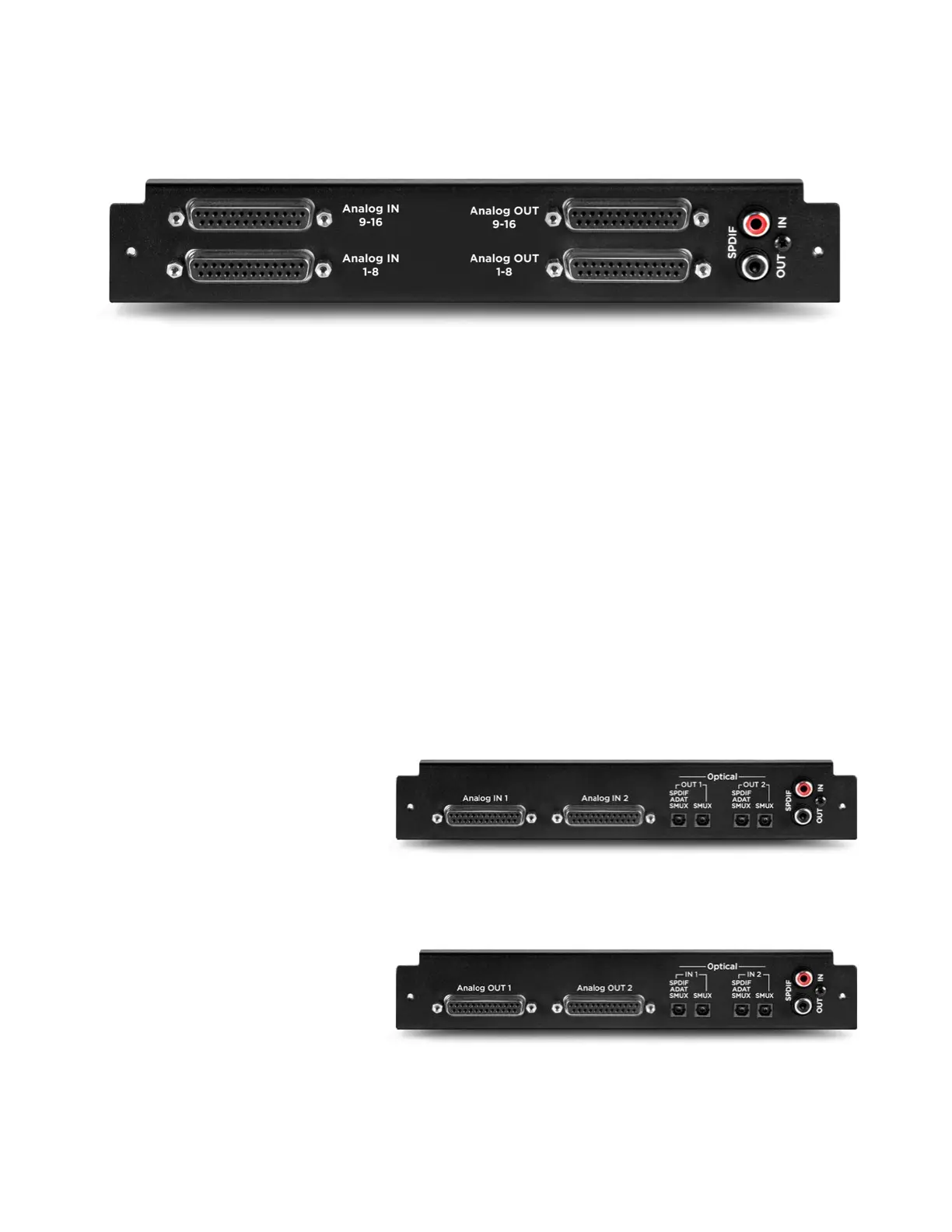

16x16 Analog IO Module
Provides 16 channels of analog input and output.
Digital Coaxial RCA S/PDIF ports are also provided.
-
SPDIF IN replaces a pair of analog or digital audio inputs. Routing of the S/PDIF input is set with the S/PDIF
Replaces drop down menu, found in the Symphony Control Software’s Device Sidebar.
-
SPDIF OUT will duplicate any pair of analog or digital audio outputs. Routing of the S/PDIF Output is set with the S/
PDIF Mirrors drop down menu, found in the Symphony Control Software’s Device Sidebar.
Incompatible Original Cards
The following cards cannot be installed into a Symphony I/O Mk II chassis:
16 Analog In + 16 Digital Out (A16 IP)
16 Analog Out + 16 Digital In (A16 OP)
Symphony I/O Mk II - User's Guide Page 12
