Apogee symphony i/o mk II User Manual

Control - Hardware Remote

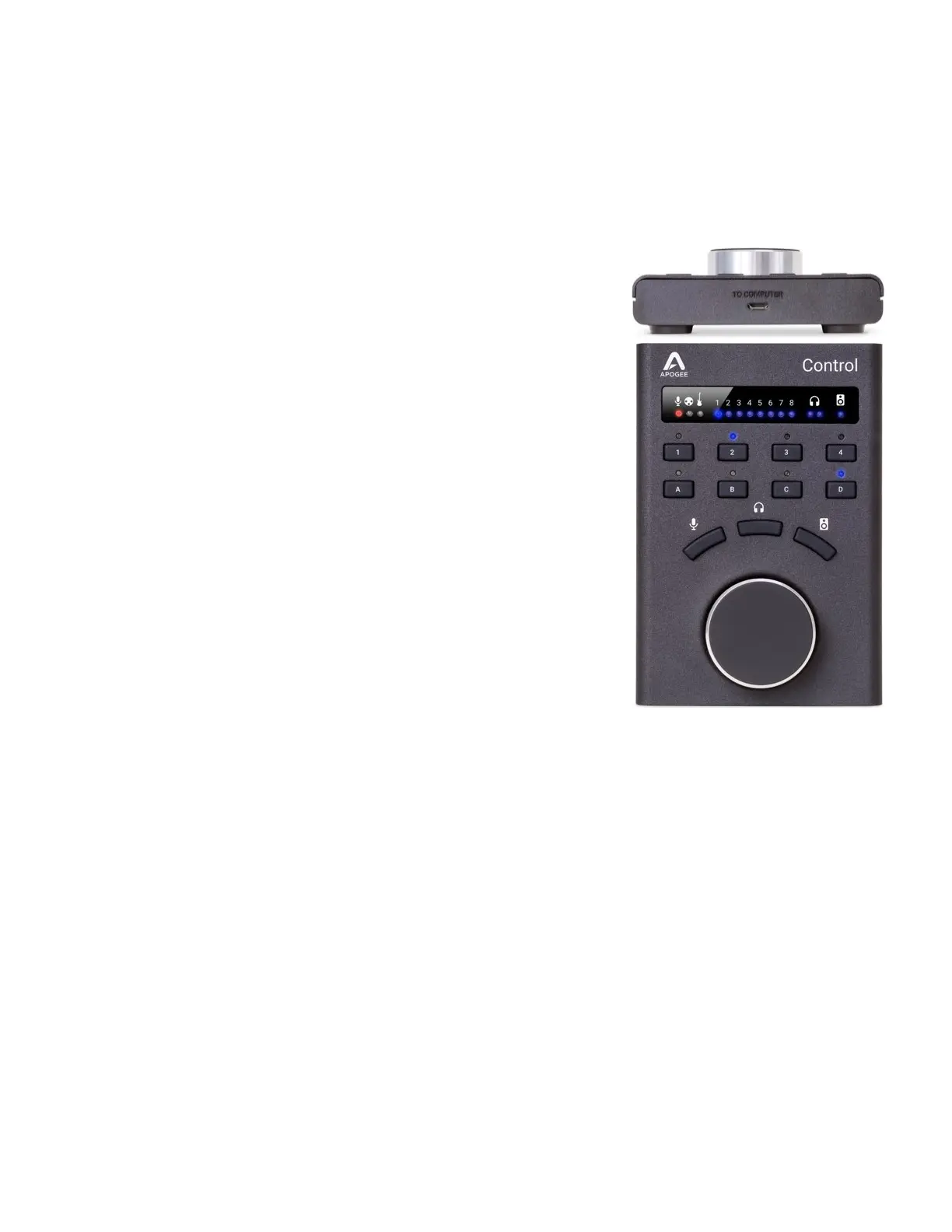

This programmable control surface is used to adjust settings and parameters of your Symphony I/O Mk II Thunderbolt.
For a full list of programmable features, see the Control Remote Assignments section of the Symphony Control
Software section on page 39.
To C ompu t er ! - Micro USB port for connecting to your computer.
!!Use a standard USB-A to USB-MICRO-B cable
Display Indicators - Shows currently selected input, the input type, as well
as the output selection.
Assignable Buttons - Performs the assigned function. Any function can be
assigned to any button via the Symphony Control software (pg 39)
The factory default assignments are:!
1 - Clear Meters
2 - Dim Speakers
3 - Toggle Spkr Sets
4 - Toggle Main Source
A - Launch Symphony I/O Control
B - Mono Speakers
C - Set Main Out to Reference
D - Momentary Talkback!
Microphone button
-
One push focuses the knob on adjusting the input gain level
-
Multiple presses cycles through the input channels
Headphone button
- One push focuses the knob on adjusting the headphones volume level
- Multiple presses cycles through the headphone outputs
Speaker button
-
Focuses the knob on adjusting the speaker volume level
Control Knob
-
Turn to adjust settings
-
Push down to mute all outputs
-
The push button can be assigned to another function via the Symphony Control software (pg 39)!
Symphony I/O Mk II - User's Guide Page 14
