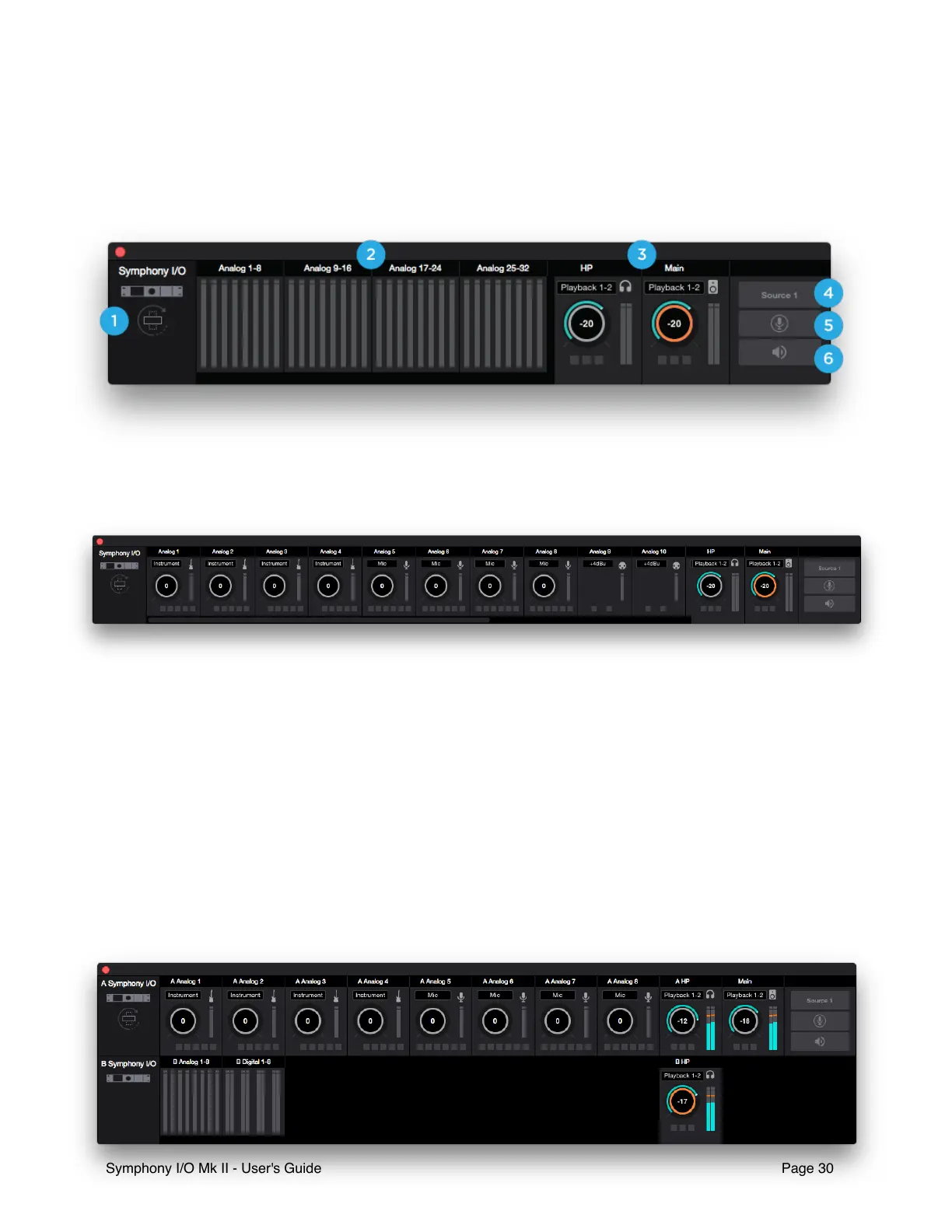

Essentials Window
This window provides simple and compact controls for Input Channels and Monitoring. It’s orientation can be changed
between vertical and horizontal so that it can be placed to the side or end of your recording software.
1.
Orientation Button - Switches the Essentials window between horizontal and vertical view
2.
Analog Input Channels - Provides settings for the analog inputs.
•
If equipped with the 8 mic pre module card, the Essential Window will show Mic and Instrument preamp
settings as well as +4dBu and -10dBV Line Level options.
-
The buttons at the bottom correspond to the Input Channel Settings: Phantom Power (48V), Soft Limit
(SL), Group (G), Invert Polarity (⌀), Hi-Pass (⦧), and Insert (IN).
3.
Outputs - Headphones and speaker outputs settings are provided.
4.
Main Source Toggle Button - Toggle between two different Main Source settings.
5.
Tal k ba c k - Engages talkback to communicate with artists wearing headphones. Set the Talkback source and
destination in the System Sidebar.
6.
Mute All - Mutes Headphones and Speakers outputs. Set the Talkback sure and destination in the System
Sidebar.
When two chassis are connected together, Inputs and Outputs for both are displayed:
