Configure Complex Standalone Routing using Symphony Control
The unit can be configured as a line-mixer using the Symphony Control software. These settings are then retained
when the Thunderbolt cable is disconnected. This is especially useful with the 2x6 and 16x16 module cards since
there is no 1-to-1 correlation between analog and digital I/O like on the 8x8 module.
1.
Open Symphony Control software and go to the I/O section of the Primary Window.
2.

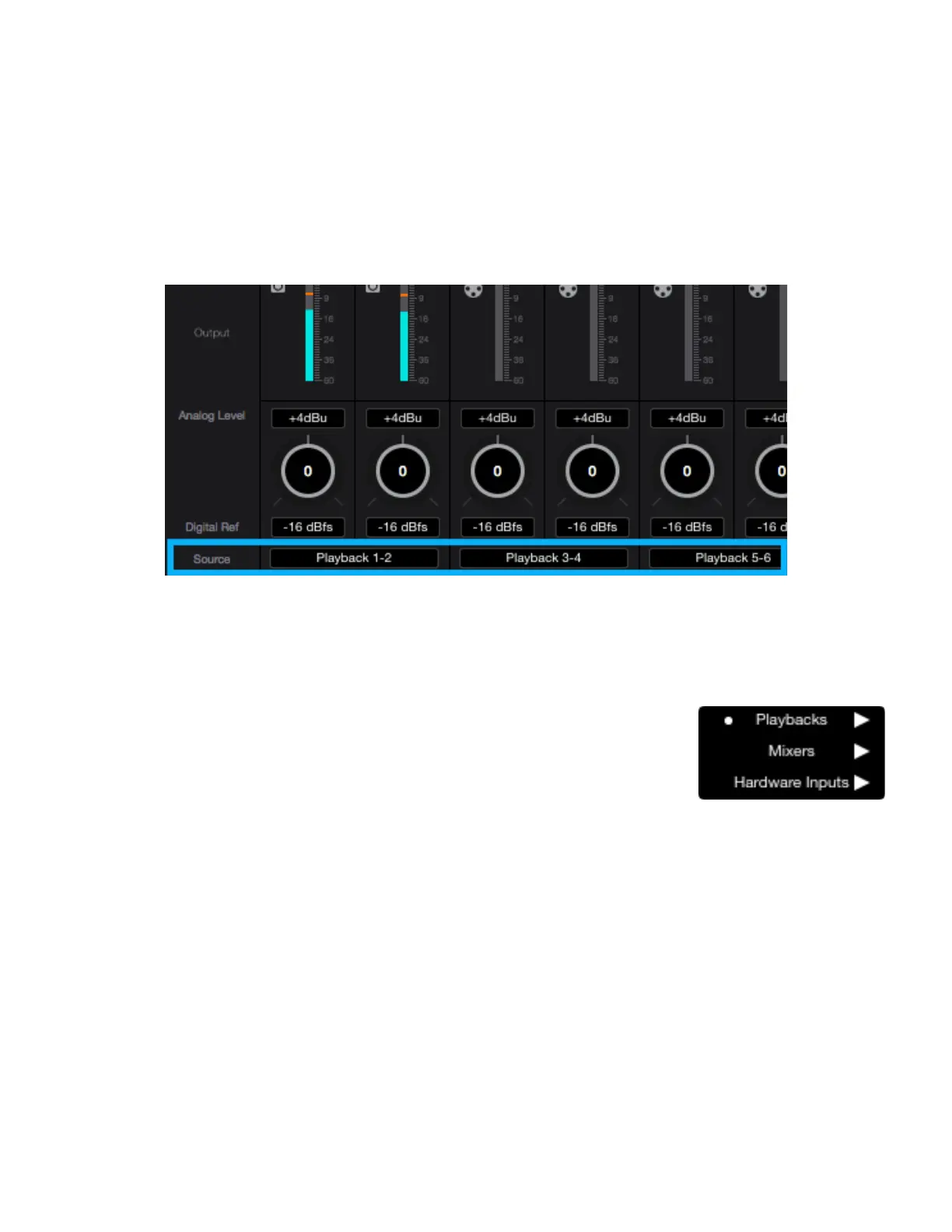

In the Output Section, choose the Source for any pair of analog outputs.
*
Do not choose Playbacks as these come from your Mac computer which won’t be available after disconnecting
the Thunderbolt cable.
•
Mixer - Various inputs can be combined together using one or more of the 4
Symphony Control mixers.
-
In this way, all 16 inputs on the 16x16 module can be mixed and routed to
a single stereo output 1-2.
•
Hardware Inputs - Any input pair can be routed to any Analog Output pair.
-
If you want digital input 5-6 to show up on analog output 1-2, you can
select that here.
Once the desired routing is made, disconnect the Thunderbolt cable and these settings will be retained until they are
changed, the Standalone Routing button is engaged, or the unit is Factory Reset.!
