Clocking with External Equipment
When connecting digital audio cables between Symphony and another digital audio device, a clocking relationship
must also be set. Whether connecting two or more devices, one must be set as the clock master, and all other
devices must be set as clock slaves.Configure Symphony as Clock Master
1.
Open Symphony Control and select the System Sidebar button.
2.

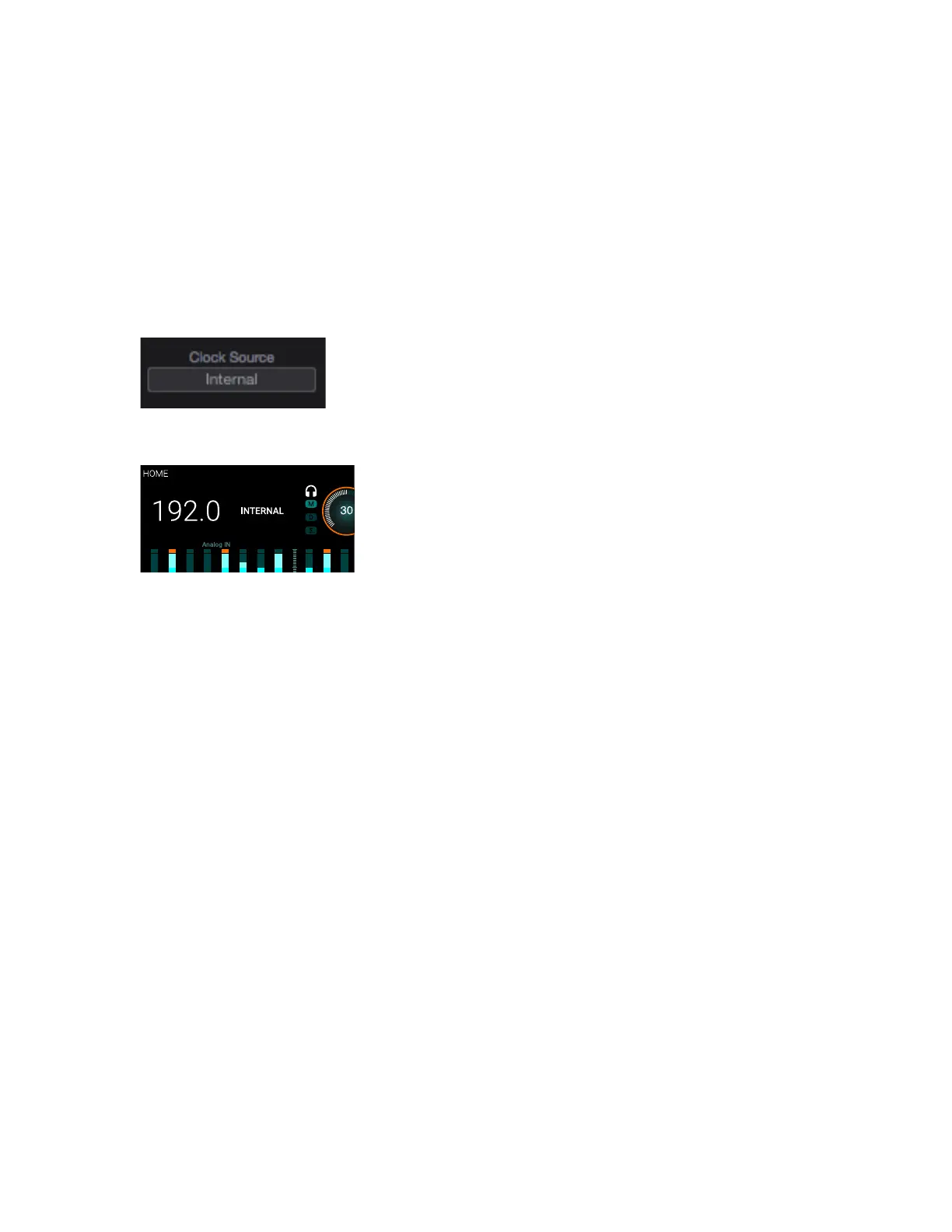

Set Clock Source to “Internal”.
3.
When Symphony is using it’s internal clock, the Home display will show “INTERNAL”.
Clock signal is sent to all of Symphony’s digital audio outputs and BNC Word Clock output.
4.
Connect a digital audio cable (optical or coaxial) out of Symphony and into the external equipment.
Or connect a BNC Word Clock cable from the OUT of Symphony to the IN of the external equipment.
5.
Make the appropriate settings on the external equipment to set it as a slave.
•
The sample rate must match on both devices. Though the Slave device may automatically switch to the
appropriate sample rate, this may not always occur and the sample rate will need to be set manually.
To Next Page
