2.4 Connector System of Measuring Accessory
Warnings
To prevent possible damage, use only accessories and cables supplied by
manufacturer of the Product.
Device uses plastic cylindrical push-pull connectors.
Main advantages of this connector system are:
 quick and easy mating and de-mating
 definite and secure locking mechanism

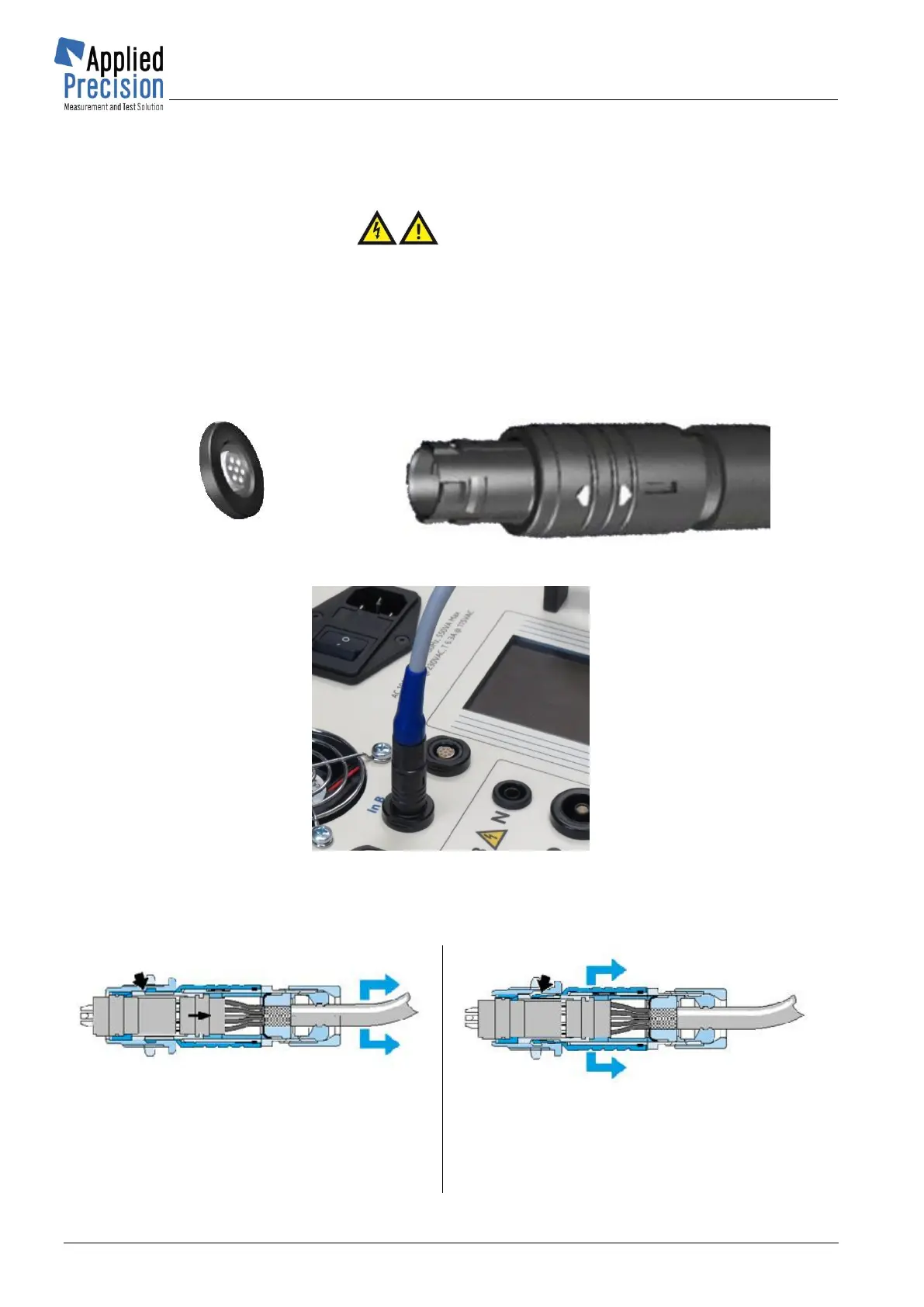

Figure 9 – Receptacle
(socket)

Figure 10 – Plug on the cable of the accessory
Figure 11 – Connected Plug to the socket on the panel
2.4.1 Locking Mechanism
Figure 12 - Pulling on the cable or on the back
nut causes the locking fingers to grip tighter into
the groove inside receptacle (socket). A
separation is virtually impossible.
Figure 13 - Pulling on the outer plug housing
disengages the locking fingers from the
receptacle groove and the connector separates
easily.
