Portable Test Equipment
User’s Guide
www.appliedp.com PTE-UGFW56a-EN
5.8 Databases
The database screens allow viewing, editing, adding and deleting of tested meters, results of tests,
load points and data readouts stored in the internal databases.

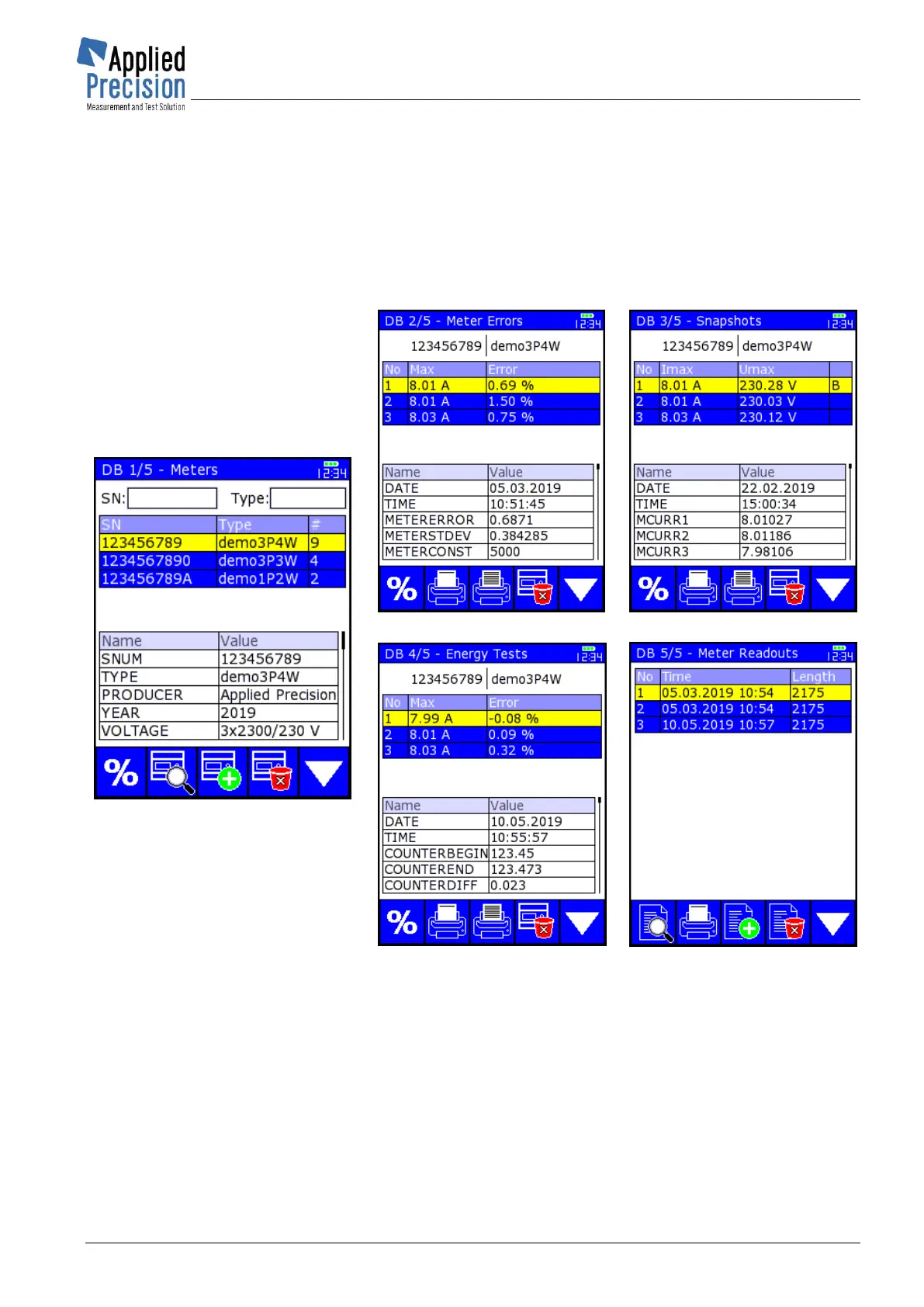

Every meter (shown in DB 1/5) can have stored more measured meter errors (DB 2/5), stored load
point values (DB 3/5), results of Dial tests (DB 4/5) and readouts (DB 5/5).
All test results and load values are always saved together with harmonics and signal shapes.
DB of Meter Readouts
* P15
Navigation in database screens
In screens where more separate tables or components are shown in one page the selection of table is
done by using arrow keys and confirming by OK.
In selected table the items (rows) can be browsed by arrows and page down/up keys. Pressing OK in
any table closes browsing in that table and selects whole table which enables to switch to other part
of the screen. Last selected item in table of meters (DB 1/5) becomes selected meter and is used in
other screens. Selected item in top table is always highlighted with yellow color. Parameters of
selected item are showed in bottom table.
Searching in database of meters
Searching for meter or selection of some group of meters can be done by inputting search string into
one or both searching fields SN (serial number) and TYPE (type of meter) and confirming by OK.
