Applied Precision PTE 2300 Series User Manual

Portable Test Equipment
User’s Guide
www.appliedp.com PTE-UGFW56a-EN
15
2.6.1 General Display Layout
The device is equipped with color 3.5″ TFT LCD display with screens divided into 3 zones:

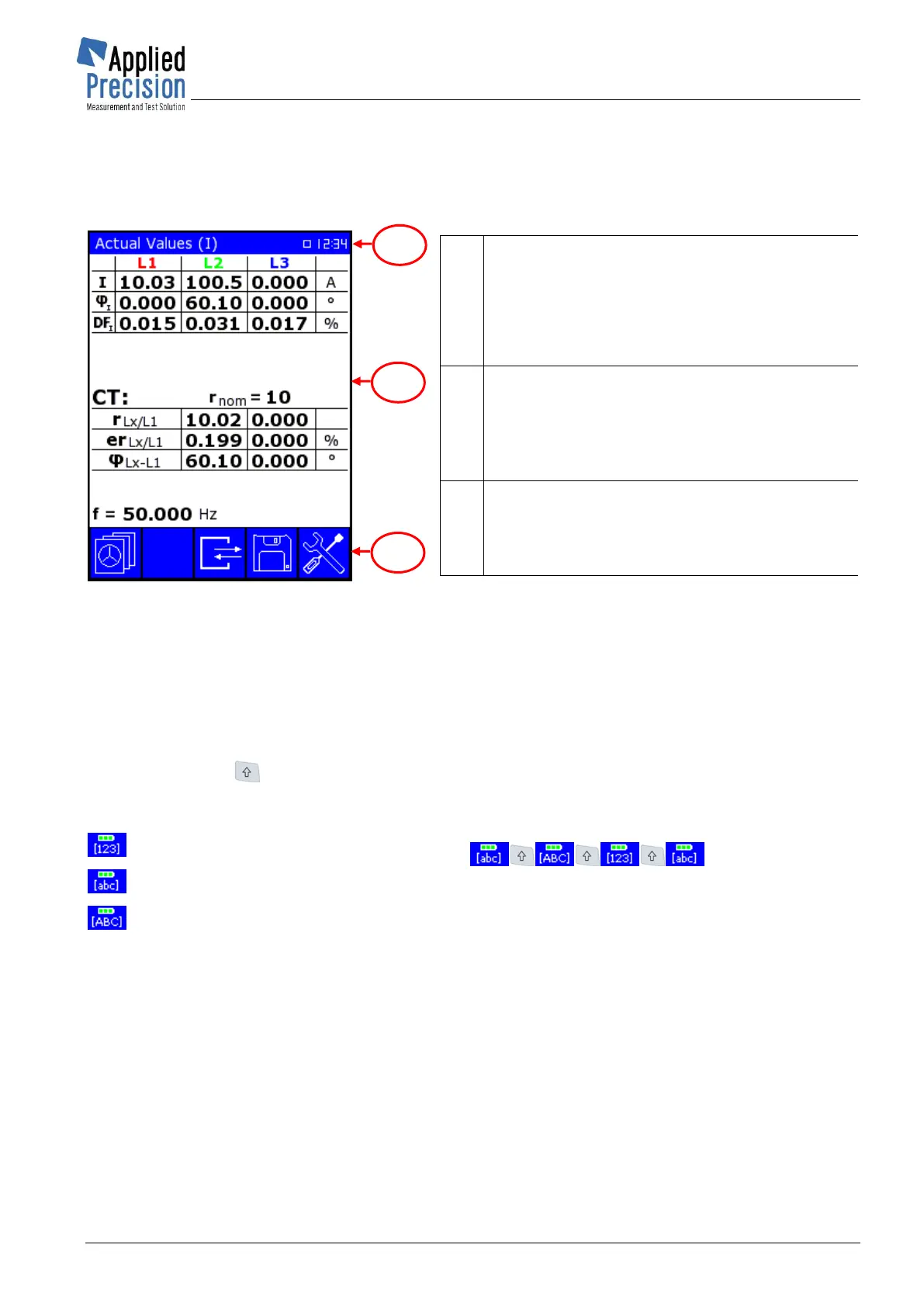

Figure 20 – General Display Layout
1
Header
 page name
 actual time or keypad mode indicator;
signal generation status
2
Info
- measured and calculated values, graphs,
parameters of signal generation, signal
settings, etc.
3
Functions
- graphical presentation of functions
of keys F1 – F5
2.6.2 Text Input
Pressing OK button on any selected input field brings device into Text Input Mode in which device
shows Keypad Mode indicator instead of actual time.
Actual Keypad Mode is indicated in upper right corner of display and can be switched by repeated
pressing of SHIFT .
Available Keypad Modes:
… Numbers (0-9)
… Latin lower-case letters (a-z)
… Latin upper-case letters (A-Z)
Keypad Modes switching order (cyclical):
….
1
2
3
