5.3.1 Test Result Details

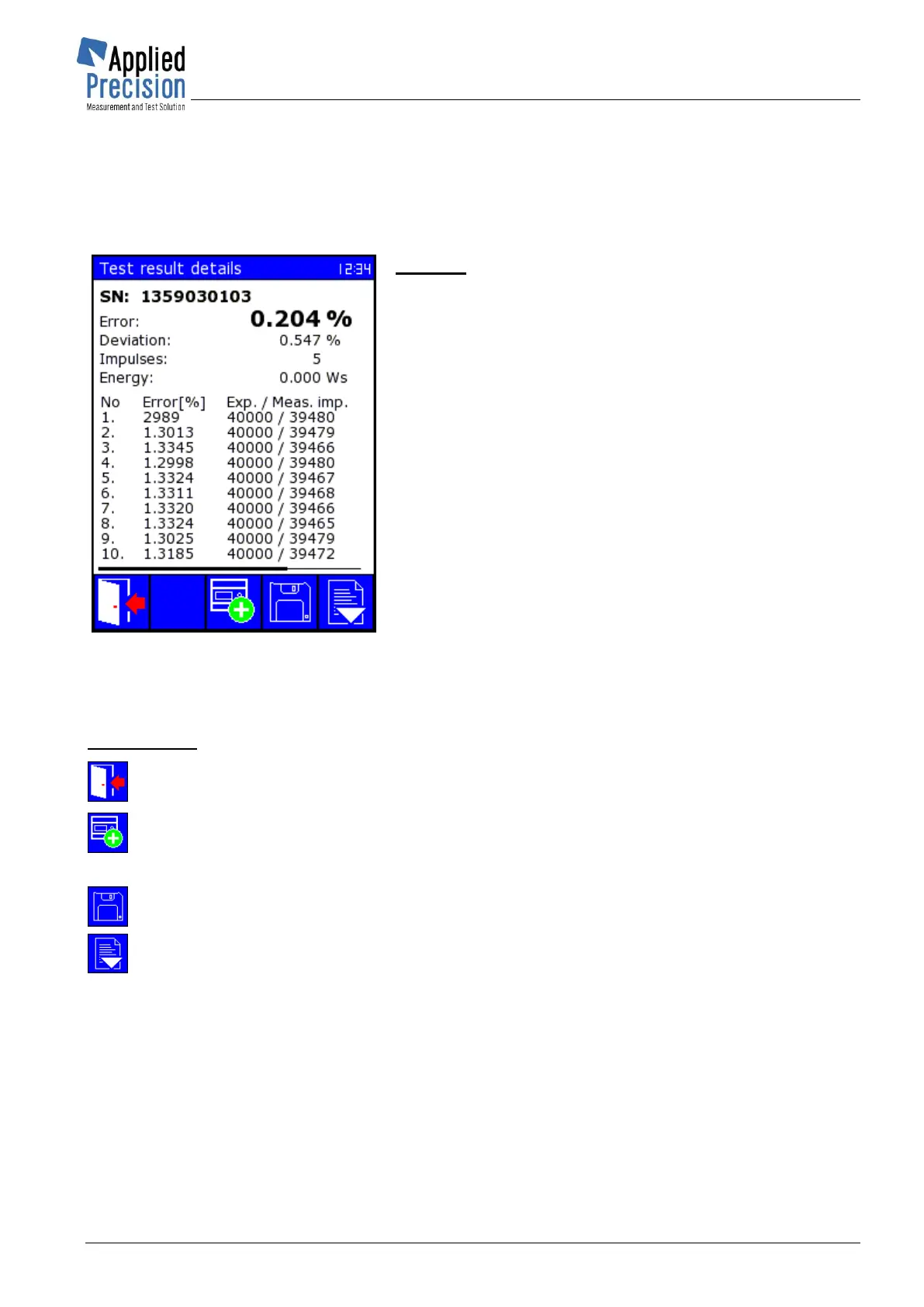

Measured samples can be seen in Test Result Details page which can be activated by key F3 from
Meter Error Test page. This screen shows all measured samples with pulses or energies against time
used for evaluation of these samples.
Content:
SN .................... serial number of meter
Error ................. resulting error
Deviation ......... standard deviation of last completed test
Impulses .......... number of (required) impulses
Energy ............. energy being measured by meter during
last completed test
Samples:
No ..................... Sequence number
Error [%] ........... Measured sample (error in %)
The last column toggles between (F5):
Exp. / Meas imp. ...... Expected impulses count / Measured
impulses count or
E[kWh] / Time [s] or
E[Ws] / Time [s] ........ measured energy by WS over time
(unit changes with Measurement
Settings) *
1
*
1
Up to version 5.30 (including) of FW the quantity E[xxx] / Time [s] with different meaning „calculated energy
over time with respect to Energy and Error [%]”
Control keys:
F1, ESC ........... Exit (return to previous page)
F3 .................... Enables to store recent test results to new meter (Add meter screen will
appear)
F4 ..................... Saves recent test results to database for currently selected meter
F5 ..................... Toggles between Exp. / Meas imp. and E[kWh] / Time [s] respectively
E[Ws] / Time [s] view in third column
