Meaning of keys in mode of generated signals shapes:

F1 ..... return to previous screen

F2 ..... overview of concrete signal (in screen “Signal Shapes” opens “Signal Shape Edit”

screen)

..... adding another harmonic content in “Edit Signal Shape” screen

F3 ..... addition of another new user signal to the end of list in “Signal Shapes” screen. By

default, a new signal is named USERx, where X is a sequence number and this

signal contains only first fundamental harmonic.

..... deletion of last harmonic in sequence in “Edit Signal Shape” screen

F4 ..... saving the current changes in screens “Signal Shape Edit” and “Fixed Shape

Settings”

..... deletion of last user signal in sequence in “Signal Shapes” screen

The above mentioned deletions of harmonics and signals are realized without confirmation.

4.2 DB Measurements and Tests

You can get into Database Measurements and Tests’ screen by F4 from Basic generator screen or

from Generator settings, item no. 4. If Measurement is in progress (F1 key from “DB Measurement”

screen was pressed) only the second option is possible.

Measurement is a list of tests. Test is defined load point. User can define various load points and then

assigned them into measurements. Once set, the whole measurement runs automatically. Such tests

can be set only from PTE interface (so far). Later, it will be possible to use PC software to generate

such tests and measurements using user friendly interface.

In this screen all available measurements are present.

First field Name serves as filter. User types partial

name of any available measurement and after

confirmation only valid ones remain visible. Valid

means that filtered text string occurs in the name of

particular measurements.

Table with columns NAME (measurement name) and

# (number of tests contained) displays all

measurements with the regard of above mentioned

filter.

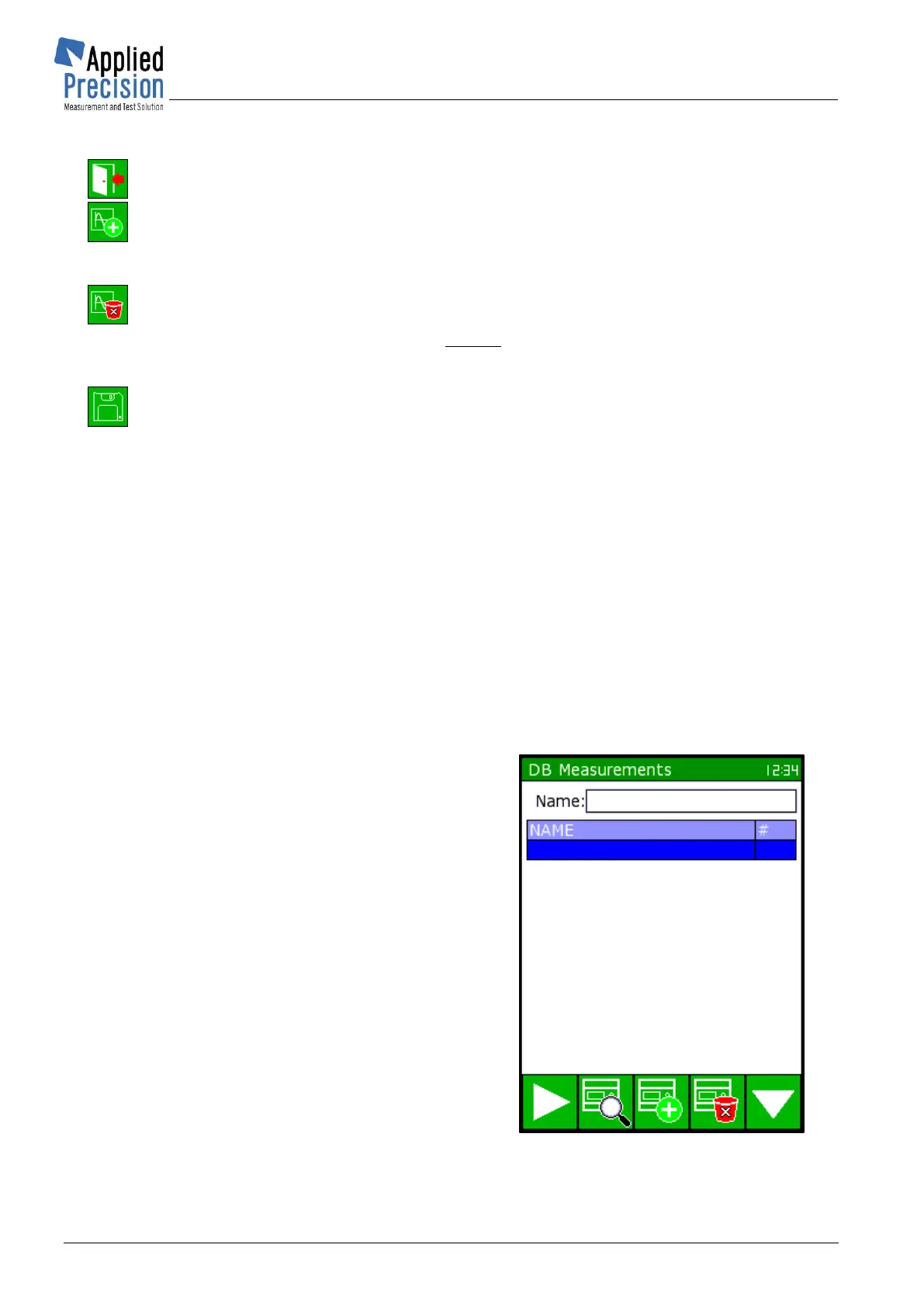

Screen of DB Measurements with name

and number of tests per measurement

* P137

Applied Precision PTE 2300 Series User Manual
