In this screen all available tests are present.
First fields Name and Code serve as filter. User types
partial name of any available test and /or Code and
after confirmation only valid ones remain visible. Valid
means that filtered text string occurs in the name and
/or code of particular tests.
Top table contains the list of available tests with the
regard of above mentioned filters.
Bottom table contains all parameters of highlighted
test (from top table).

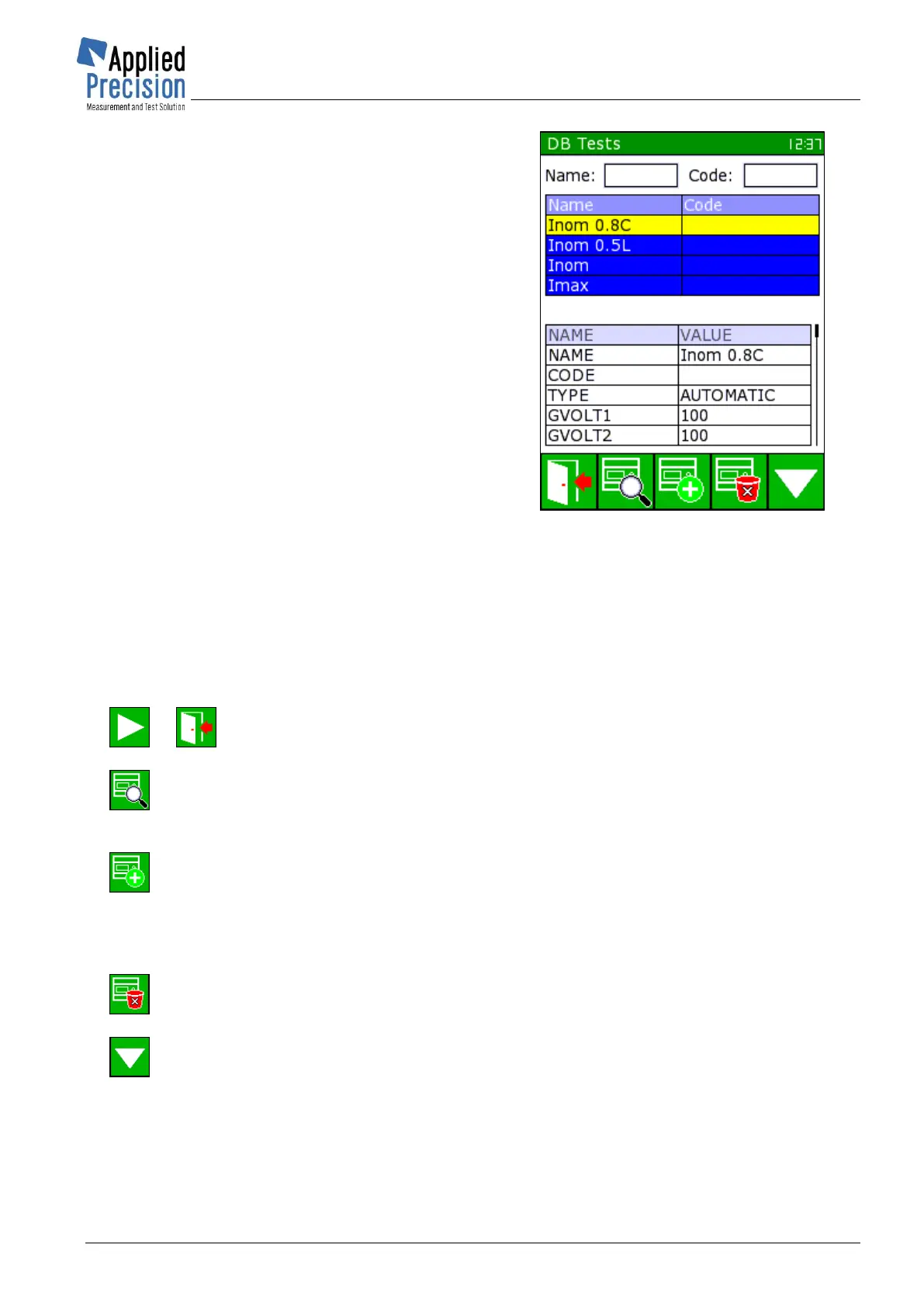

Screen of DB Tests with table of tests and
their properties
* P126
All tables are scrollable. User can move between tables by arrows and between screens
(Measurements and Tests) by F5 key. After pressing OK, cursor immerses into table and moves
between rows of particular table. After pressing OK, particular item (row) remains selected
(highlighted in yellow) and cursor skips out from the table.
Meaning of keys in mode of DB Measurements and DB Tests:
or F1 ... in Measurements: it runs selected measurement; in Tests it exits to Generator
Menu
F2 ................. navigates to “Edit Measurement” or “Edit Test” screens where overview (and
editing) of concrete Measurement or Test is possible
F3 .................. addition of new Measurement or Test. It will open “Add Measurement” or “Add
Test” screen(s). New item after saving will appear at the end of list in “DB
Measurements” or “DB Tests” screen. By default, a new Measurement or Test
opens as the selected item, and so it is necessary to rename it and change its
parameters. In other words, new item will not open as blank.
F4 .................. deletion (confirmed by F5) of selected Measurement or Test (or all
Measurements or all Tests)
F5 .................. toggle between DB Measurements and DB Tests
