4.2.1 How to create tests
First when the database is empty newly defined test starts with blank parameters. After first created
test next one (either new or copy) will always open for definition as the copy of currently selected.
From the screen “DB Tests” press F3 to get to the screen “Add Test 1/4”. There are four screens
(toggle by F5) available to define all parameters per test. Some parameters are good as default but
some has to be defined, for instance the Name. When user is done editing, F4 (from any screen)
saves the Test. F1 leaves editing and discards all changes.

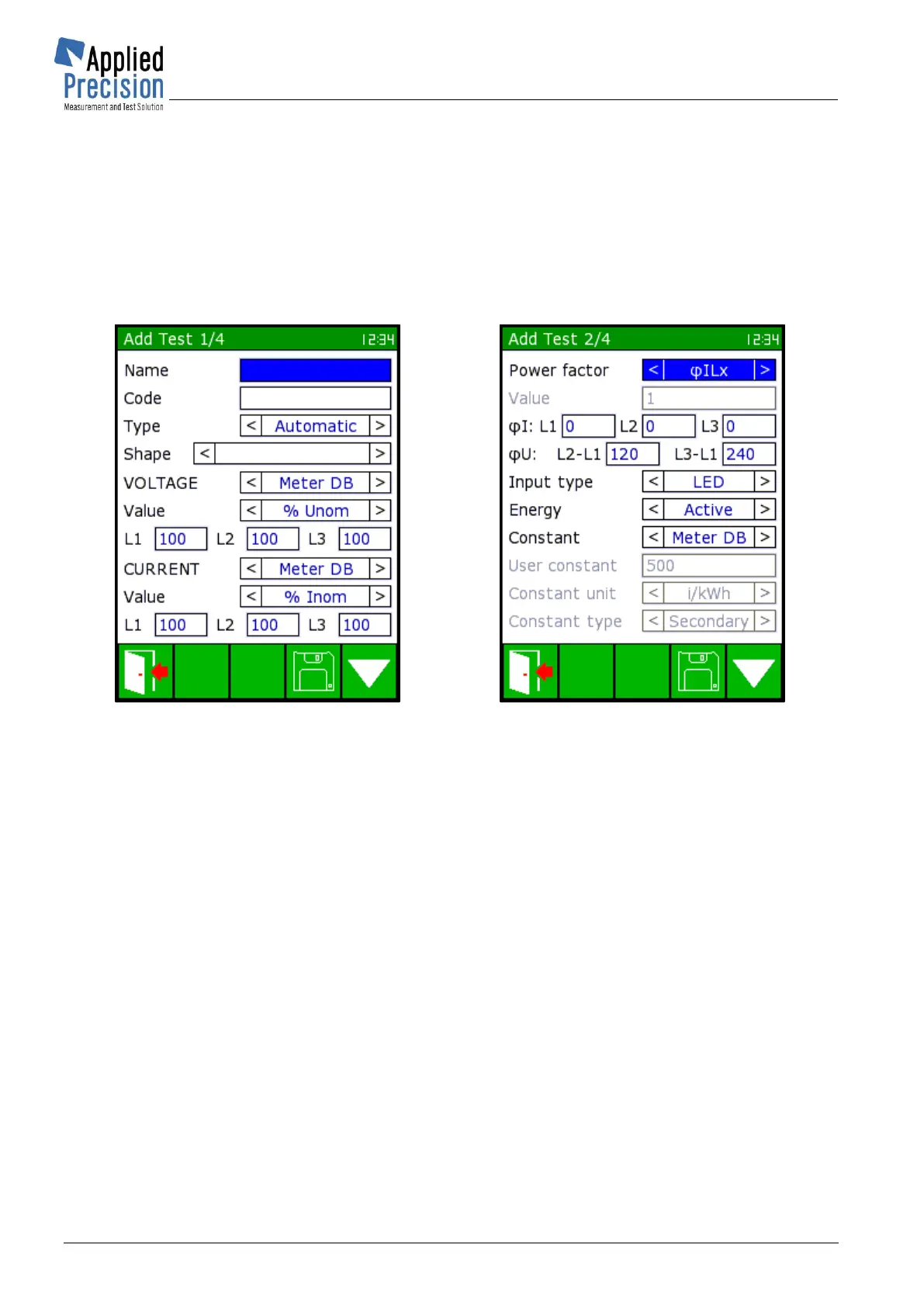

Add Test screen 1/4
* P127
Add Test screen 2/4
* P128
Name .........................Test name
Code ..........................Code name of the test
Type ...........................Test type – Automatic (error in %) or Dial Test (for future use)
Shape ........................Signal shape – Pure Sine, Burst F. (IEC1036), Phase F. (IEC1036), User
def. (SCPI). For User defined see chapter 4.1 Signal Shapes
Voltage ......................Selection of voltage reference – from database (Meter DB), Primary,
Secondary
Value .........................This field is for VT related parameters from meters DB, otherwise %Unom is
selected
Lx ...............................Percentage rate per individual voltage channels
Current ......................Selection of current reference – from database (Meter DB), Primary,
Secondary
Value .........................This field is for CT related parameters from meters DB, otherwise %Inom is
selected
Lx ...............................Percentage rate per individual current channels
Power Factor .............Power Factor – C (LEAD), L (LAG), φILx
Value .........................The value of power factor for C and L option from “Power Factor”
φI ...............................Angle value related to φILx option of Power Factor
φU ..............................Voltage angle values (L2-L1, L3-L1)
Input Type .................Mode of pulses registration, depends on meter type – LED, DISC/SO,
SNAP.S,
Energy .......................Energy type registration – Active, Reactive, Apparent or Default (from
database)
