Note:
Quantities U1 ÷ U3 and I1 ÷ I3 are used when voltage and current probes are connected to the unit’s
panel.
Although, quantities Ua and Ub (3x for 3 phase system) are used, when two voltage probes are
connected to the device. “a” and “b” are designators of unit probe inputs A, B. See picture in chapter
2.1. Same applies when two current probes are connected to device (Ia, Ib).

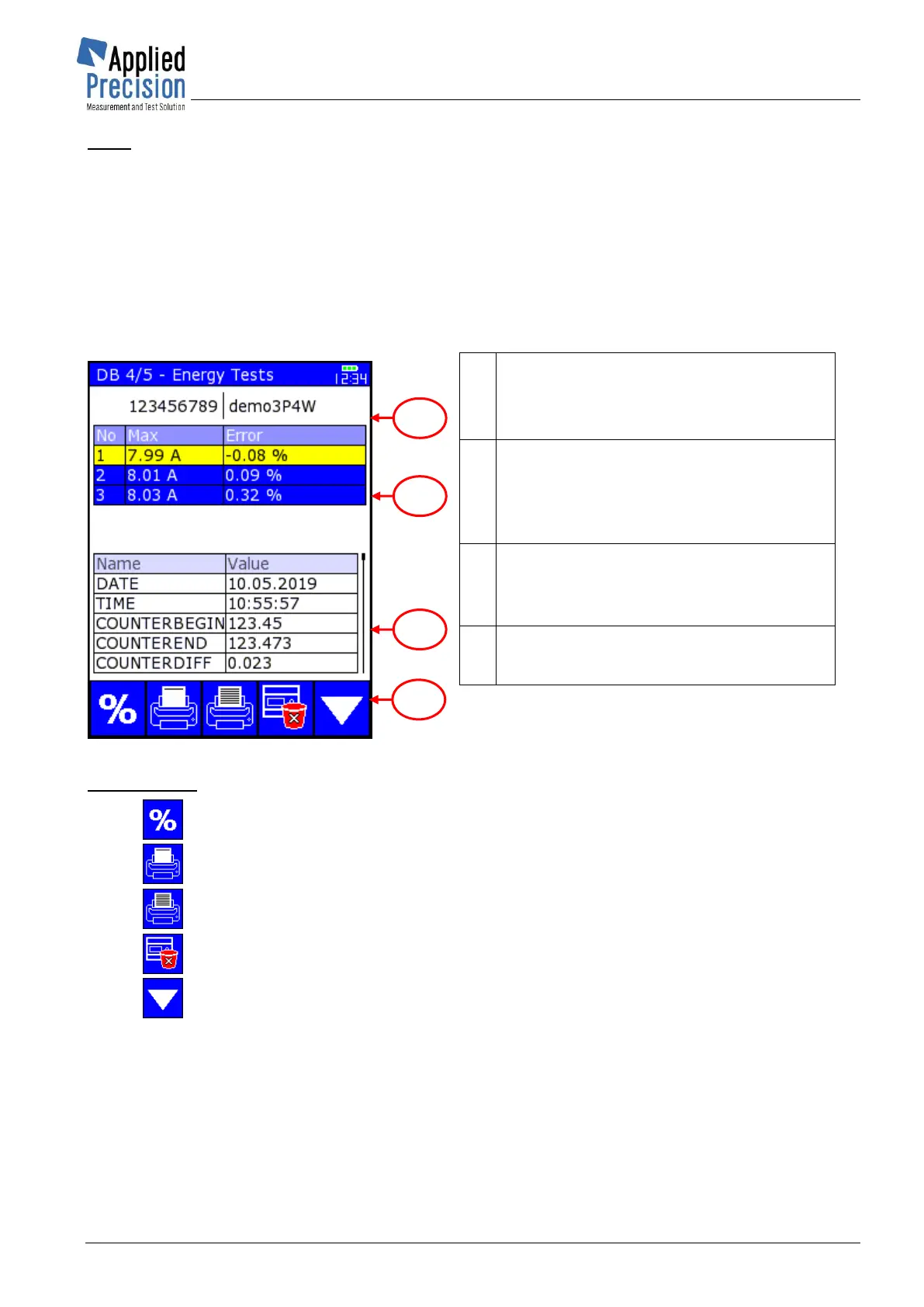

5.8.4 Database of Energy tests
Database contains Dial tests results saved for actual meter in Dial test page.
Database of Dial tests
* P76
Meter Identification
serial number
type of meter
Table of Dial tests
No. ......... Dial test number
E ............ energy amount
Error ..... test result
Table of Parameters of selected Dial test
Name ..... name of parameter
Value ..... value of parameter
Functions
- presentation of functions of keys F1 - F5
Control keys:
F1 ........................ Make new Dial test
F2 ........................ Print selected item only
F3 ........................ Print test report of selected meter to portable printer *
F4 ........................ Delete selected item (Dial test)
F5 ........................ Switch to next database screen
▼▲ ...................... Navigation on screen or in table
PgDn, PgUp......... Page selection within table
OK ....................... Confirmation of selected item
ESC ...................... Exit screen or close browsing table
* Portable printer can be used as optional accessory, eventually data can be sent to any capable
serial link bus, e.g. serial connection of a PC.
