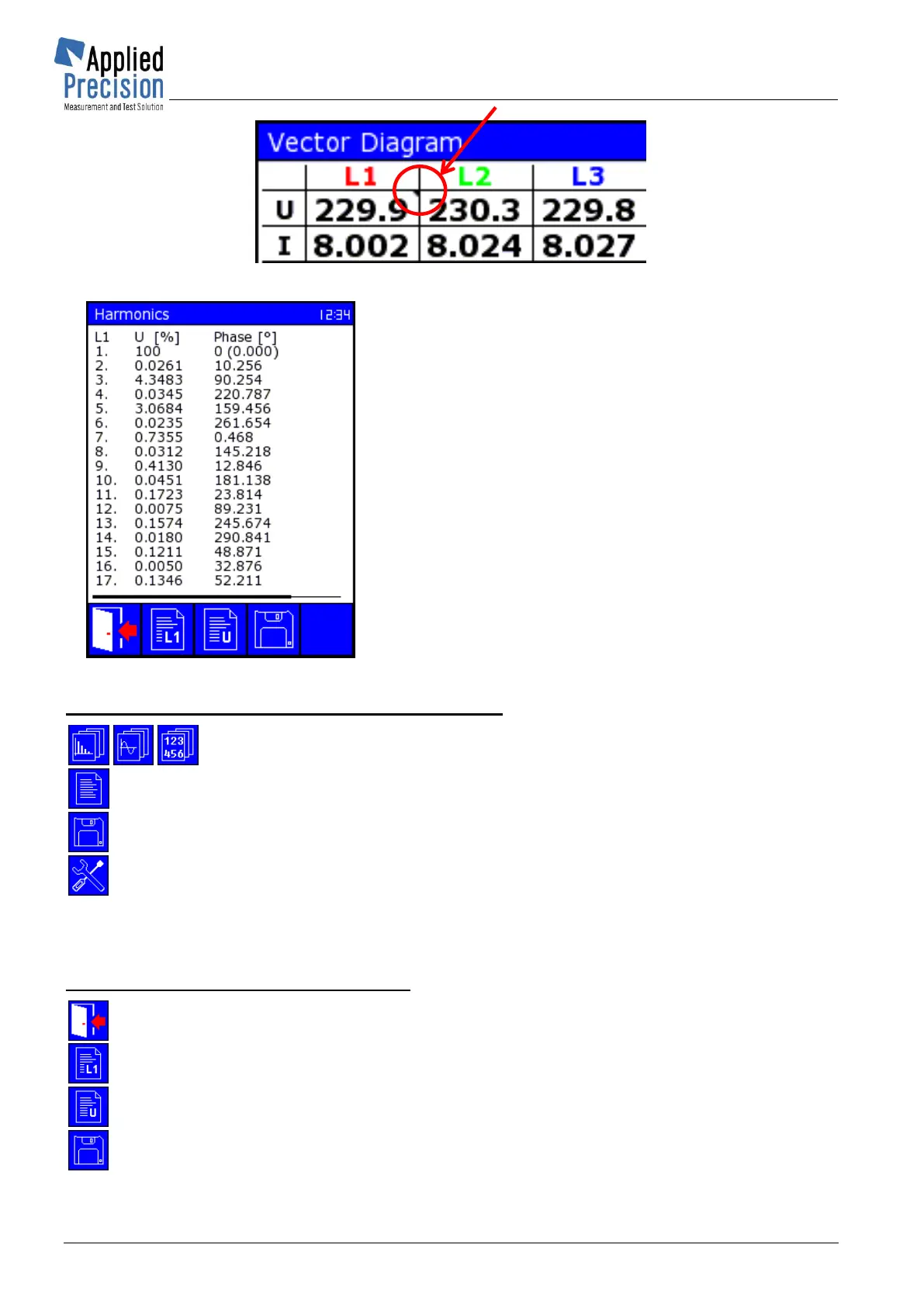

Harmonics View screen shows measured values (amplitude and phase) of all harmonics.
Harmonics View screen
* P65
Individual harmonic components are distributed over
several screens (3 x I, 3 x U). Each screen can be
scrolled up and down. Individual amplitudes represent a
percentage of the first harmonic and phase shift is
relative displacement of corresponding harmonic
component. At the first harmonic the phase shift is given
in brackets (measured against first harmonic in first
voltage phase) but otherwise it is 0, which serves as a
reference for determining the phase difference of other
harmonics.
Control keys (for three graphical presentation pages):
F1 ........ Switch to another graphical presentation pages or back to main page
F3 .......................... Show Harmonics View in Harmonics screen
F4 .......................... Save Load Values
F5 .......................... Menu
▼▲ ........................ Choose combination of showed signals in Harmonics and Curve screens
◄ ► ........................ Scroll next/previous 10 harmonics in Harmonics screen
ESC ......................... Exit (return to main measurement page)
Control keys (for Harmonics View screen):
F1, ESC .................. Exit (return back to Harmonics screen)
F2 .......................... Switch to next channel (L1<->L2<->L3<->L1)
F3 .......................... Switch to next channel (U<->I<->U)
F4 .......................... Save Harmonics
▼▲◄ ► ................. Content scrolling
PgDn, PgUp .............. Content paging
