Arbor Technology FPC-7900 - Physical Dimensions and Component Layout

- 8 -
System Overview

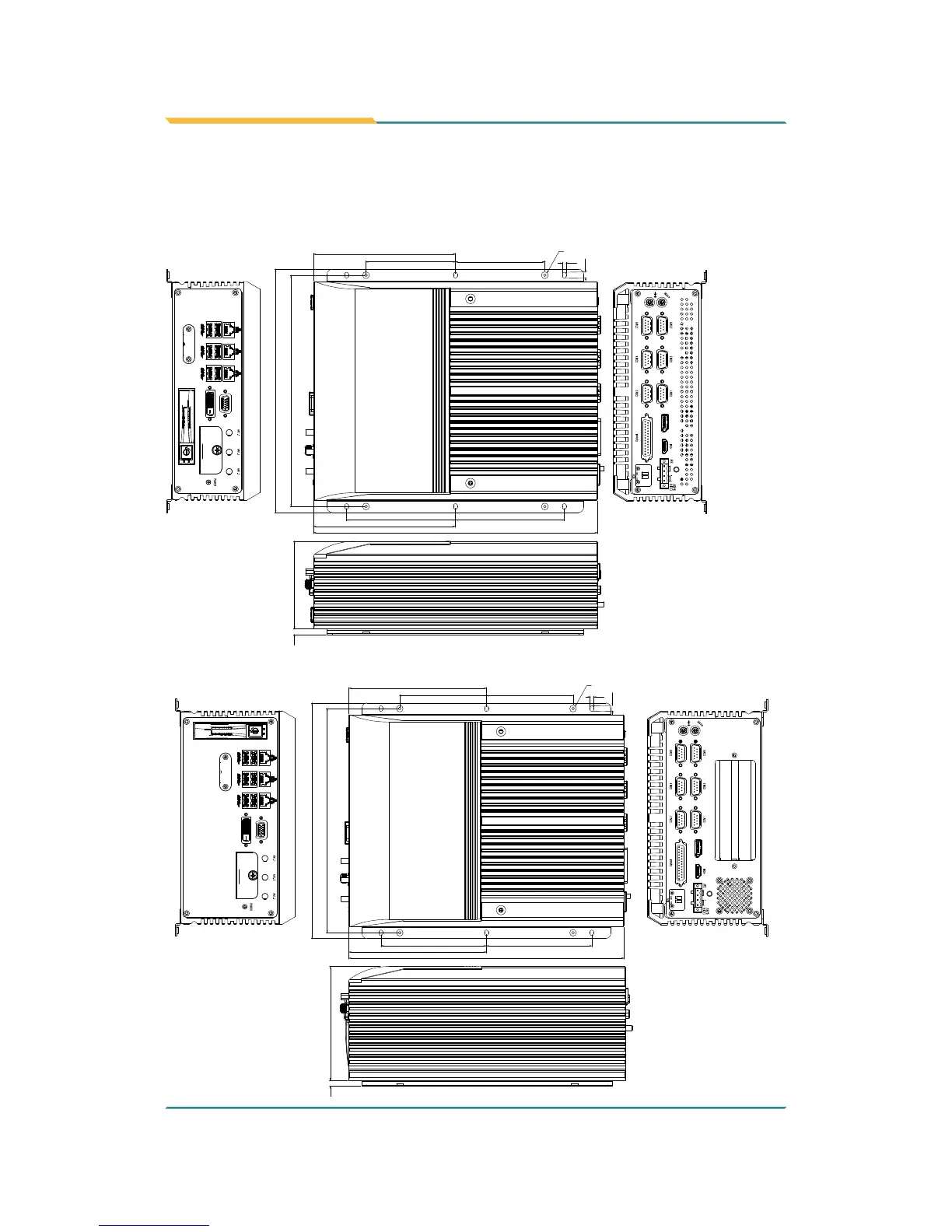

2.1. Dimensions
FPC-7900
CFast / SIM
DVI
RTC BAT.
VGA
292
146
112 112
146
250
238
92
92
4
6.0
Unit:mm
906.0
NUT UNC#6-32
DisplayPort
FPC-790X
292
146
120
112 112
146
250
238
92
92
4
Unit:mm
6.0
6.0
NUT UNC#6-32
CFast / SIM
DVI
RTC BAT.
VGA
DISPLAY PORT
