Engine of the Computer

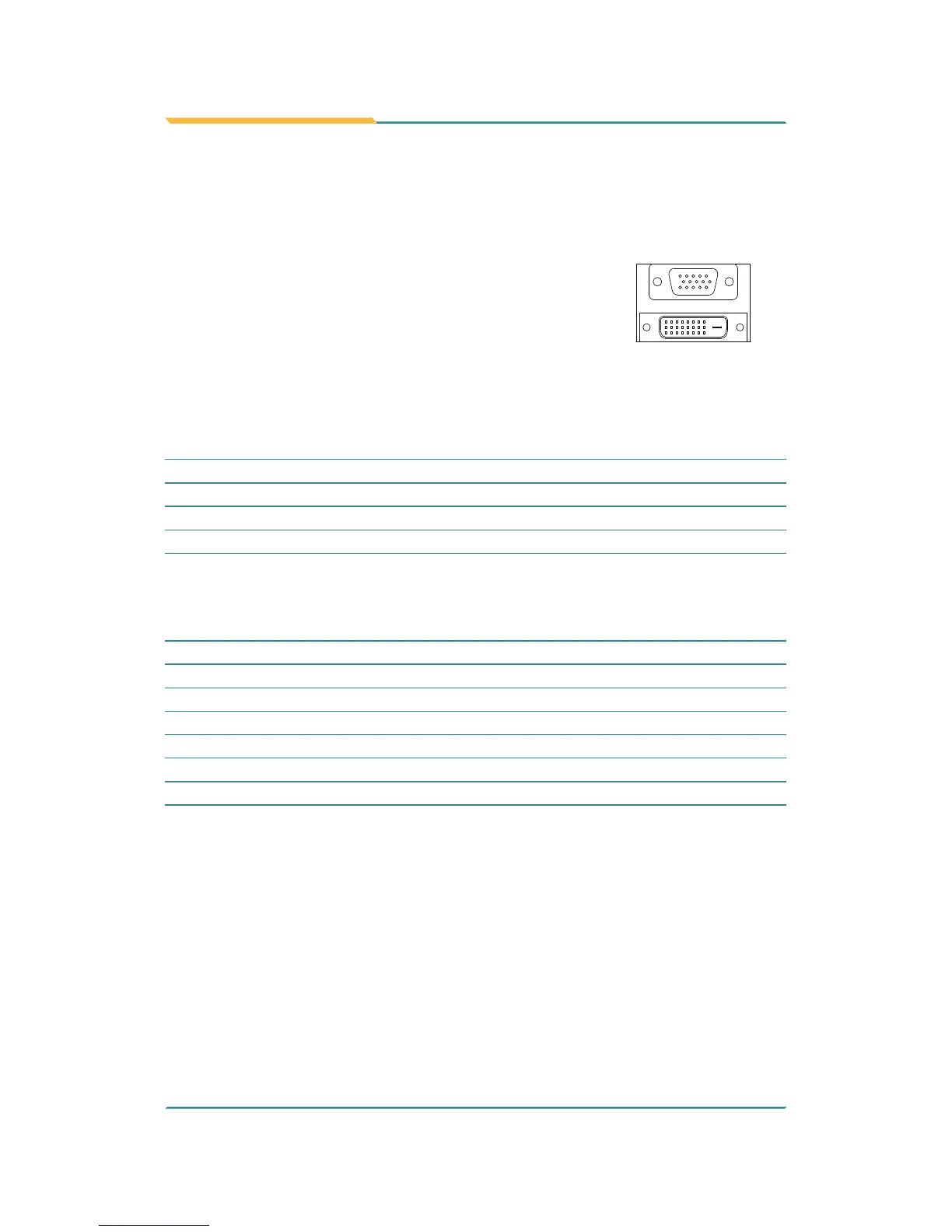

③ VGA1
Function:
Analog RGB & DVI-D Connector
Analog RGB
DVI-D
1
1
8
17
24
5
1115
Connector Type:
Analog RGB (D-Sub 15-pin female type)
+ DVI-D (DVI-D female connector)
Pin Assignment:
Analog RGB Connector
Pin Desc. Pin Desc.
Pin Desc.
1 RED 6 GND 11 N/C
2 GREEN 7 GND 12 VDDAT
3 BLUE 8 GND 13 HSYNC
4 N/C 9 +5V 14 VSYNC
5 GND 10 GND 15 VDCLK
DVI-D Connector
Pin Desc. Pin Desc.
Pin Desc.
1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-
2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+
3 GND 11 GND 19 GND
4 NC 12 NC 20 NC
5 NC 13 NC 21 NC
6 DDC clock 14 +5V 22 GND
7 DDC data 15 GND 23 TMDS clock+
8 NC 16 Hot plug detect 24 TMDS clock-
