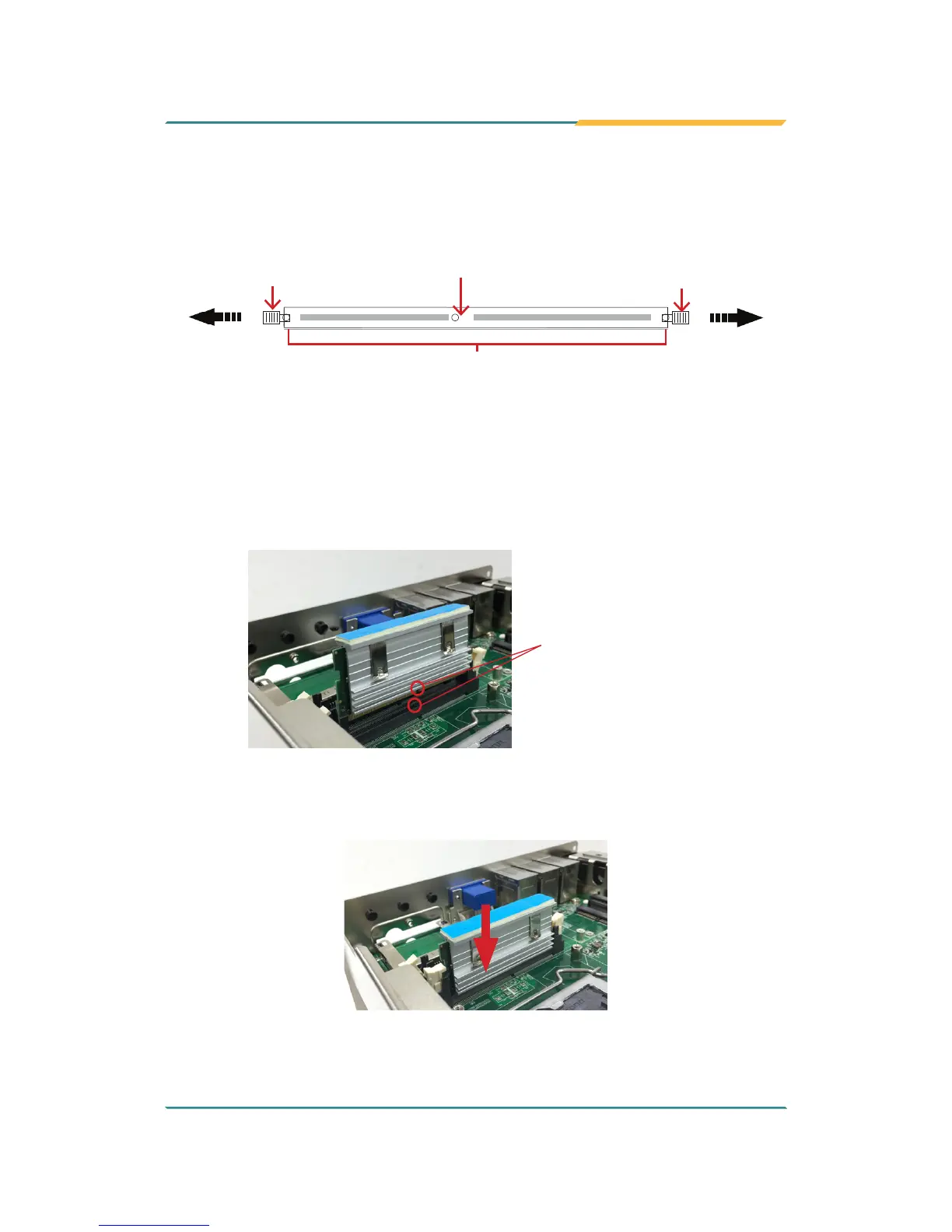

The SO-DIMM sockets are vertical type, and each socket has two
latches for xing the memory modules. The memory module can only be
installed by one direction due to the notch.
3. Pull back both latches from the socket.
the break
the SO-DIMM socket’s slot connector
latch
latch
vertical-type SO-DIMM socket (overview)
4. Confront the memory module’s edge connector side at the SO-DIMM
socket. Position the memory module at the SO-DIMM socket, with the
memory module’s key notch aligned at the break of the SO-DIMM’s slot
connector.
Align the notch on
the memory module
with the notch in the
memory socket.
5. Vertically plug the memory module to the DIMM socket. “Fully” plug the
memory module until both latches auto-lock the memory module in place.
6. Restore the top cover to the computer.
