card is properly seated in the slot, as shown in Figure 2-2. Next,
screw the bracket into the computer chassis. ARC-1200 controller
requires a PCIe x1 slot.

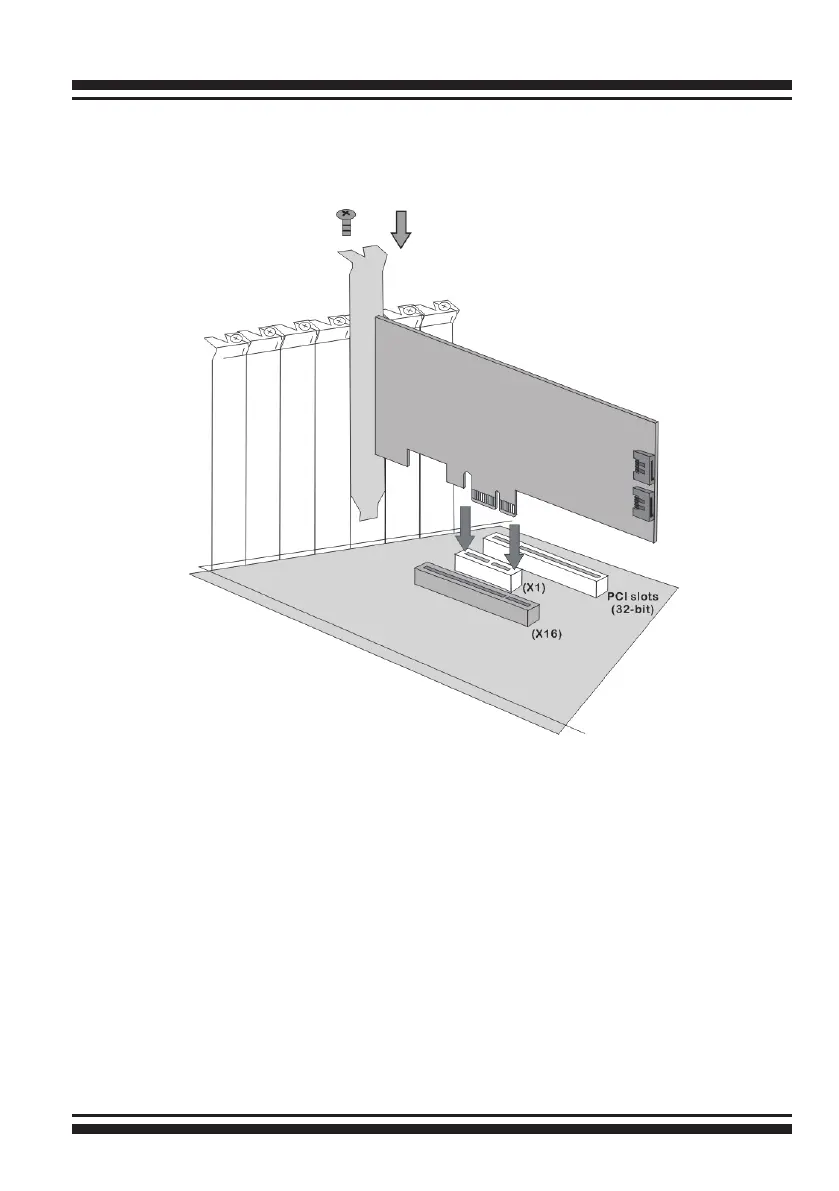

Figure 2-2, Insert SATA RAID controller into a PCIe x1 slot
Step 4. Mount the Cages or Drives
Remove the front bezel from the computer chassis and install the
cages or SATA drives in the computer chassis. Loading drives to the
drive tray if cages are installed. Be sure that the power is connect-
ed to either the cage backplane or the individual drives.
