Update Documentation P44x/EN AD/E44
MiCOM P441, P442 & P444 Page 73/82

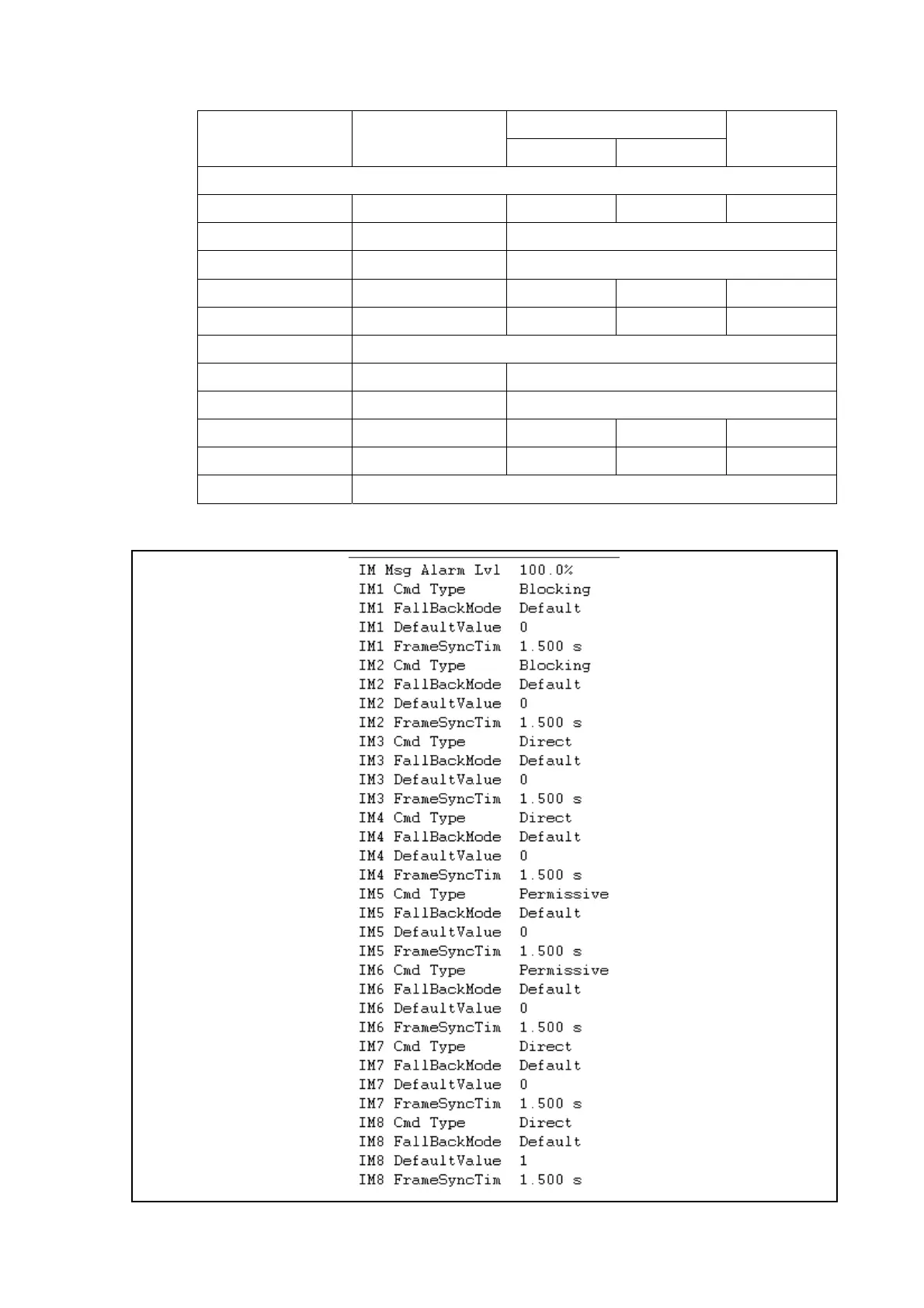

Setting Range
Menu Text Default Setting
Min Max
Step Size
INTERMICOM CONF
IM Msg Alarm Lvl 25% 0% 100% 1%
IM1 Cmd Type Blocking Disabled/ Blocking/ Direct
IM1 Fallback Mode Default Default/ Latched
IM1 DefaultValue 1 0 1 1
IM1 FrameSyncTim 20ms 10ms 1500ms 10ms
IM2 to IM4 (Cells as for IM1 above)
IM5 Cmd Type Direct Disabled/ Permissive/ Direct
IM5 Fallback Mode Default Default/ Latched
IM5 DefaultValue 0 0 1 1
IM5 FrameSyncTim 10ms 10ms 1500ms 10ms
IM6 to IM8 (Cells as for IM5 above)
TABLE 4 : PROGRAMMING THE RESPONSE FOR EACH OF THE 8 INTERMiCOM SIGNALS
