Arjo Tornado Assembly And Installation Instructions

11
2.3 Scale drawings
2.3.1 Freestanding model placed next to wall
Scale drawings apply to the FD1800 and FD1810 models.
3
12
44
55
6
002513

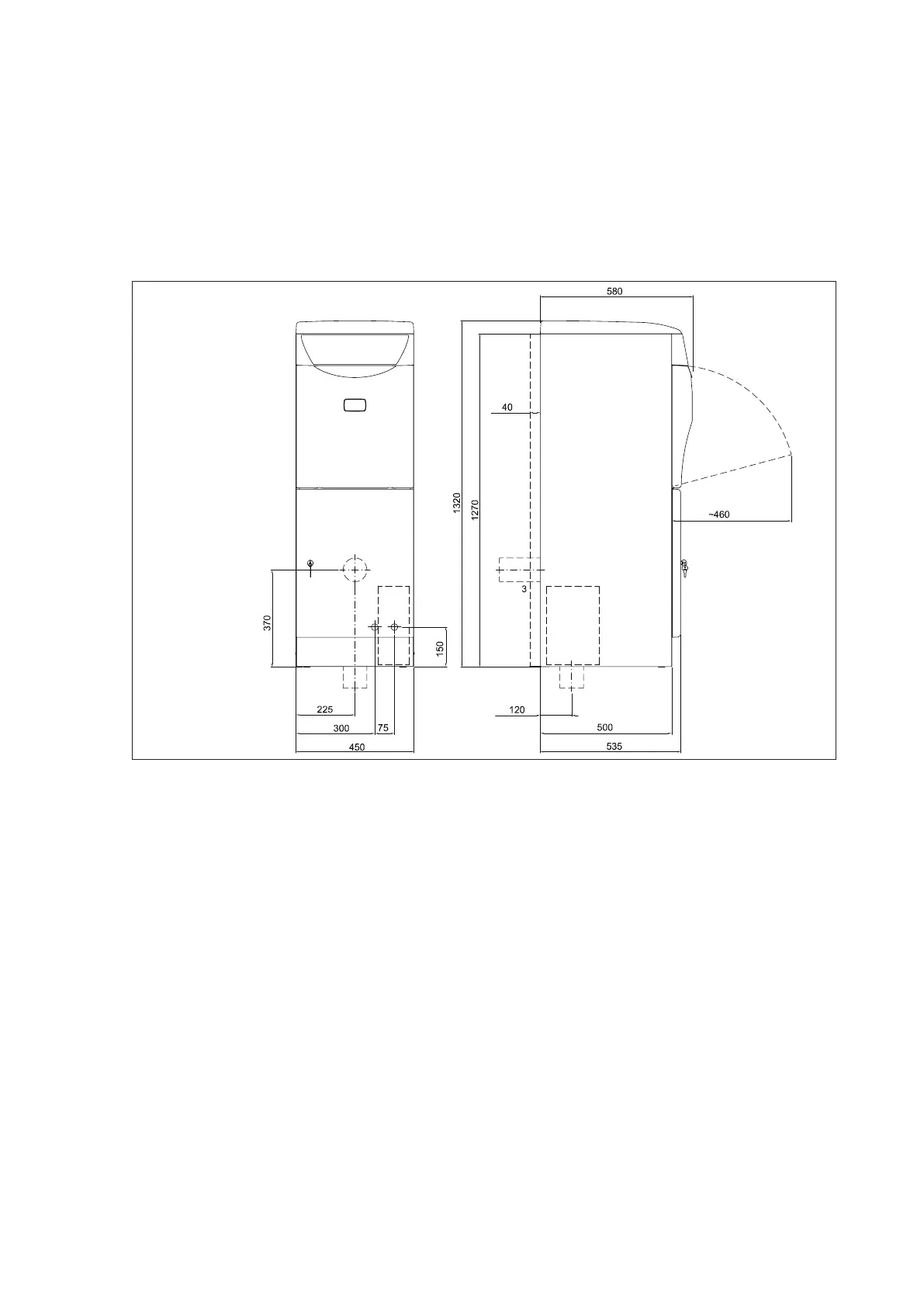

Figure 2. Scale drawing
1. Hot Water 4. Waste connection, S,
oor
2. Cold Water
5. Transformer
3. Waste connection, P,
wall
6. Extension frame
(option)
Transformer:
• Dimensions: 300x200x210.
• Positioning: The transformer can be moved, see “Connecting
electrical power”.
