Arjo Tornado - Machine Presentation; Intended Use and Function; General Overview and P&I Diagram

12
2.3.2 Freestanding model wall-mounted
Scale drawings apply to the FD1800 and FD1810 models.
3
3
4
12
~460
1320
1270
500
535
580
370
225
450
150
300
75
1035
100
12
280
84,5
002877
55

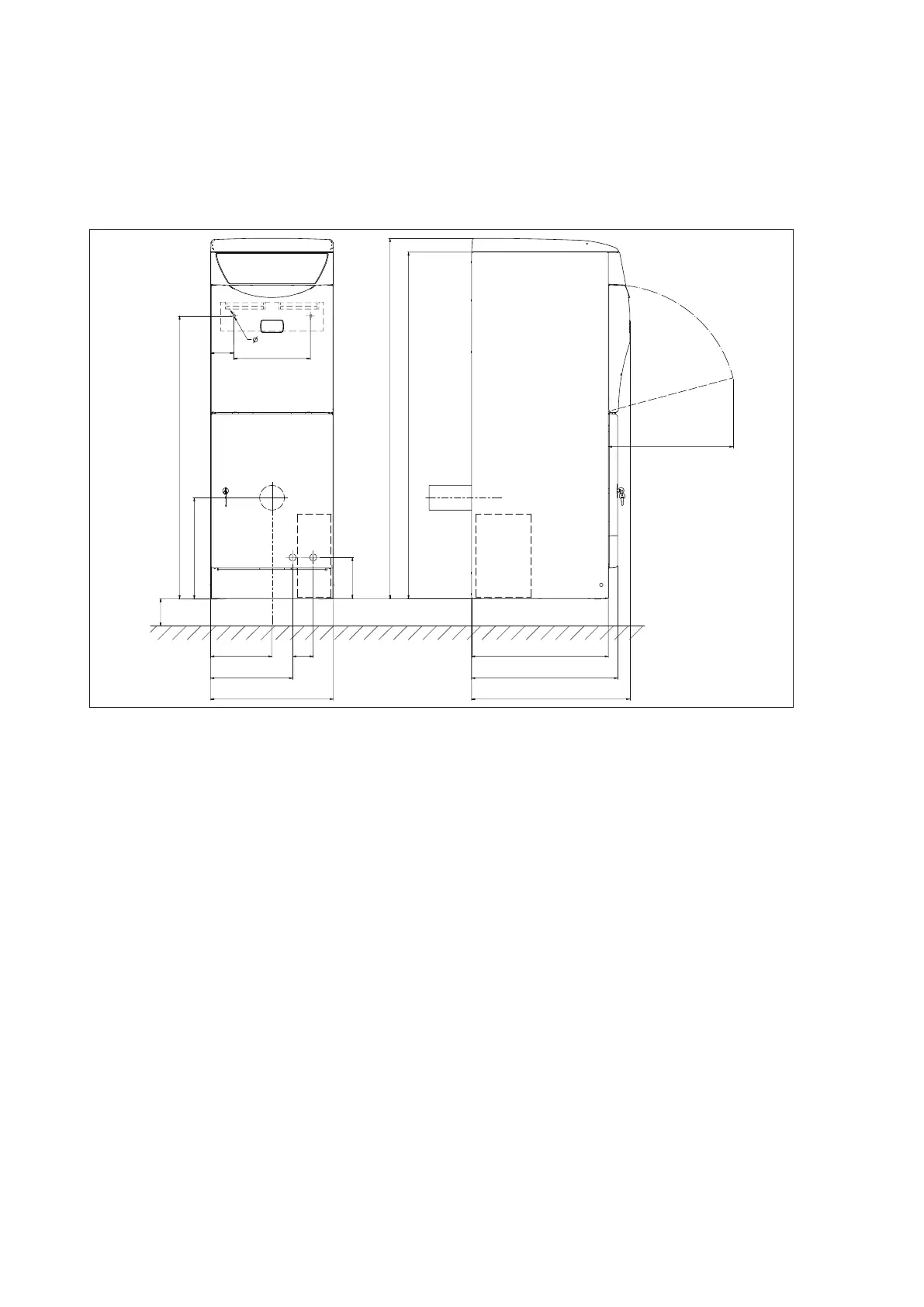

Figure 3. Scale drawing
1. Hot Water 4. Wall bracket
2. Cold Water 5. Transformer
3. Waste connection, P,
wall
Transformer:
• Dimensions: 300x200x210.
• Positioning: The transformer can be moved, see “Connecting
electrical power”.
