2.4.3 Under-bench model
Install the machine as follows:
1. Install the water trap to the waste outlet:
• The trap can be connected towards the rear (P-trap) or
downwards (S-trap).
• The pipe diameter is 90 or 110 mm and should be able
to handle 1 liter per second.
Note!
Install the hose from the ventilator (option).
2. Position the machine in place.
3. Level the machine:
• Use a spirit level held vertically on the side of the
machine.
• If necessary, adjust with the adjustable feet at the front
of the machine.
2.4.4 Trap and ventilator

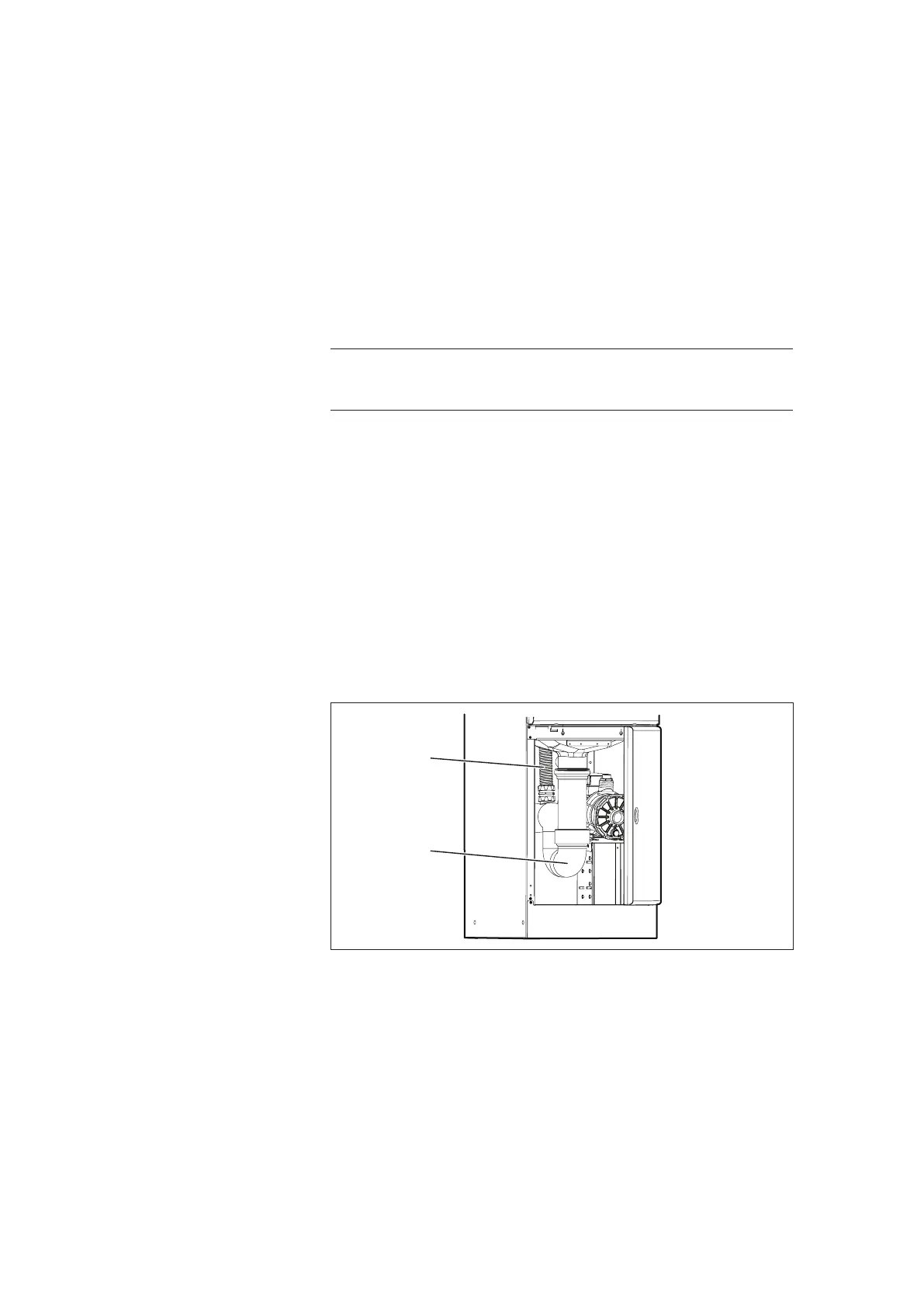

The illustration below shows an example of tting a water trap and
ventilator. The example shows the free-standing model with the
P-lock.
2
1
002918
Figure 7. Example of how to t a water trap and ventilator
1. Attached pipe from ventilator (option)
2. Attached trap
