4.3 Control panel
4.3.1 FD1800/FD1805
4
981 5 72 3 6

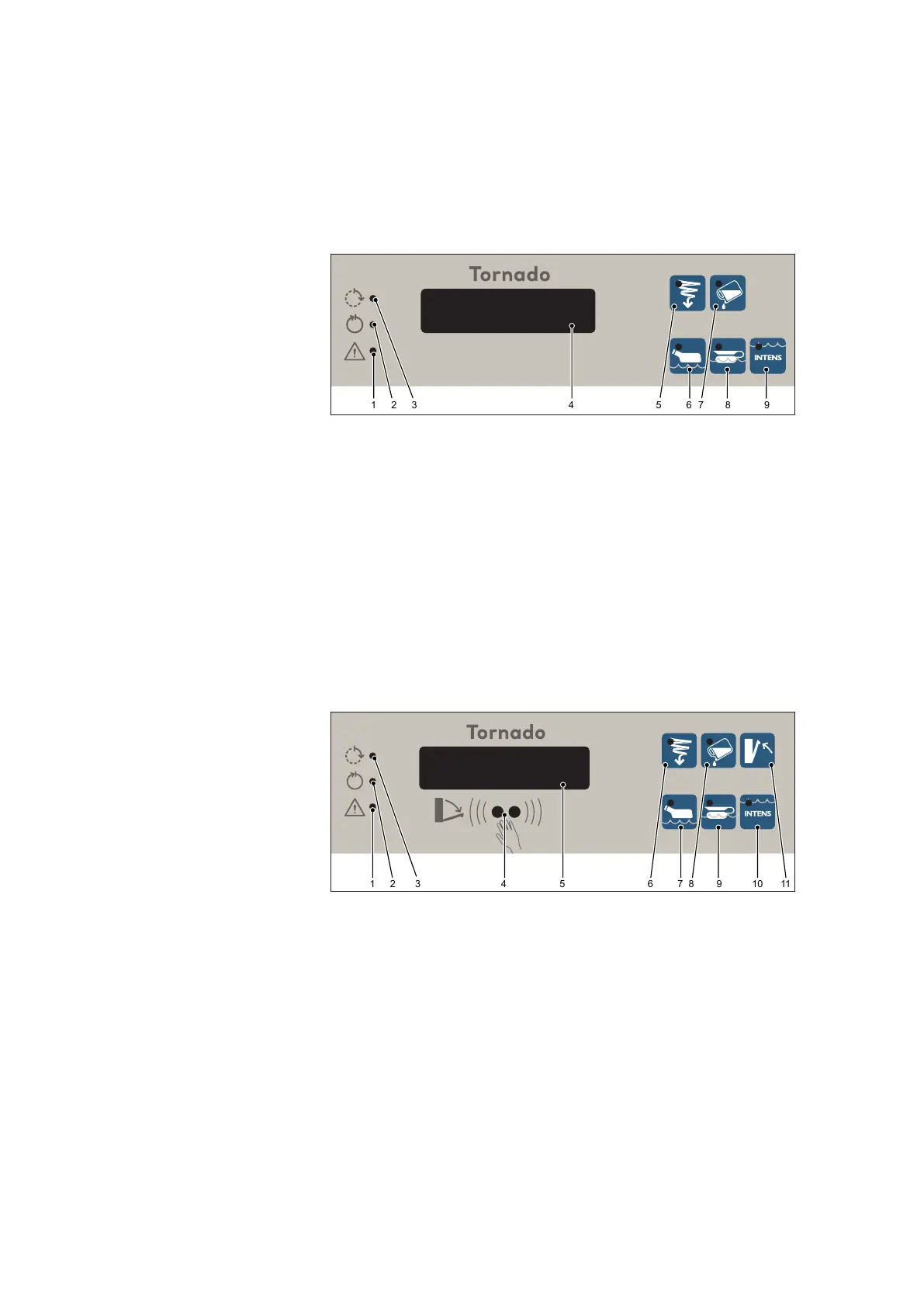

Figure 15. Control panel
1. Red: Error indication 6. Economy program
2. Green: Process
complete
7. Detergent*
8. Normal program
3. Yellow: Process
running
9. Intensive program
4. Display
5. Rim ushing
* Option
4.3.2 FD1810
5 1091 4 6 82 3 117
Figure 16. Control panel
1. Red: Error indication 7. Economy program
2. Green: Process
complete
8. Detergent*
9. Normal program
3. Yellow: Process
running
10. Intensive program
11. Door closing/opening*
4. IR sensor*
5. Display
6. Rim ushing
* Option
