2.6 Electrical connections
2.6.1 Positioning the transformer
Placement alternatives:
• The transformer for freestanding models can be moved:
 to the opposite side of the machine if so required due to
water connections. Ensure that the transformer does not
encroach on the area intended for detergents.
 and is assembled separately from the machine. Hang
up and fix the transformer on a suitable wall.
• The transformer for the under-bench model must be
assembled separately from the machine. Hang up and x the
transformer on a suitable wall.

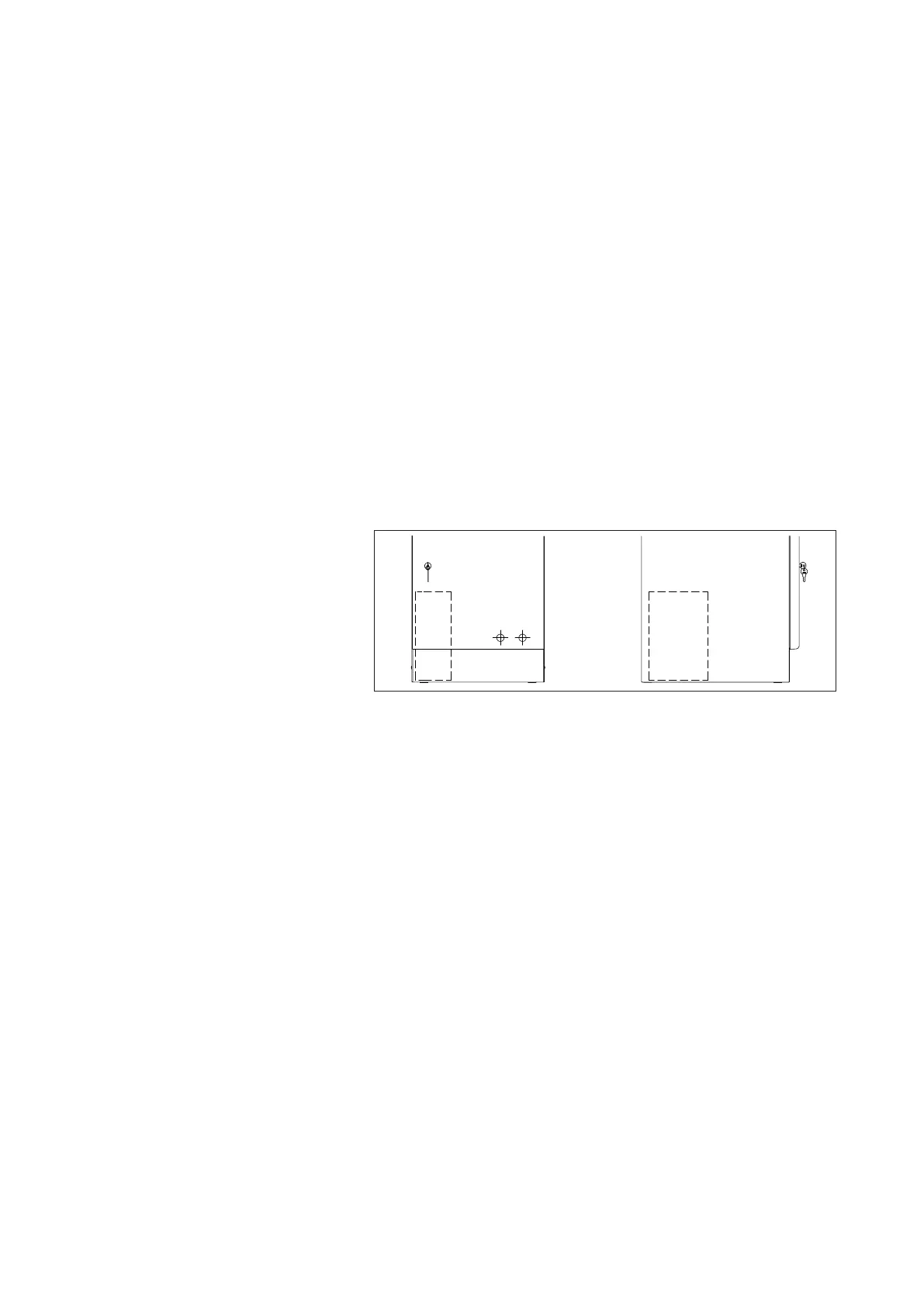

The illustration below shows alternative positioning (A) for the
transformer for freestanding models.
A
A
002878
Figure 10. Alternative placement of the transformer
2.6.2 Connect electricity
Carry out the electrical installation as follows:
• Install the machine in accordance with installation category
CAT II.
• Make a notch for electrical cables on the side of the machine.
• Fit the supplied cable bushing and pull the cables through.
• Connect the machine to a separate isolator switch approved
to local standards, which must be mounted on the wall close
to the machine.
• Connect to the protective grounding and to the supply voltage
stated on the type plate. Check that the connection has
suitable overcurrent protection. The correct fuse rating is
stated on the type plate.
• All cables must be classied for at least 90°C.
