2.4.2 Freestanding model wall-mounted
Install the machine as follows:
1. Drill the holes for the wall bracket in accordance with the hole
pattern.
2. Drill the hole for attachment in the bottom frame.
3. Fix the wall bracket (A) to the wall (B) with screws.
A
B
002398

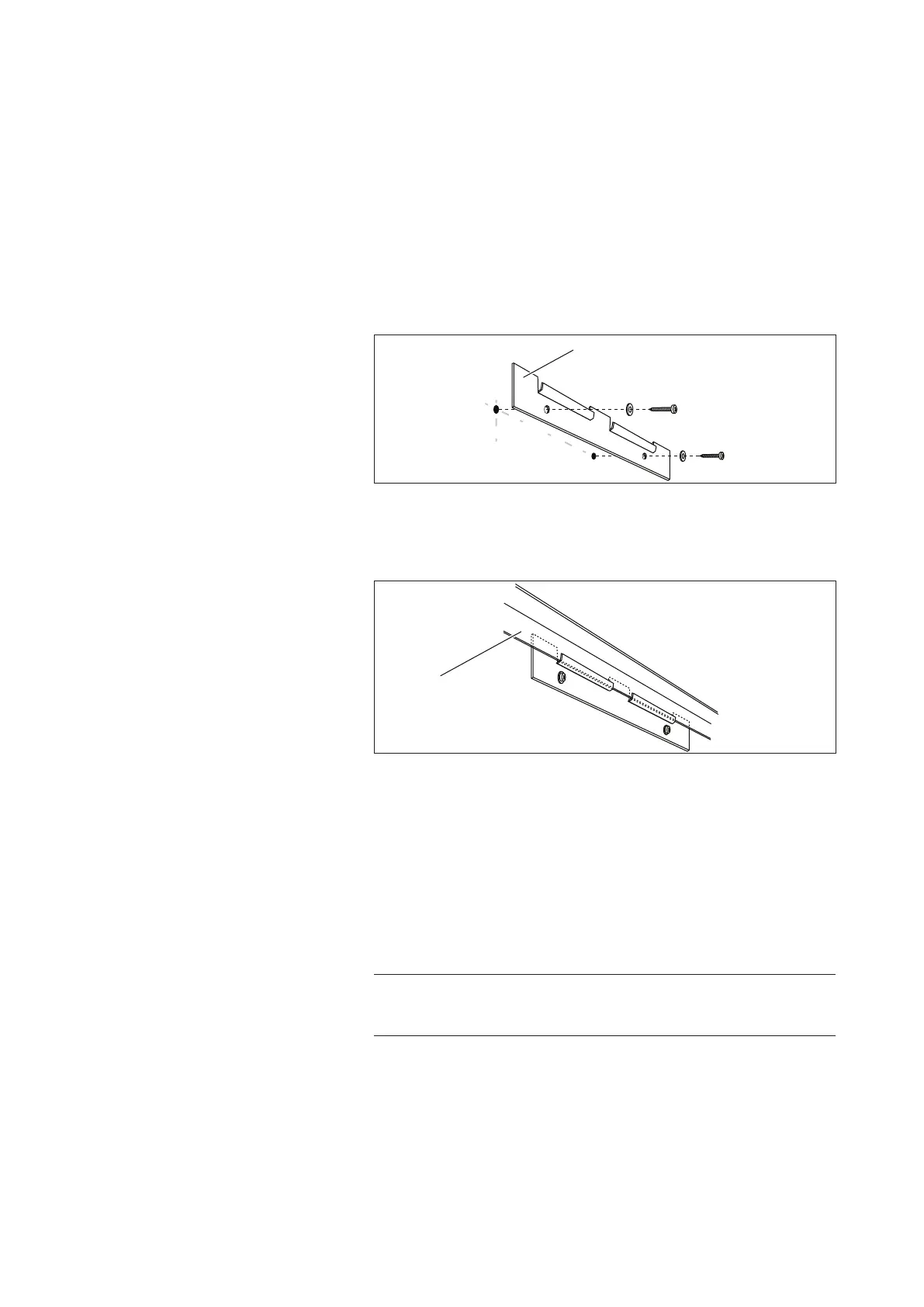

Figure 5. Installation of the wall bracket
4. Lift the machine and hook the beam (C) on the rear of the
machine onto the wall bracket.
002399
C
Figure 6. Hooking the machine
5. Check that the machine is vertical by putting a spirit level on
one of the sides of the machine.
6. Fix the bottom frame to the wall with screws.
7. Install the water trap to the waste outlet:
• Water trap connects from the rear (P-lock).
• The pipe diameter is 90 or 110 mm and should be able
to handle 1 liter per second.
Note!
Install the hose from the ventilator (option).
