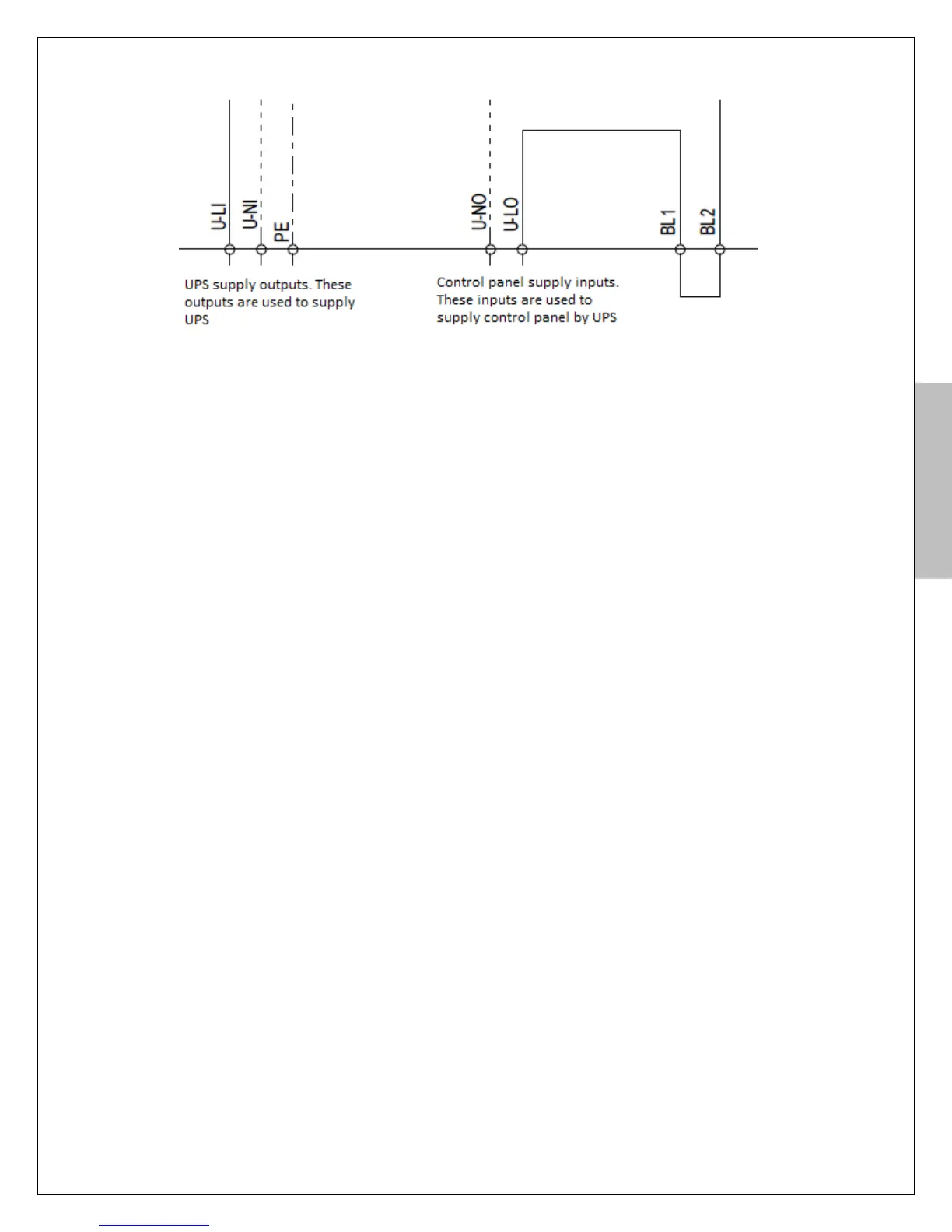

Figure-5: UPS connections
***If there is SERVOSAN brand UPS inside the control panel these connections are not used.
***If you do not have UPS you must bridge connectors U-LI with U-LO and U-NI with U-NO using with suitable cables.
Otherwise you can not run control panel.
