 “Maximum travel speed”, “inspection mode-
speed”and “recall speed” which is located in
“Travel curve settings” should be set
according to motor speed.
 The nominal speed which is written on motor
plate has to be used for parameter “Maximum
travel speed”.
 Parameter “Encoder type” which is located
under “Motor encoder Settings” should be
selected according to motor encoder type.
 If motor doesn’t have brake(s) microswithces
or it has but not connected, “Mechanical brake
monitoring” and “Mechanical brake-2
monitoring” should be selected “Off” which is
located “Protection and monitoring settings”
under parameter ”Other Protection Settings”.

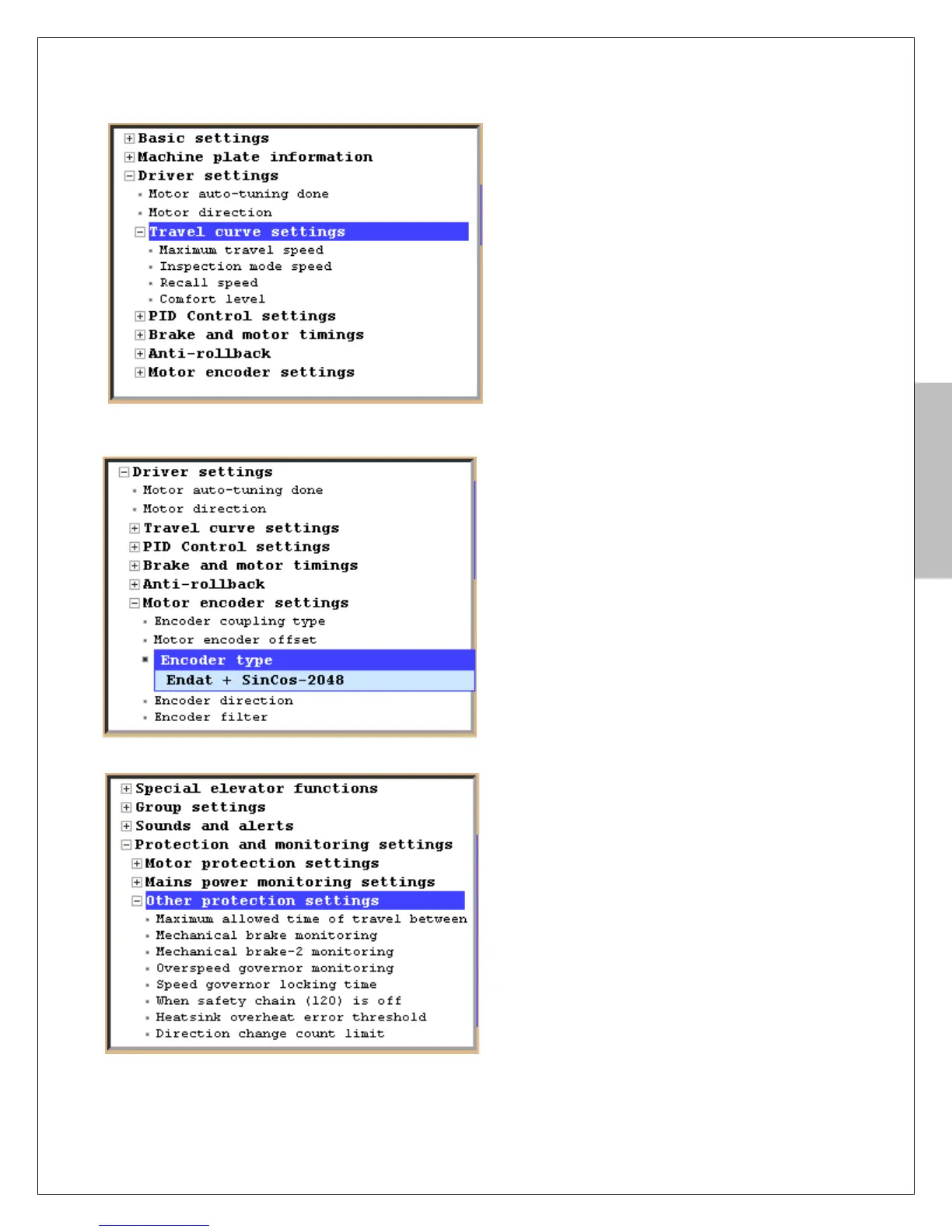

Figure-10b: “Travel Curve Settings”
Figure-10c: “Motor encoder settings”
Figure-10d: “Mechanical brake monitoring”
