ASCOM d41 User Manual

TD 92582GB
2009-12-15/ Ver. C
User Manual
Ascom d41 DECT Handset
7
3 Descriptions

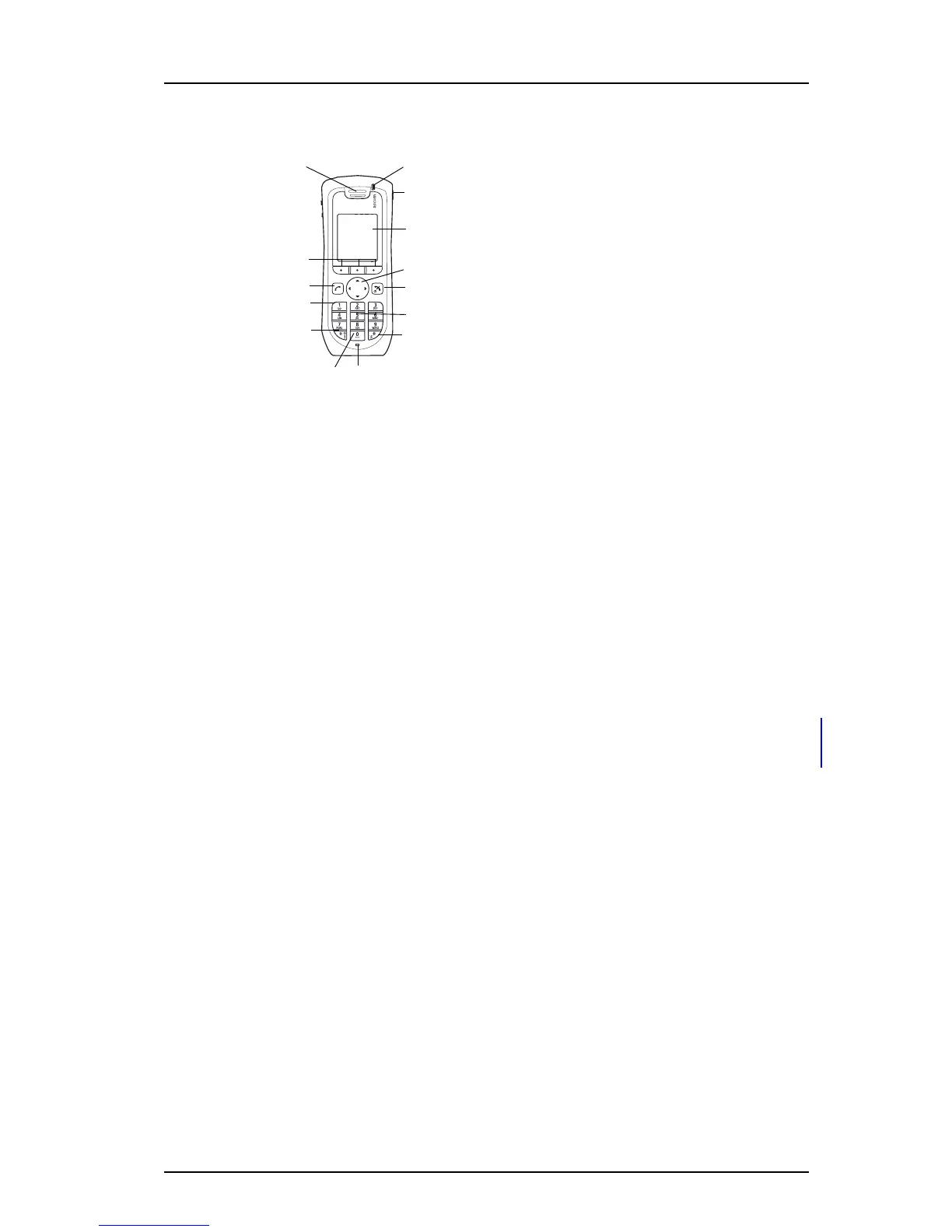

Figure 1. Description of the Handset d41
*System dependent feature
1 Earpiece speaker
2 Soft keys
The 3 Soft keys is used with GUI, that is, the functions of each Soft key is
indicated by text in the display just above the keys.
3 Off-hook key
To answer a call, to pre-dial a number, and as a short cut to the Call list.
4 Voice mail access*
A quick access to the handset’s Voice mail.
5 Key lock and Upper/Lower case
Combined key lock and Upper/Lower Case.
6Space
To add space between text.
7 Microphone
8 Sound off key
To turn on/off audible signals in idle mode, silencing the ring signal at incoming
call, and to turn the microphone on/off during a call.
9 Tactile indicators
There are two tactile indicators to indicate the centre of the key pad.
10 On-hook and On/Off key
Combined button; to end a call, to return to standby mode, and to switch the
handset on/off by long press.
11 Four-way navigation key
Navigation key with Left, Right, Up, and Down.
During a call, the keys Up and Down are used to increase and decrease the
speaker volume, respectively.
12 Display
The B/W display is 28 mm wide and 35 mm high with backlighting.
13 Headset connector
The headset connector is for connecting a headset. The connector is protected
against dust by using the headset connector cover.
14 LED
Indicates incoming call, messaging, low battery, and charging.
001
1
2
3
4
5
6
7
14
13
12
11
10
9
8

ASCOM d41 Specifications

General

Type	DECT telephone
Answering machine	No
Mounting type	-
Product color	Gray
Speakerphone	Yes
Phonebook capacity	500 entries
Languages support	CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, NOR, POL, POR, RUS, SLK, SWE, TUR
Standby time	180 h
Battery recharge time	4 h
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Number of handsets included	1

Weight and Dimensions

Depth	24 mm
Width	53 mm
Height	133 mm
