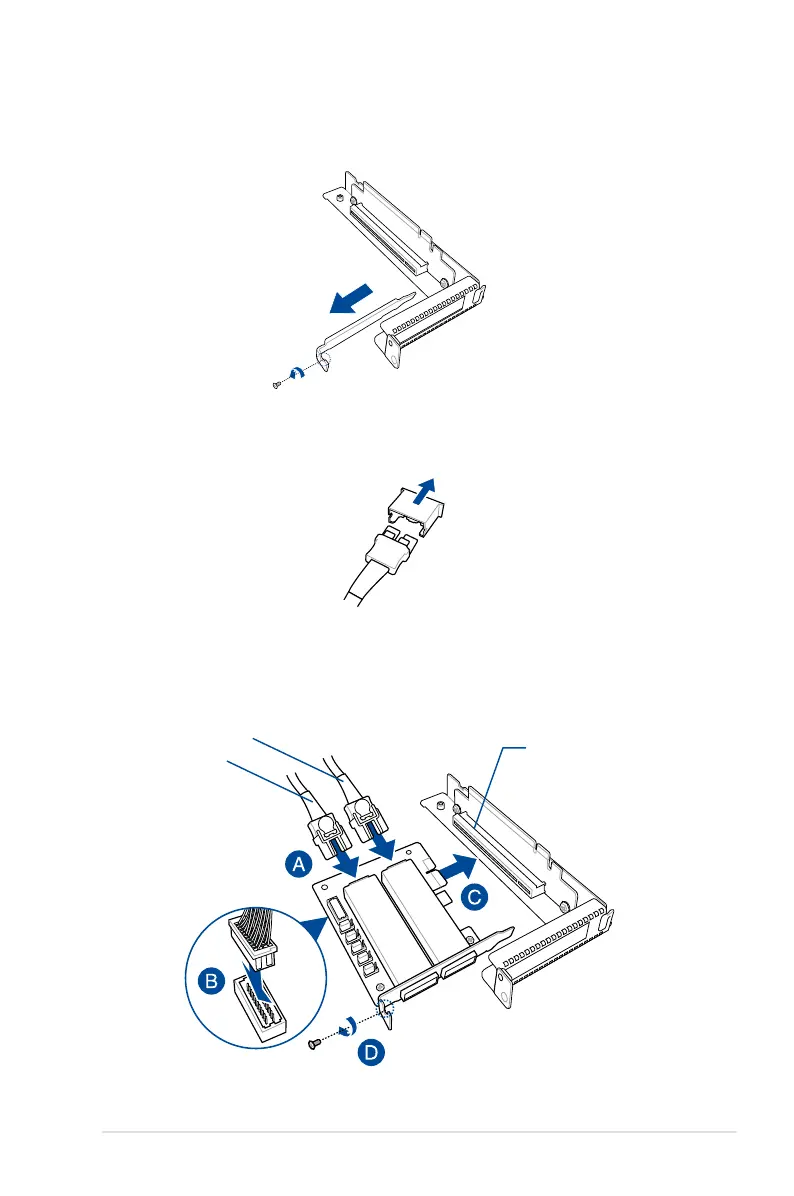

5. Prepare the ASUS HFI-OMNI card.
6. Remove the internal OMNI-PATH cable connector cap from the internal OMNI-PATH
cable.
7. Connect the internal OMNI-PATH cable (A) and the OMNIP cable to the ASUS HFI-
OMNI card (B), install the ASUS HFI-OMNI card into the x16 slot on the riser card (C),
then secure it with the screw (D).
PCIE x16 slot
P1
P2
1
2
4. Remove the screw from the metal bracket on the riser card, then remove the metal
brackets from the riser card.
