4. Names and Functions of Components

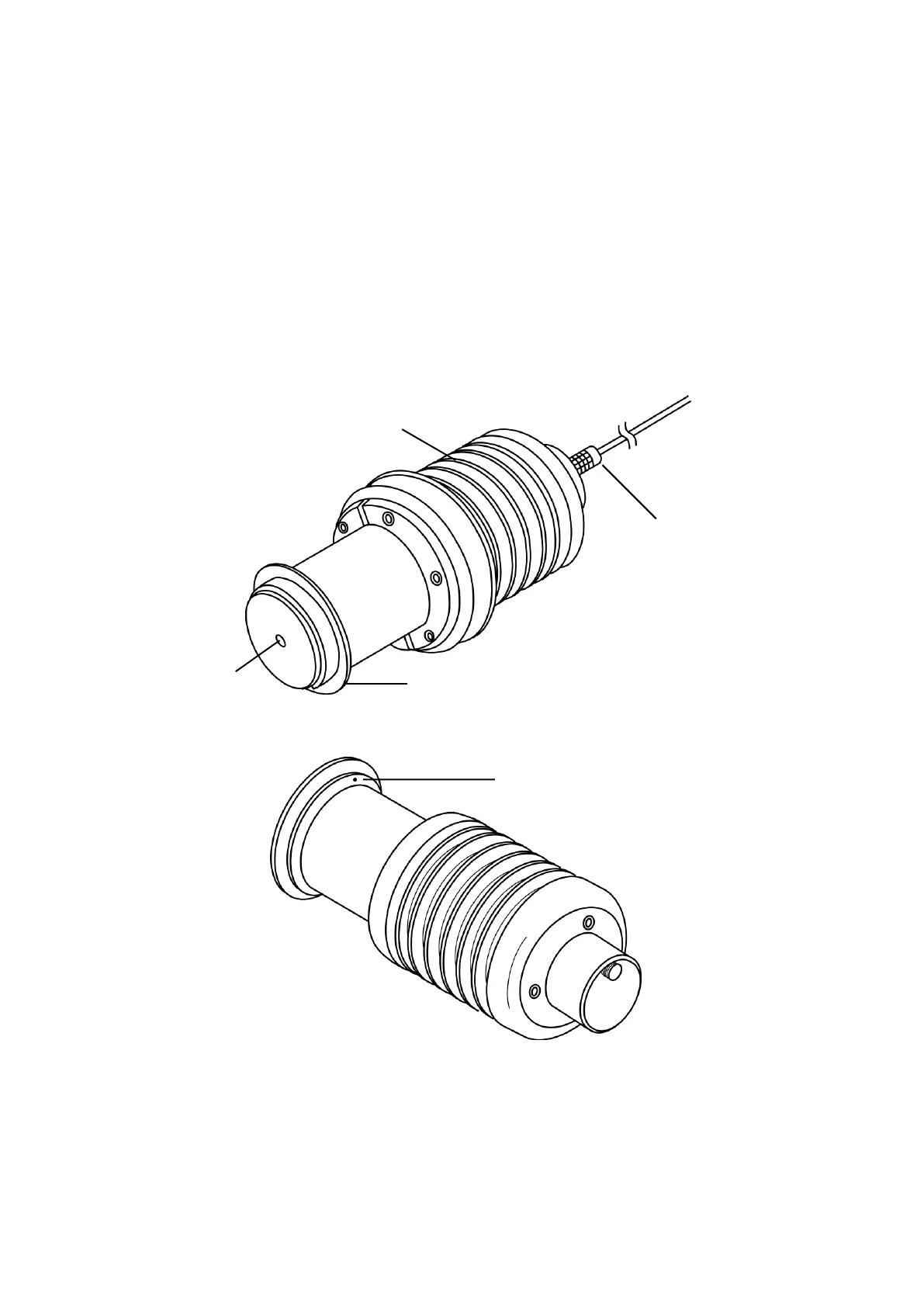

(1)Detection Section (Fig. 4-1 and Fig. 4-2)
①Prism
Sample material contacts the prism surface to allow for the measurement of its refractive index, Brix
and/or concentration.
②Sample inlet unit mounting part
Mount the sample inlet unit on this part.
③Detection section - Display section connection terminal
Connect the DS-2 cable to this terminal.
④Air cooling fin
Dissipates heat to preserve the unit's electronic components when measuring high temperature samples.
⑤Mark to show the position of the thermo sensor.
Fig. 4-1
Fig. 4-2
