(2)Display Section
(2-1) Operator section (Fig. 4-3)
①START/STOP key
Start or stops measurement (turning the
power on automatically begins
measurement).
②SCALE key
Chooses from among the measurement value
display modes nD (refractive index), Brix
(sucrose reading scale) and the SET UP mode.
③ENTER key
Used to carry out reference level adjustment
and manipulate the SET UP mode.
For operating instructions, see the respective
items.
④← → keys
Cursor movement keys.
Use to move the digit position when setting a
numerical value in the SET UP mode.
The cursor is positioned on the blinking digit.
⑤↑ ↓ keys
Numerical value change keys.
Use to change the numerical value in SET
UP mode.
⑥Measurement indicator
Indicates the current mode of measurement;
that is continuous or halted.
During use, the yellow light is blinks.
⑦SET UP mode indicator
Yellow light will be turned on at the SET UP
mode.
⑧H.over and L.over displays
If a high-limit or low-limit alarm is set in the SET
UP mode and then the high or low limit is
exceeded, the corresponding display
illuminates.
⑨Temperature display
Displays the temperature of the prism during
measurement.
⑩Measurement value display
Displays measurement or set value digitally.
⑪Mode display
Displays the mode in which numerical values
are shown on the measurement value display.

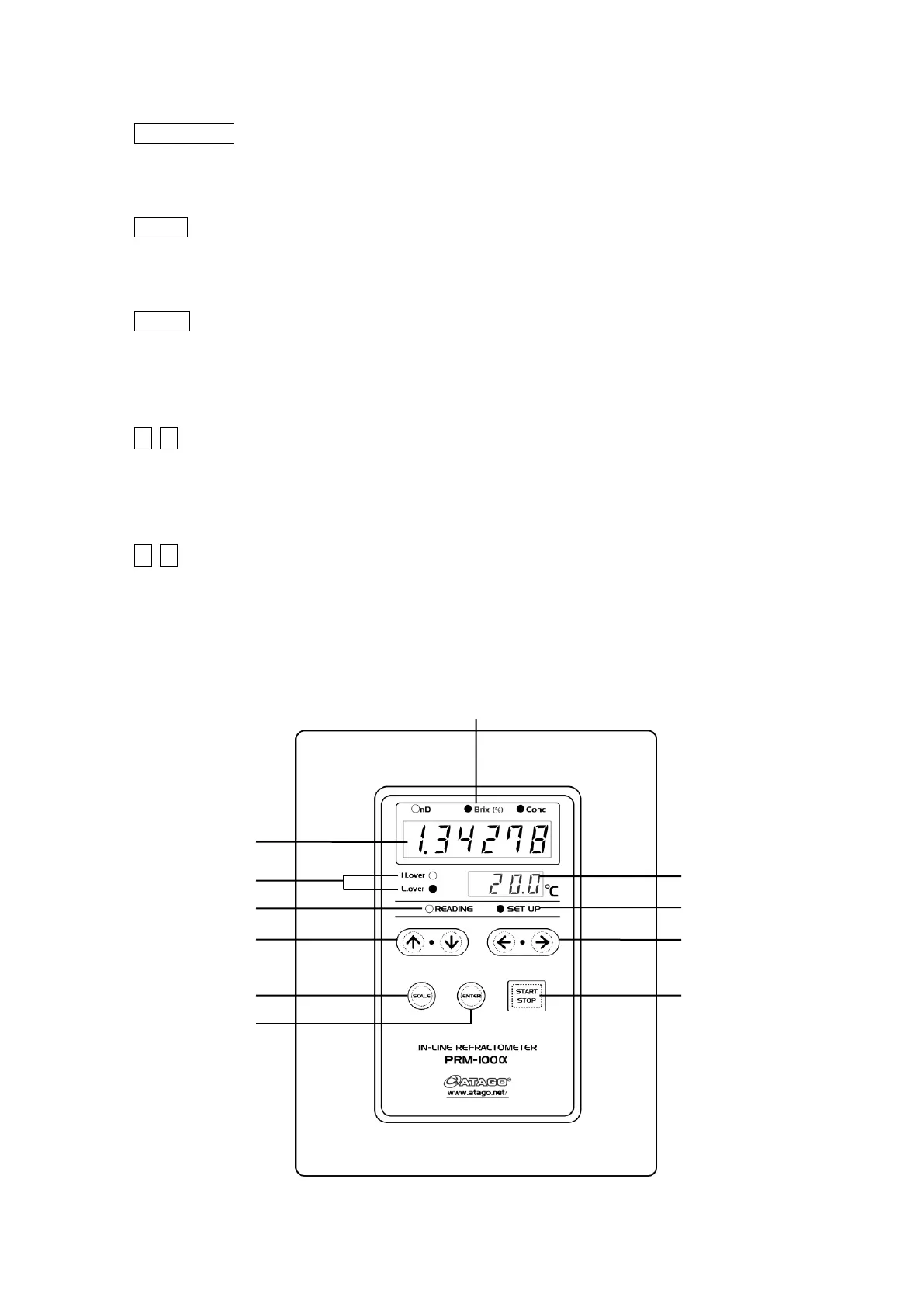

Calculation display section front view
Fig. 4-3
