5. Mounting the Detection Section
 WARNING
◇Turn the power switch on the display section to OFF and unplug it from the
AC outlet prior to mounting the detection section.
Mounting the detection section with the unit turned on may increase the
likelihood of electric shock.
 CAUTION
◇Make sure that the piping and equipment are clear of any fluid before
mounting the detection section on the piping and equipment.
(1)Types of Sample Inlet Unit (Fig. 5-1)
Two types of sample inlet units are available as pipe fittings: straight type and L type.
The straight type should be installed on straight sections of piping.
The L type inlet should serve as the joining piece for piping intended to align in an L shape (Fig. 5-4 on page
14).
There are three ways to connect a sample inlet to a pipe: IDF/ISO clamp union (ferrule), IDF/ISO screw
union (screw), and JIS Flange.
Other sample inlets available include small diameter series compression fitting (outer diameter 10mmφ)
and hose connector (outer diameter 12mmφ).

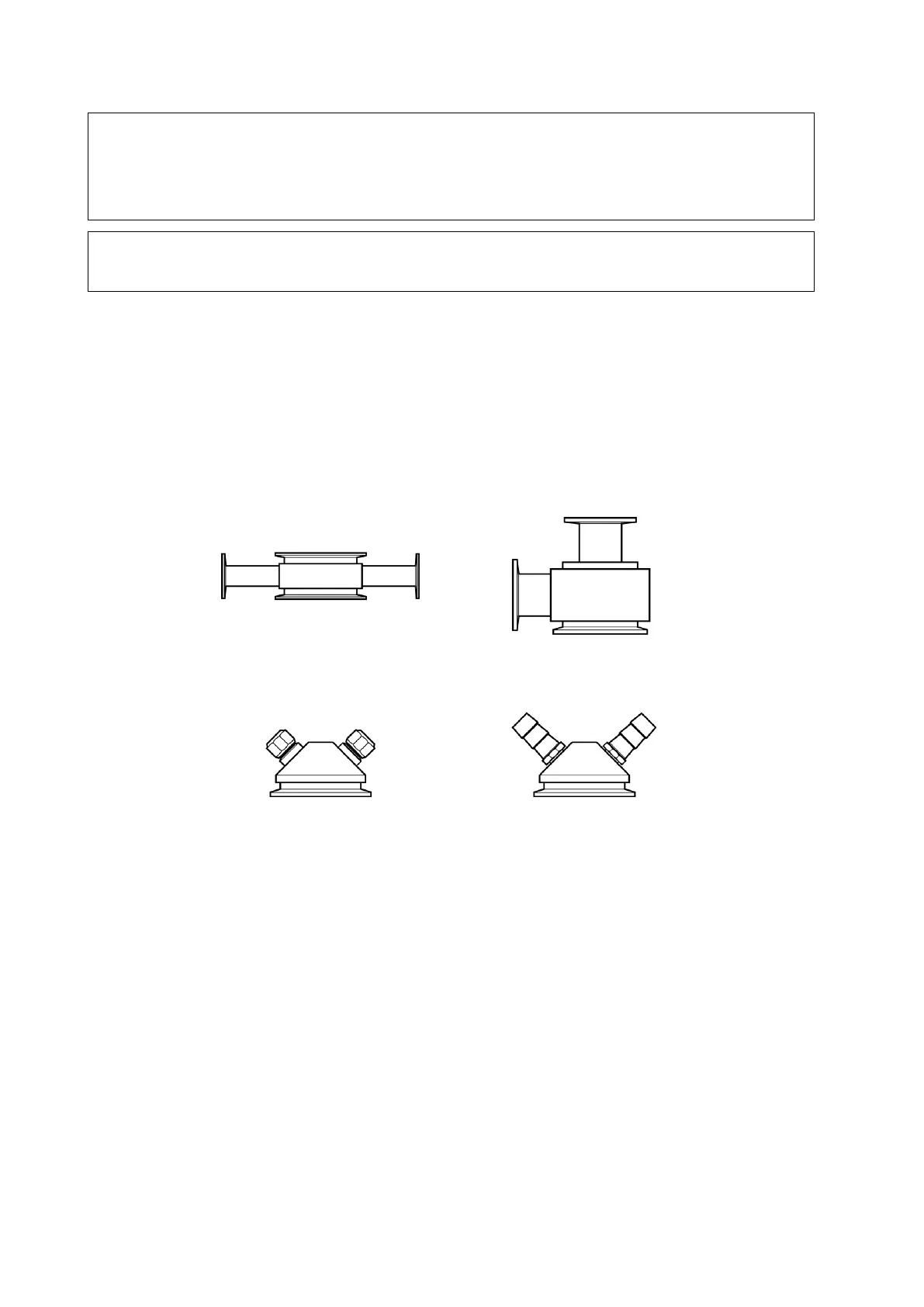

Fig. 5-1
Straight type
L type
Compression Fitting 10mmφ
Hose connector 12mmφ
