13

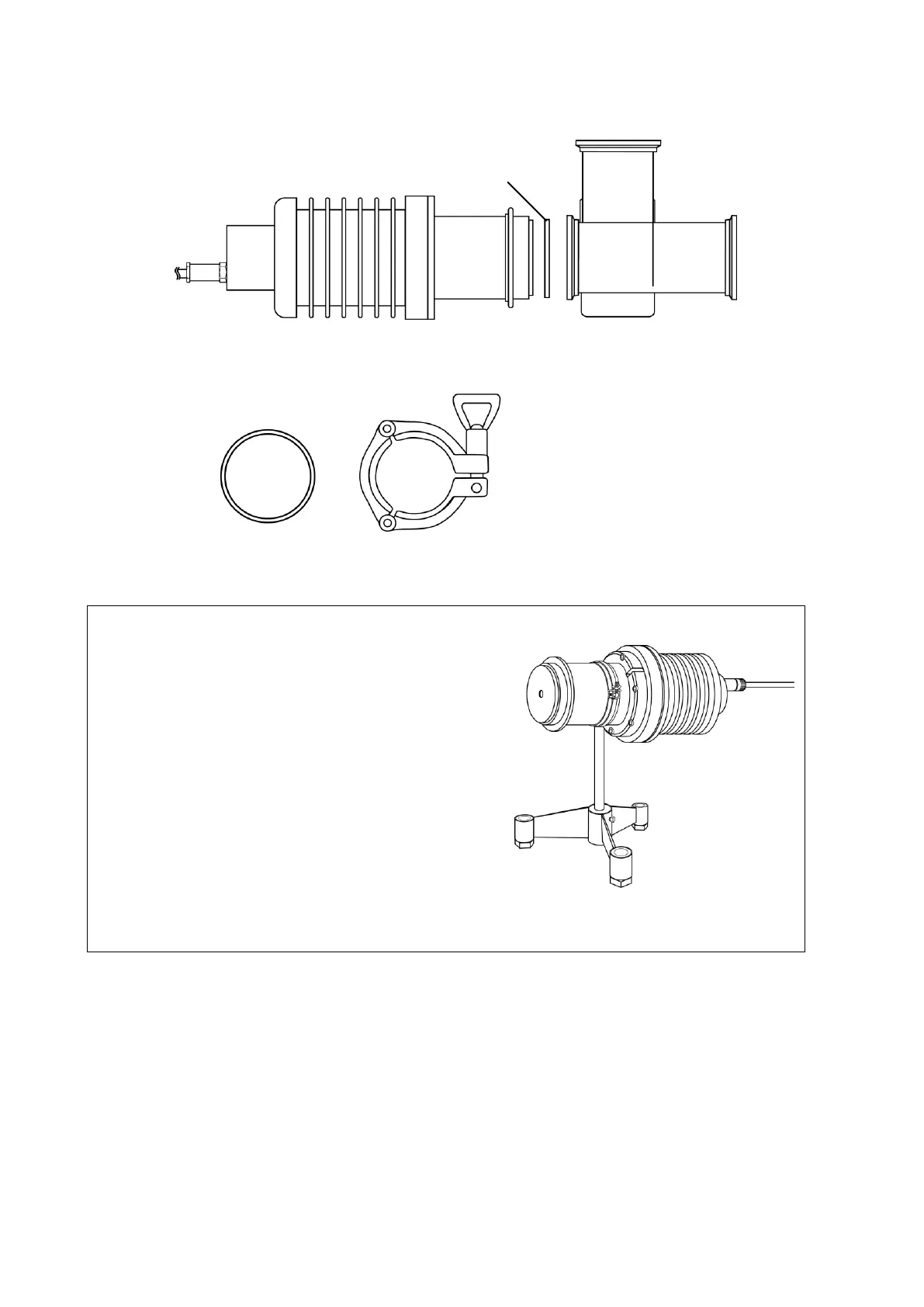

(2)Mounting the Sample Inlet Unit (Fig. 5-2)
Fit the sample inlet unit into the leading section of the detection part, and secure the sample inlet unit with
the attached clamp and O-ring provided.
Fig. 5-2
Support of detection section
Since the detection section weighs 3.2kg, it may not be
supported by connection with the sample inlet unit alone.
Therefore, support the detection section, as shown below.
If you cannot get the support, we will supply the following
parts.
Pipe hanger (RE-67157)
Hanger pin (RE-67156)
Stand (RE-67155)
For the support bar, prepare a pipe having an outer diameter
of 19.0mm and an inner diameter of 16.0 to 17.0mm.
Fig. 5-3
Clamp
O-ring (silicon or
EPDM)
O-ring
(silicon or
EPDM)
