3 Main parts
3.1 General description
The PNS 1250 Cud is a portable, three-stage screw compressor unit, which delivers oil-free air. The PNS 1250 Cud is built for a nominal effective working pressure of

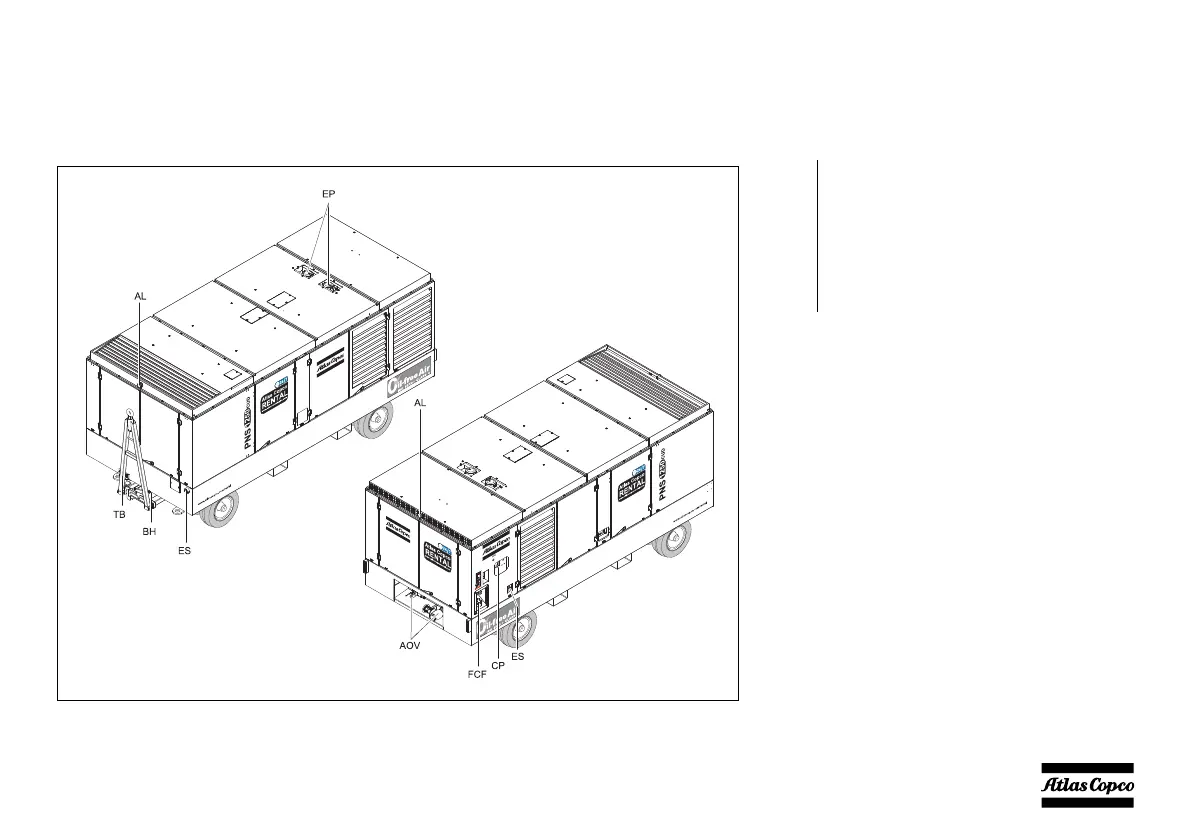

20 bar at 1800 rpm and 24 bar at 1750 rpm. An overview of the main parts is given in the diagram below.
AL Alarm lamp
AOV Air outlet valve
BH Brake handle
CP Control panel
EP Exhaust pipe
ES Emergency stop
FCF Filler cap fuel
TB Towbar
