3.4 Electrical features
The electrical features described in this chapter are
standard provided on this compressor.

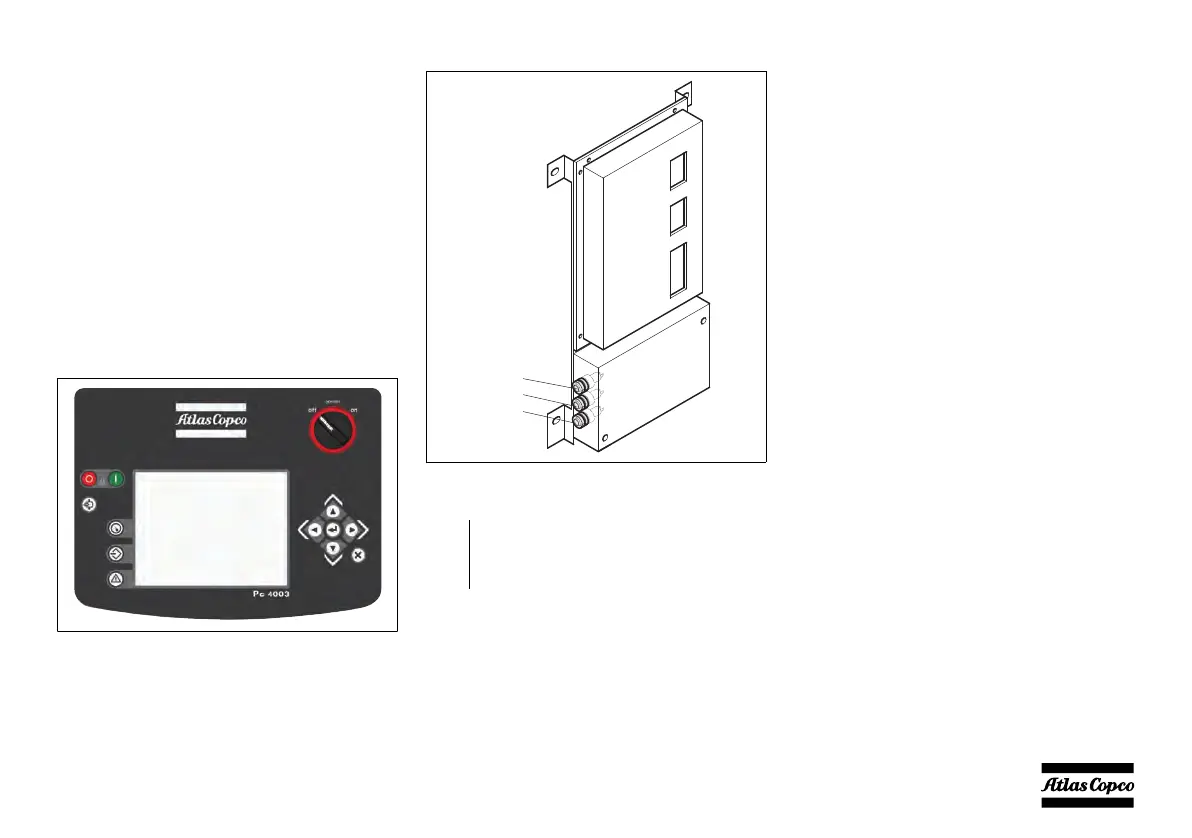

3.4.1 Pc4003™ controller
The Pc4003™ module is built in into the side of the
rear right corner panel, with an emergency stop button
directly underneath, for maximum safety during the
cranking procedure. It communicates with a display
unit, located in front of the control panel. The control
module will carry out all necessary tasks to control
and protect the compressor, regardless of the use of
the compressor
This means that the Pc4003™ module can be used for
several applications.
3.4.2 Fuses
The Pc4003™ is equipped with the following three
fuses:
Q1 Fuse 20 A ECM
Q2 Fuse 20 A Emergency stop
Q3 Fuse 10 A Main
Q1
Q2
Q3
