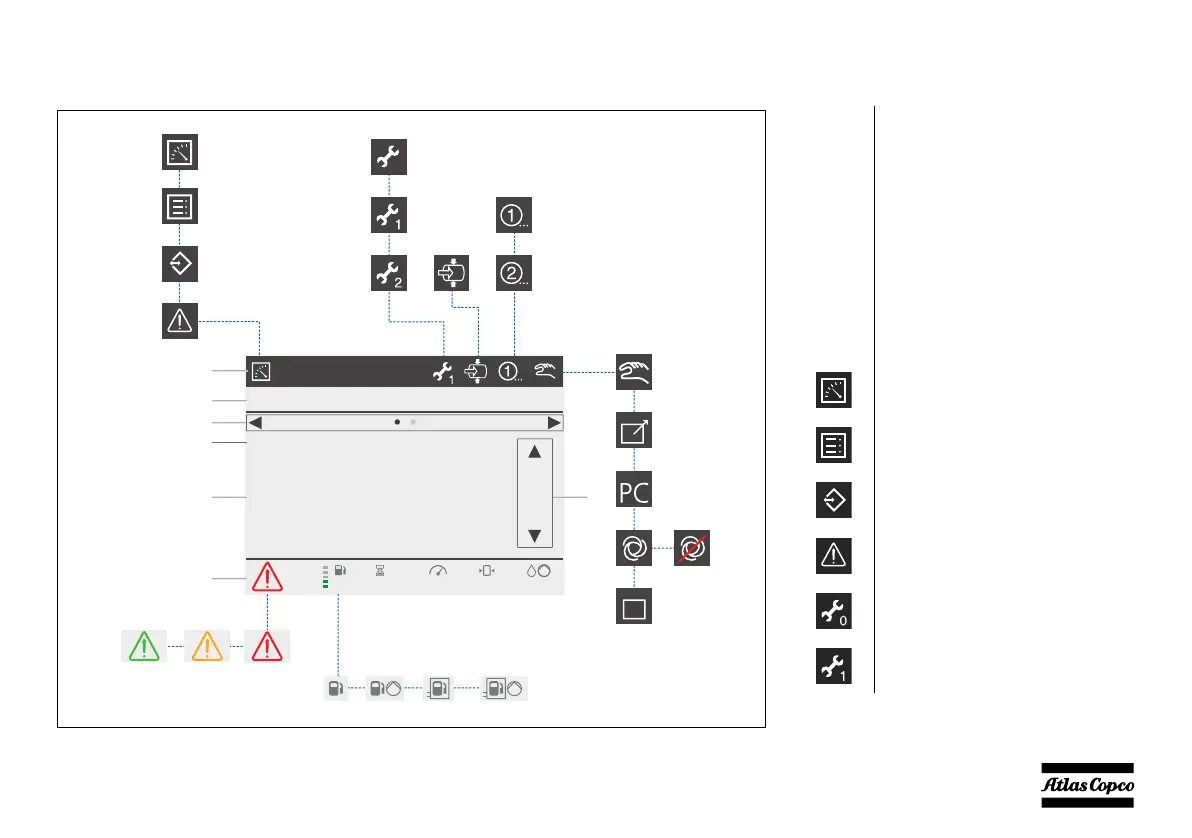

5.2.2 Pc4003™ display icons
Primary Main view
MAIN VIEW
LOADED
10.3 bar1300RPM1286h
2
3
4
1
5 6
7
0
10.2
bar
SET
10.3
bar
40%
AD PRESSURE LIMITING
1
View, Overhaul, Auto load, Preset,
Active operation mode indication
2
Active compressor status
3
Navigation: toggle between main view
and engine view
4
Regulator overrule indication
5
Regulator pressure value or info text
6
Set active pressure setpoint
7
Alarm indication and compressor info
Main view indication
Measuring view indication
Settings view indication
Alarm view indication
OVERHAUL
Initial Overhaul required.
OVERHAUL
Minor Overhaul required.
