- 45 -
When the controller is waiting for the STOP
DETECTION ‘MINIMUM START DELAY’ to
elapse, an additional timer is shown on the display:
When the STOP SEQUENCE has been completely
terminated, the engine will stop. The controller will
always double check to make sure that the engine has
really stopped.
5.2.7 Shutdown
When the machine is shut down due to a critical alarm
or an emergency stop, the following view is shown.
5.2.8 Power off
The compressor is equipped with a battery switch.
When the compressor is not in use, this switch must
always be in the "OFF" position.

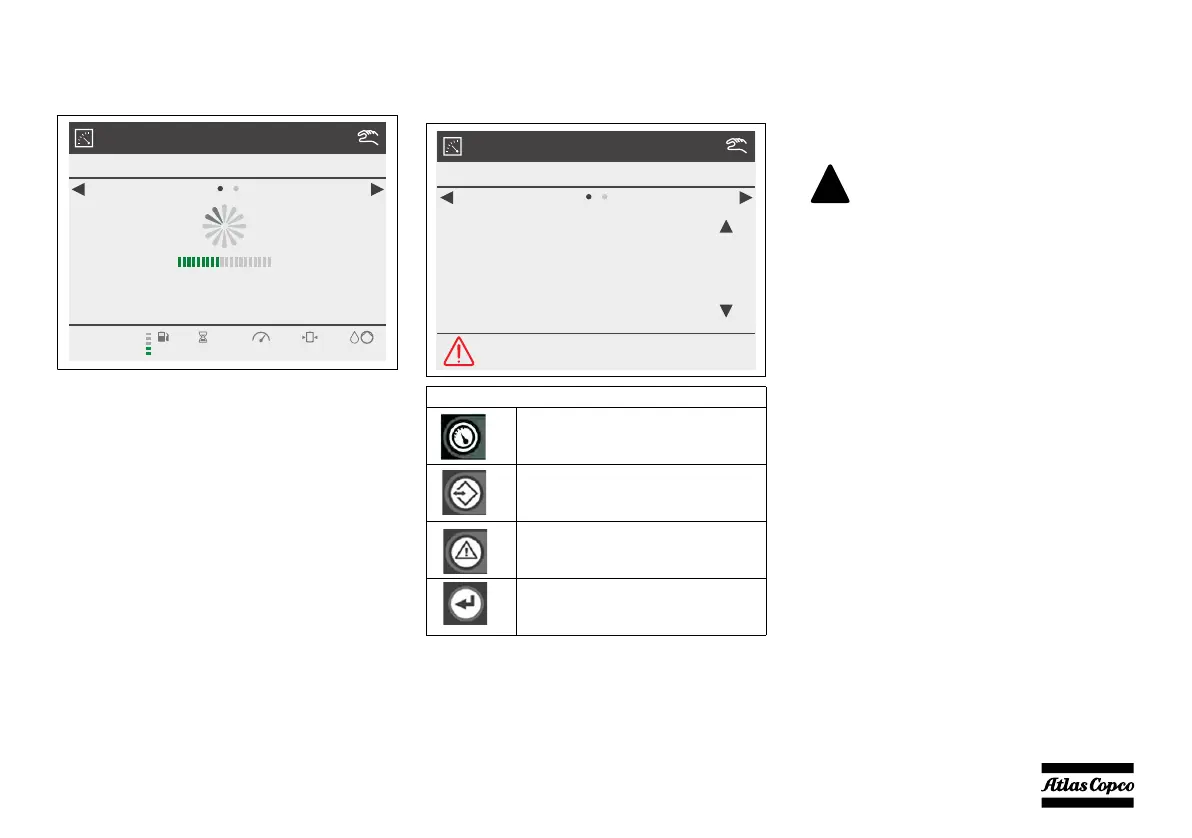

MAIN VIEW
ENGINE STOPPING - DO NOT SWITCH OFF BATTERY
10.3 bar0RPM1286h
180s
74s
0s
40%
Active Buttons:
Measurement View Button
Settings View Button
Alarms View Button
Enter Button
(to acknowledge the shown alarm))
MAIN VIEW
SHUTDOWN
0.0
bar
SET
10.3
bar
2000 EMERGENCY STOP
Never use the battery switch for
stopping, as this can cause damage
in the Pc4003™ or the engine's
Electronic Control Unit.
Always first shut off the Pc4003™
and wait until the display is dark
before switching the battery switch
to the OFF position.
