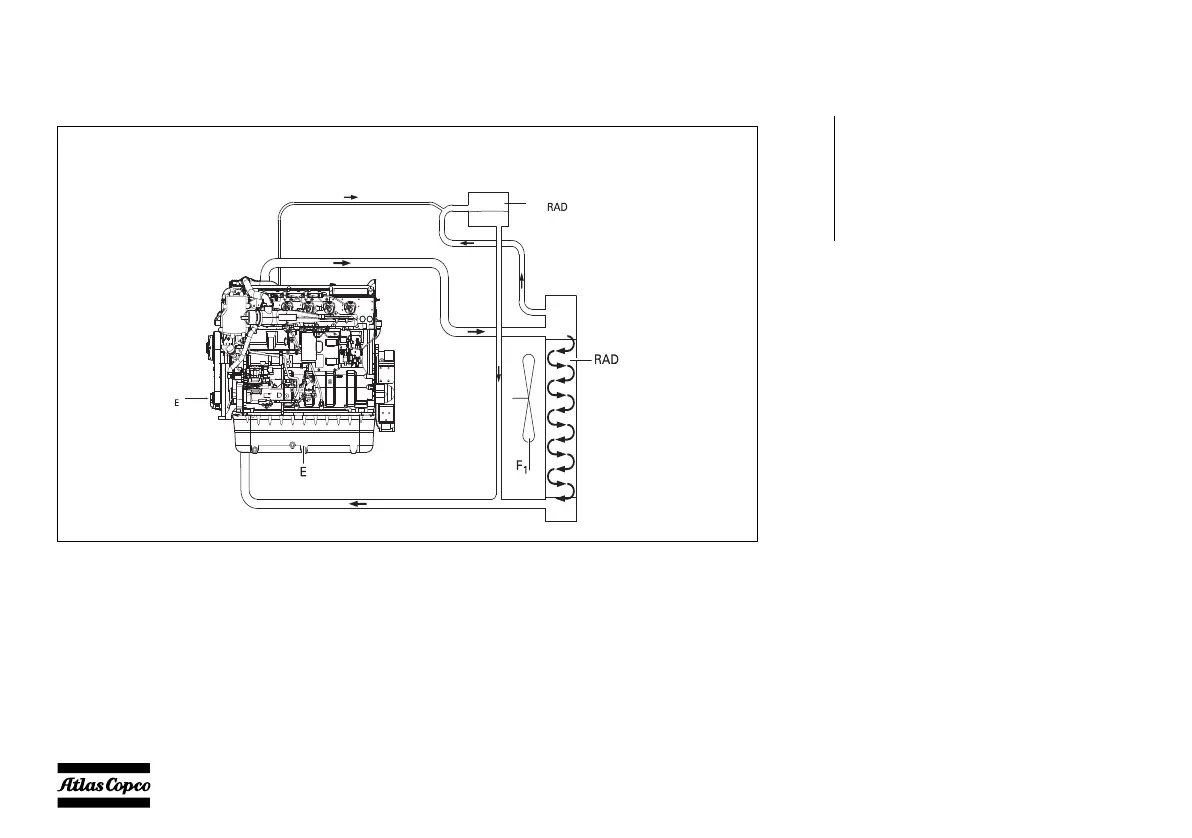

3.5.4 Water system
Overview
EEngine
F
1
Cooling fan 1 (RAD, IC, AC
1
, OC)
RAD Radiator
TT
RAD
Top tank (radiator)
WP
E
Engine water pump (radiator)
Description
The water system contains a coolant flow to cool the
engine’s cylinders.
The coolant is circulated by the engine water pump
(WP
E
), seated on the front of the engine (E). When the
coolant returns from the engine, it passes through the
radiator (RAD), which is air-cooled by the cooler fan
(F
1
).
The radiator top tank (TT
RAD
) supplies the coolant to
the system and gives the coolant in the system room to
expand.
TT
WP
RADIATOR
