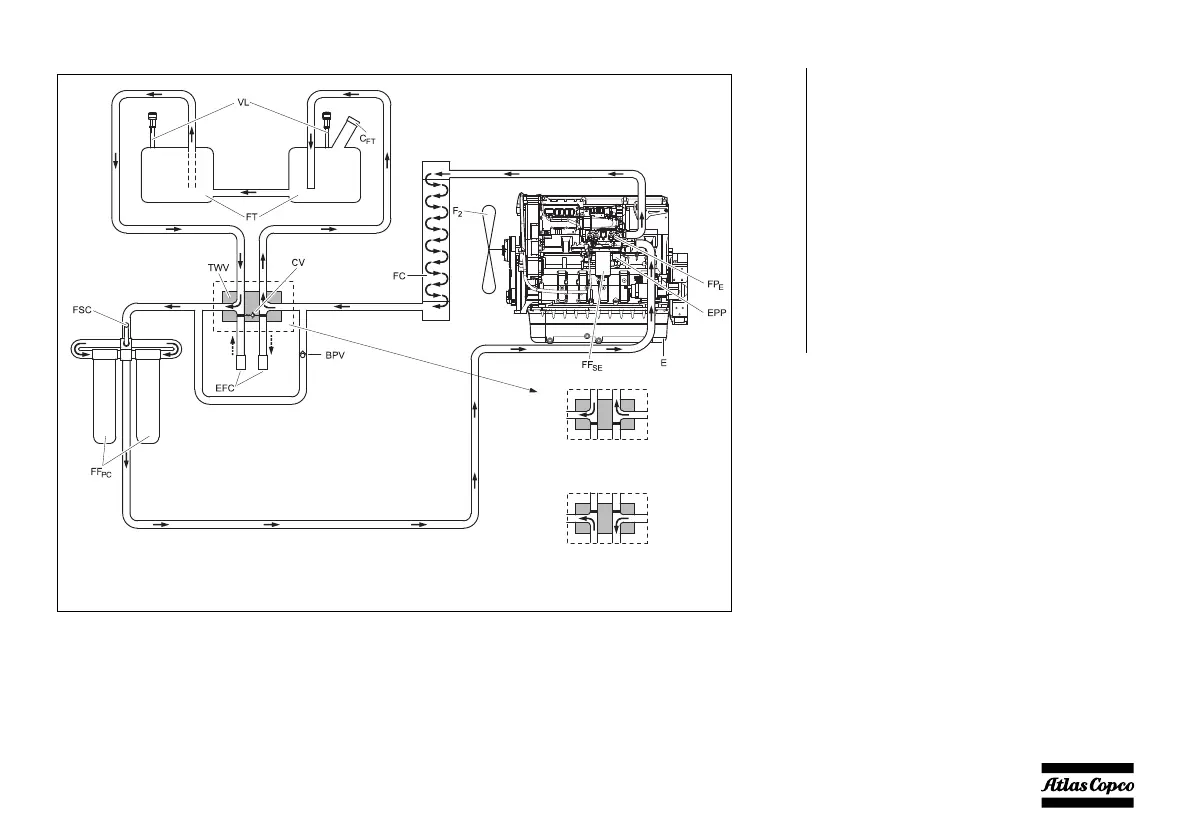

Overview
BPV Bypass valve
C
FT
Filler cap (fuel tank)
CV Check valve
EEngine
EFC External fuel supply coupling
EPP Electrical priming pump
F
2
Cooling fan 2 (AC
2
, CAC/FC)
FC Fuel cooler
FF
PC
Primary coarse fuel filter / water separator
FF
SE
Secondary engine fuel filter
FP
E
Engine fuel pump
FSC Fuel shut-off cock
FT Fuel tank
TWV 3-way valve
VL Venting line
fuel selector in
horizontal position
(internal)
fuel selector in
vertical position
(external)
