Atlas Copco PNS 1250 Cud S3A/T3 APP - Automatic Fire Suppression System

- 49 -

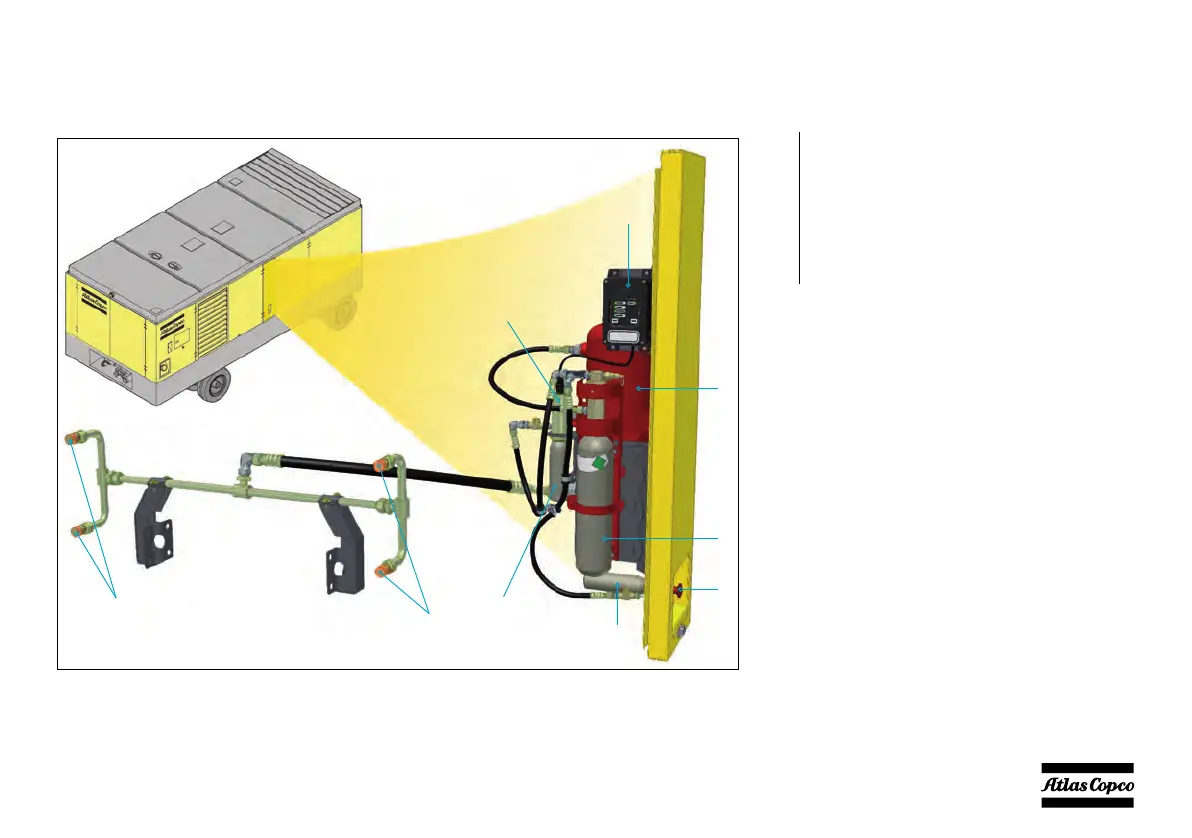

5.3 Operating the automatic fire suppression system
5.3.1 Main components
1 Control module
2 Cylinder with extinguishing powder
3 Large nitrogen cylinder
4 Manual actuator
5 Small nitrogen cylinder
6 Small nitrogen cylinder
7Nozzles
8 Automatic actuator
1
5
6
7
7
2
3
4
8
