4. Press the LOAD button.
The loading valve is energized and pressure starts
building up.
While loading the following display is shown
(default display).
During the LOADED SEQUENCE, the RPM
SETPOINT continuously follows the
CALCULATED RPM value (if applicable).
5.2.6 Stopping
Press the STOP button.
The engine will go into COOLDOWN SEQUENCE.

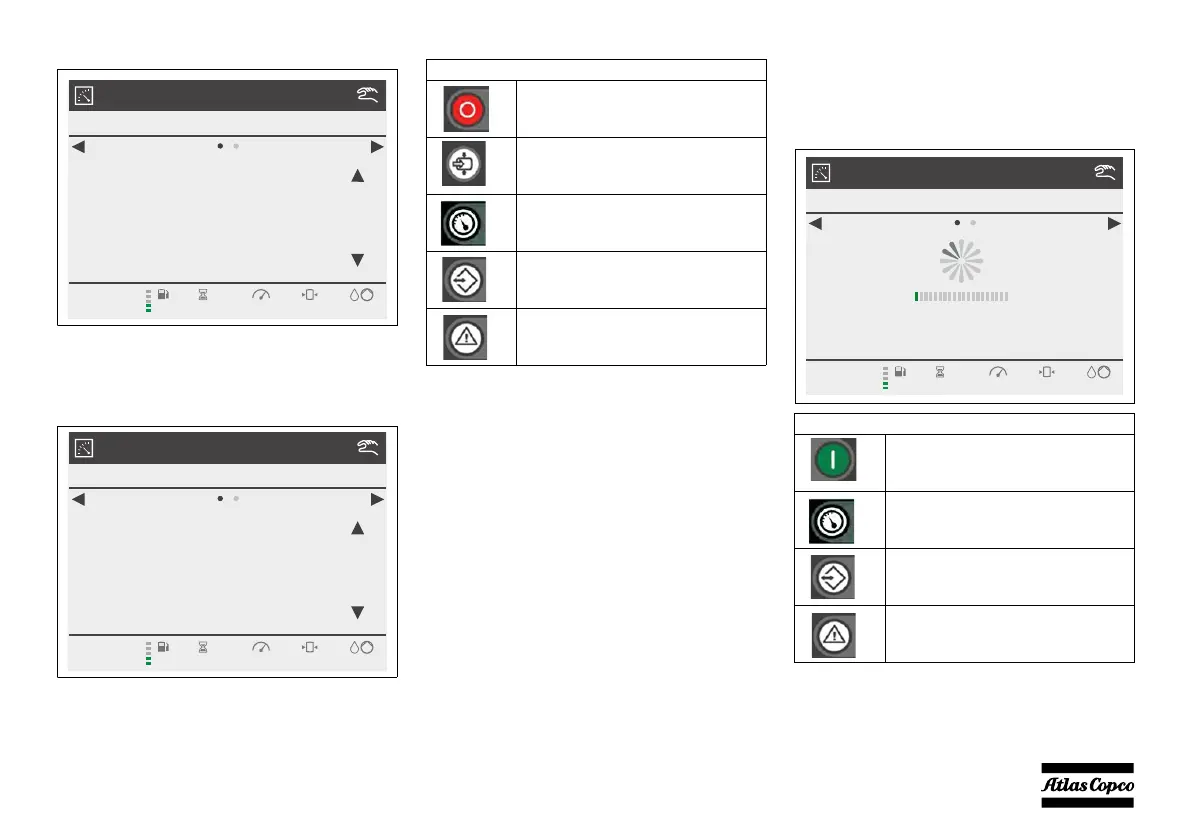

The following view is shown.
MAIN VIEW
PREPARING TO LOAD
1.2 bar1650RPM1286h
1.2
bar
SET
10.3
bar
40%
MAIN VIEW
LOADED - AIR DISCHARGE PRESSURE REGULATION
10.3 bar1484RPM1286h
10.3
bar
SET
10.3
bar
40%
Active Buttons:
Stop Button
(to initiate Stop command)
Load Button
(to activate Automatic Load)
Measurement View Button
Settings View Button
Alarms View Button
Active Buttons:
Start Button
(to initiate Start command)
Measurement View Button
Settings View Button
Alarms View Button
MAIN VIEW
ENGINE COOLING DOWN
8.4 bar1200RPM1286h
180s
1s
0s
40%
